CNC VERTICAL MACHINING CENTERS: TAKISAWA MAC-V4 CNC MILL, FANUC 6MB, 40 x 20 x 19, 7000 RPM, '86 (4116)


TAKISAWA MAC-V4 CNC MILL, FANUC 6MB, 40 x 20 x 19, 7000 RPM, '86 (4116)

Stock Number: 4116

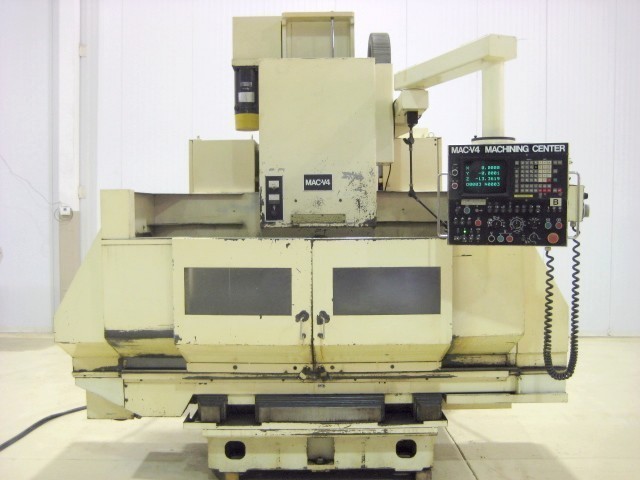

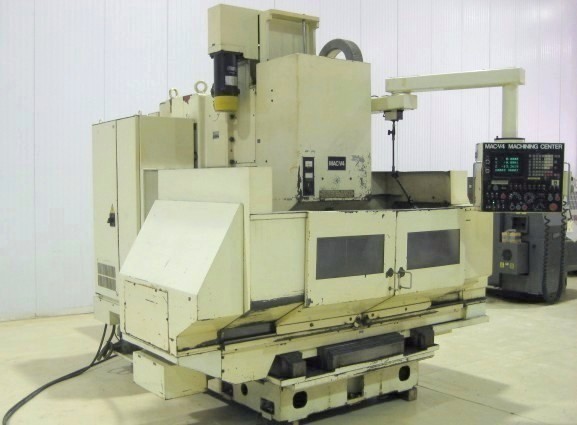

CNC VERTICAL MACHINING CENTERS: TAKISAWA MAC-V4 CNC MILL, FANUC 6MB, 40 x 20 x 19, 7000 RPM, '86 (4116), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: TAKISAWA MAC-V4 CNC MILL, FANUC 6MB, 40 x 20 x 19, 7000 RPM, '86 (4116), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: TAKISAWA MAC-V4 CNC MILL, FANUC 6MB, 40 x 20 x 19, 7000 RPM, '86 (4116), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: TAKISAWA MAC-V4 CNC MILL, FANUC 6MB, 40 x 20 x 19, 7000 RPM, '86 (4116), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: TAKISAWA MAC-V4 CNC MILL, FANUC 6MB, 40 x 20 x 19, 7000 RPM, '86 (4116), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: TAKISAWA MAC-V4 CNC MILL, FANUC 6MB, 40 x 20 x 19, 7000 RPM, '86 (4116), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4116 CNC VERTICAL MACHINING CENTERS: TAKISAWA MAC-V4 CNC MILL, FANUC 6MB, 40 x 20 x 19, 7000 RPM, '86 (4116)Request a quote on stock# 4116
SpecificationDescription
DATE OF MANUFACTURE10/1985
TABLE SIZE55" x 22"
MAXIMUM TABLE LOAD1,100 LBS
SPINDLE NOSE TO TABLE TOP7" - 27"
X AXIS TRAVEL40"
Y AXIS TRAVEL19.7"
Z AXIS TRAVEL18.7"
RAPID TRAVERSE RATE X & Y AXES472 IPM
RAPID TRAVERSE RATE Z AXIS393 IPM
CUTTING FEED RATE0.1 - 157.5 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS70 - 7,000 RPM

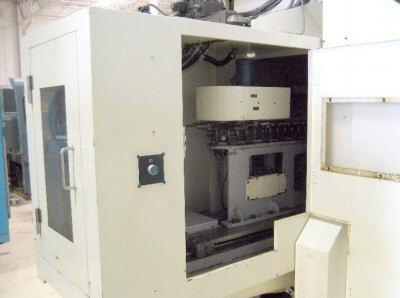

TOOL CHANGER CAPACITY24 STATIONS
MACHINE WEIGHT, APPROX.12,000 LBS
FLOOR SPACE, APPROX.122" x 109" x 109"

Equipped With:

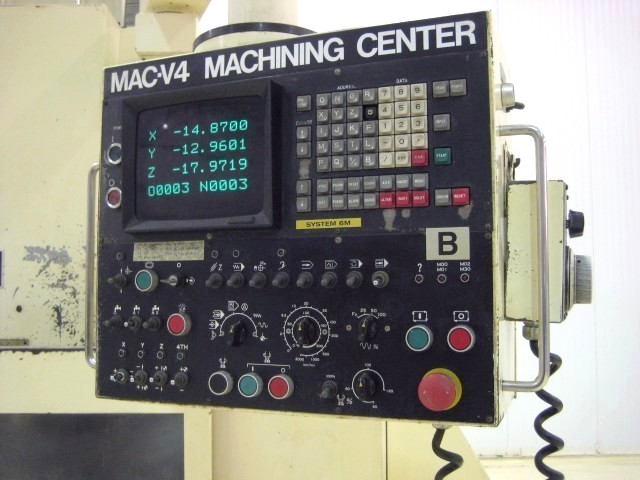

FANUC 6MB CNC CONTROL W/9" MONOCHROME CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
TWIN INTERNAL CHIP AUGERS FOR CHIP REMOVAL
STANDARD COOLANT SYSTEM W/TANK & PUMP
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
**RIGID BOX WAY CONSTRUCTION**
***VIDEO AVAILABLE UPON REQUEST***
SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
