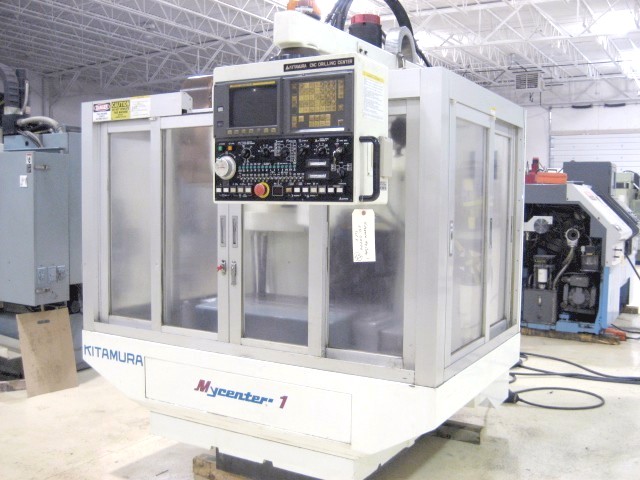

CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 1, FANUC OMC, 20 x 14 x 16, 13000 RPM, RIGID TAP, '97 (4083)

KITAMURA MYCENTER 1, FANUC OMC, 20 x 14 x 16, 13000 RPM, RIGID TAP, '97 (4083)

Stock Number: 4083

CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 1, FANUC OMC, 20 x 14 x 16, 13000 RPM, RIGID TAP, '97 (4083), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 1, FANUC OMC, 20 x 14 x 16, 13000 RPM, RIGID TAP, '97 (4083), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 1, FANUC OMC, 20 x 14 x 16, 13000 RPM, RIGID TAP, '97 (4083), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 1, FANUC OMC, 20 x 14 x 16, 13000 RPM, RIGID TAP, '97 (4083), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 1, FANUC OMC, 20 x 14 x 16, 13000 RPM, RIGID TAP, '97 (4083), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 1, FANUC OMC, 20 x 14 x 16, 13000 RPM, RIGID TAP, '97 (4083), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4083 CNC VERTICAL MACHINING CENTERS: KITAMURA MYCENTER 1, FANUC OMC, 20 x 14 x 16, 13000 RPM, RIGID TAP, '97 (4083)Request a quote on stock# 4083
SpecificationDescription
INSTALLED NEW10/1997
TABLE SIZE14" x 30.9"
MAXIMUM TABLE LOAD528 LBS
SPINDLE NOSE TO TABLE TOP5" - 20.9"
X AXIS TRAVEL20"
Y AXIS TRAVEL14"
Z AXIS TRAVEL16"
RAPID TRAVERSE RATE X & Y AXES1417 IPM
RAPID TRAVERSE RATE Z AXIS1181 IPM
CUTTING FEED RATE0 - 590 IPM
SPINDLE TAPERBT 35
SPINDLE SPEEDS300 - 13,000 RPM
SPINDLE MOTOR7.5 HP AC
TOOL CHANGER CAPACITY20 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL)1.2 SECONDS
APPROX. DIMENSIONS68" x 68" x 106"
MACHINE WEIGHT8,500 LBS

Equipped With:
FANUC OMC CNC CONTROL WITH 9" MONOCHROME CRT,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
DAIKIN SPINDLE CHILLER,
FULLY ENCLOSED SPLASH GUARDING/ENCLOSURES,
STANDARD COOLANT SYSTEM, ALL AVAILABLE MANUALS,

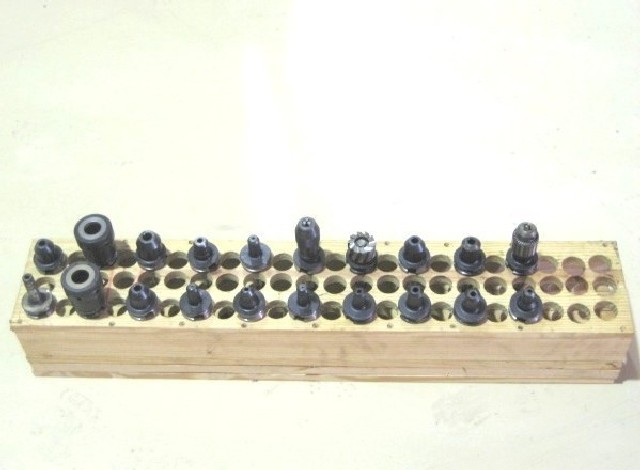

***20 TOOL HOLDERS INCLUDED***
****VIDEO AVAILABLE UPON REQUEST****

SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
