CNC VERTICALS: FADAL VMC-4020 APC, CNC-88HS, 40 x 20 x 20, 10000 RPM, APC, HYROSWP, CHILLER, '97 (3984)

FADAL VMC-4020 APC, CNC-88HS, 40 x 20 x 20, 10000 RPM, APC, HYROSWP, CHILLER, '97 (3984)

Stock Number: 3984

Age: 1997

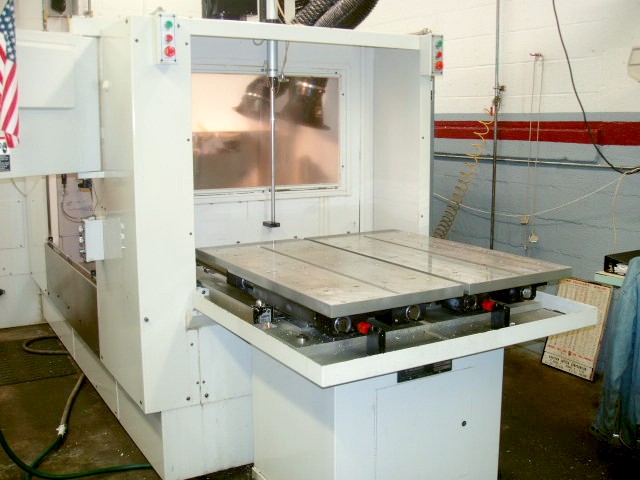

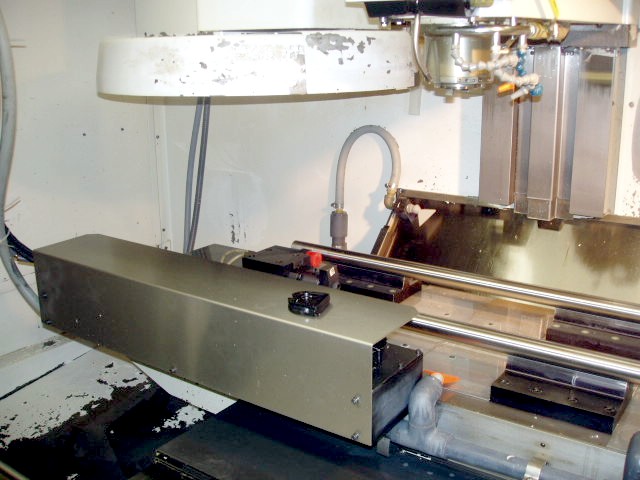

CNC VERTICALS: FADAL VMC-4020 APC, CNC-88HS, 40 x 20 x 20, 10000 RPM, APC, HYROSWP, CHILLER, '97 (3984), Click to view larger photo...       CNC VERTICALS: FADAL VMC-4020 APC, CNC-88HS, 40 x 20 x 20, 10000 RPM, APC, HYROSWP, CHILLER, '97 (3984), Click to view larger photo...       CNC VERTICALS: FADAL VMC-4020 APC, CNC-88HS, 40 x 20 x 20, 10000 RPM, APC, HYROSWP, CHILLER, '97 (3984), Click to view larger photo...       CNC VERTICALS: FADAL VMC-4020 APC, CNC-88HS, 40 x 20 x 20, 10000 RPM, APC, HYROSWP, CHILLER, '97 (3984), Click to view larger photo...       CNC VERTICALS: FADAL VMC-4020 APC, CNC-88HS, 40 x 20 x 20, 10000 RPM, APC, HYROSWP, CHILLER, '97 (3984), Click to view larger photo...       CNC VERTICALS: FADAL VMC-4020 APC, CNC-88HS, 40 x 20 x 20, 10000 RPM, APC, HYROSWP, CHILLER, '97 (3984), Click to view larger photo...       CNC VERTICALS: FADAL VMC-4020 APC, CNC-88HS, 40 x 20 x 20, 10000 RPM, APC, HYROSWP, CHILLER, '97 (3984), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 3984 CNC VERTICALS: FADAL VMC-4020 APC, CNC-88HS, 40 x 20 x 20, 10000 RPM, APC, HYROSWP, CHILLER, '97 (3984)Request a quote on stock# 3984
SpecificationDescription
DATE OF MANUFACTURE1997
PALLET SIZE48" x 20"
NUMBER OF PALLETS2
MAXIMUM PALLET LOAD1,000 LBS
SPINDLE NOSE TO PALLET TOP4" - 24"
X AXIS TRAVEL40"
Y AXIS TRAVEL20"
Z AXIS TRAVEL20"
RAPID TRAVERSE RATE X, Y & Z AXES600 IPM
CUTTING FEED RATE0.1 - 300 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS0 - 10,000 RPM
SPINDLE MOTOR15 HP
TOOL CHANGER CAPACITY32 STATION ATC
MAXIMUM TOOL WEIGHT15 LBS
MACHINE WEIGHT13,000 LBS
APPROXIMATE DIMENSIONS160" x 90" x 114"

Equipped With:
FADAL CNC-88HS CONTROL W/9" MONOCHROME CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
FACTORY INSTALLED AUTOMATIC 2-PALLET CHANGER
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
EXTENDED SIZE 32 POCKET AUTO TOOL CHANGER
HYDRO-SWEEP CHIP REMOVAL SYSTEM W/PUMP
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS

SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
