CNC VERTICALS: FAMUP MCP-60E, HEIDENHEIN, 24 x 16 x 22, PALLETS, TWIN INDEXER, '99 (3843)

FAMUP MCP-60E, HEIDENHEIN, 24 x 16 x 22, PALLETS, TWIN INDEXER, '99 (3843)

Stock Number: 3843

Age: 1999

CNC VERTICALS: FAMUP MCP-60E, HEIDENHEIN, 24 x 16 x 22, PALLETS, TWIN INDEXER, '99 (3843), Click to view larger photo...       CNC VERTICALS: FAMUP MCP-60E, HEIDENHEIN, 24 x 16 x 22, PALLETS, TWIN INDEXER, '99 (3843), Click to view larger photo...       CNC VERTICALS: FAMUP MCP-60E, HEIDENHEIN, 24 x 16 x 22, PALLETS, TWIN INDEXER, '99 (3843), Click to view larger photo...       CNC VERTICALS: FAMUP MCP-60E, HEIDENHEIN, 24 x 16 x 22, PALLETS, TWIN INDEXER, '99 (3843), Click to view larger photo...       CNC VERTICALS: FAMUP MCP-60E, HEIDENHEIN, 24 x 16 x 22, PALLETS, TWIN INDEXER, '99 (3843), Click to view larger photo...       CNC VERTICALS: FAMUP MCP-60E, HEIDENHEIN, 24 x 16 x 22, PALLETS, TWIN INDEXER, '99 (3843), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 3843 CNC VERTICALS: FAMUP MCP-60E, HEIDENHEIN, 24 x 16 x 22, PALLETS, TWIN INDEXER, '99 (3843)Request a quote on stock# 3843
SpecificationDescription
DATE OF MANUFACTURE1999
PALLET SIZE19.68" x 17.71"
NUMBER OF PALLETS2
MAXIMUM TABLE LOAD660 LBS
PALLET CHANGE TIME9 SECONDS
X AXIS TRAVEL23.62"
Y AXIS TRAVEL15.74"
Z AXIS TRAVEL22.44"
RAPID TRAVERSE RATE X, Y & Z AXES1181 IPM
CUTTING FEED RATE0.1 - 393.7 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS (2 SPEED GEARED)50 - 10,000 RPM
SPINDLE MOTOR15 HP
TOOL CHANGER CAPACITY24 SIDE ATC
TOOL CHANGE TIME (TOOL TO TOOL)1.7 SECONDS
TOOL CHANGE TIME (CHIP TO CHIP)2.5 SECONDS
MAXIMUM TOOL WEIGHT13.2 LBS
MACHINE WEIGHT13,000 LBS
APPROXIMATE DIMENSIONS98" x 122" x 116"

Equipped With:

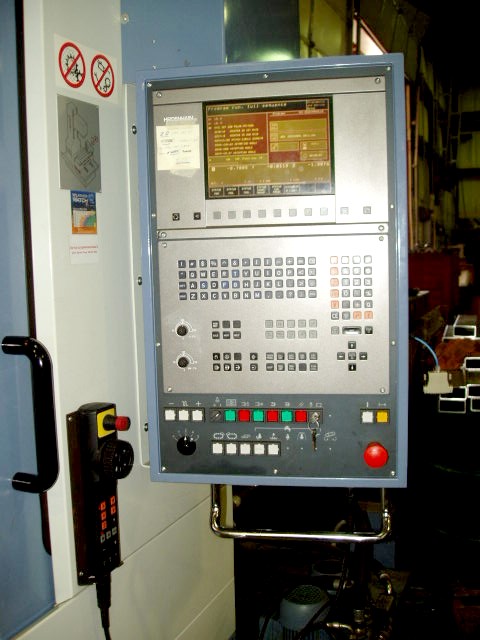

HEIDENHEIN CNC CONTROL WITH 12" COLOR LCD SCREEN
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING)

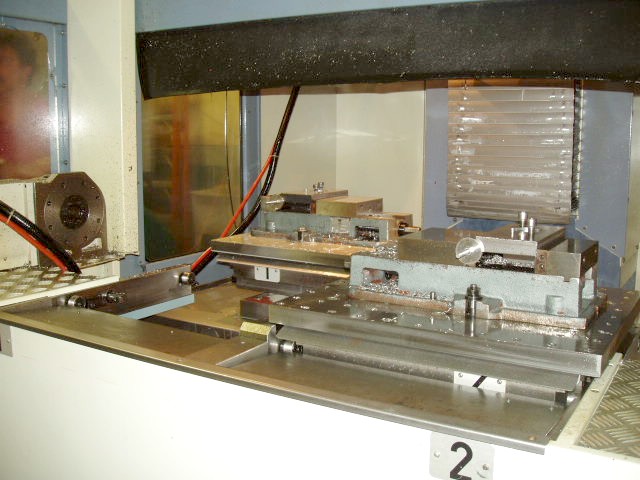

FACTORY INSTALLED HIGH SPEED AUTO 2-PALLET CHANGER
WIRED FOR DUAL INDEXERS, (2) YUASA 8" INDEXERS INCLUDED
RENISHAW PART PROBING WITH INFRARED RECEIVING UNIT
FLOPPY DISK DRIVE, 24 STATION SIDE MOUNT TOOL CHANGER
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS

SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
