CNC VERTICALS: ROKU-ROKU MEGA 360, FANUC 16iM, 30000 RPM, SCALES, SHOWA MIST, '00 (3610)

ROKU-ROKU MEGA 360, FANUC 16iM, 30000 RPM, SCALES, SHOWA MIST, '00 (3610)

Stock Number: 3610

Age: 2000

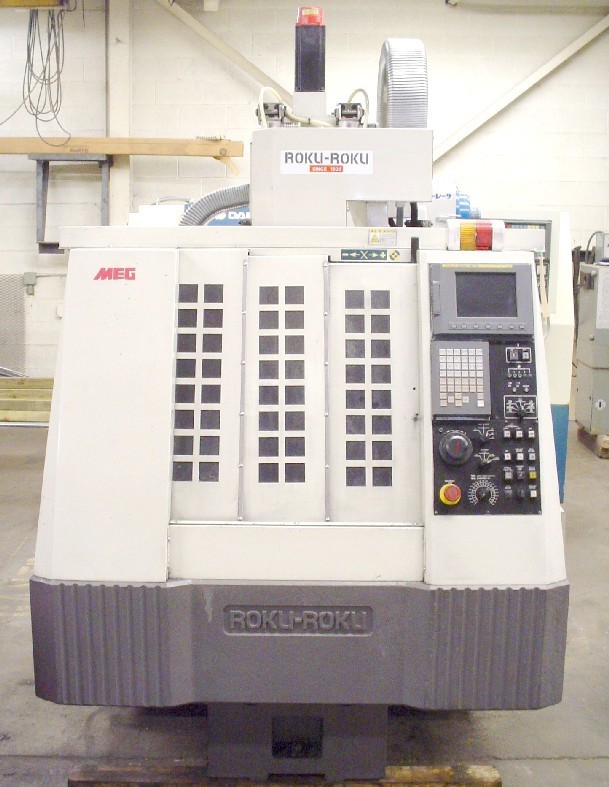

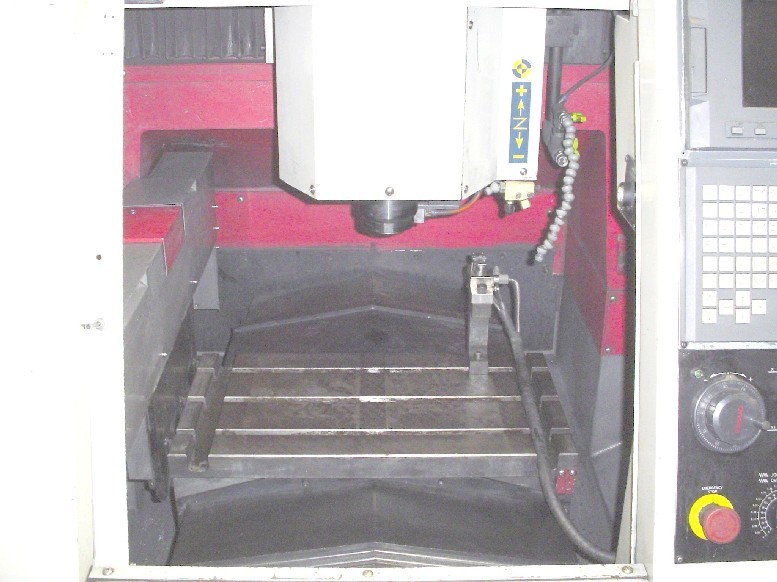

CNC VERTICALS: ROKU-ROKU MEGA 360, FANUC 16iM, 30000 RPM, SCALES, SHOWA MIST, '00 (3610), Click to view larger photo...       CNC VERTICALS: ROKU-ROKU MEGA 360, FANUC 16iM, 30000 RPM, SCALES, SHOWA MIST, '00 (3610), Click to view larger photo...       CNC VERTICALS: ROKU-ROKU MEGA 360, FANUC 16iM, 30000 RPM, SCALES, SHOWA MIST, '00 (3610), Click to view larger photo...       CNC VERTICALS: ROKU-ROKU MEGA 360, FANUC 16iM, 30000 RPM, SCALES, SHOWA MIST, '00 (3610), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 3610 CNC VERTICALS: ROKU-ROKU MEGA 360, FANUC 16iM, 30000 RPM, SCALES, SHOWA MIST, '00 (3610)Request a quote on stock# 3610
SpecificationDescription
APPROXIMATE AGE2000
TABLE SIZE23.6" x 13.0"
MAXIMUM TABLE LOAD220 LBS
SPINDLE NOSE TO TABLE TOP1.97" - 9.84"
X AXIS TRAVEL16.0"
Y AXIS TRAVEL13.0"
Z AXIS TRAVEL7.87"
POSITIONING (PER FACTORY SPEC)�0.000040"
REPEATABILITY (PER FACTORY SPEC)�0.000012"
RAPID TRAVERSE RATE X, Y & Z AXES590 IPM
CUTTING FEED RATE0.1 - 590 IPM
SPINDLE TAPERRS-20
SPINDLE SPEEDS300 - 30,000 RPM
SPINDLE MOTOR5 HP
TOOL CHANGER CAPACITY11 STATION
TOOL CHANGE TIME (TOOL TO TOOL)4 SECONDS
APPROX. DIMENSIONS (W/O SHOWA)63" x 81" x 81"
MACHINE WEIGHT6,000 LBS

Equipped With:
FANUC 16iM CNC CONTROL WITH 10.4" LCD SCREEN
RS-232C PORT INTERFACE FOR DNC, HPCC HI SPEED MACHINING
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING)
LINEAR SCALE FEEDBACK SYSTEM ON X, Y & Z AXES
SHOWA MIST COOLANT AND RECOLLECTION SYSTEM
SHOWA SYSTEM MAY BE UTILIZED FOR HARD MILLING
STANDARD COOLANT SYSTEM WITH TANK & PUMP
OIL-MATIC AUTOMATIC OIL TEMPERATURE REGULATOR
Z-AXIS BALANCE CYLINDER, AUTO OIL LUBE SYSTEM
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
*****EXCELLENT CONDITION - VERY WELL MAINTAINED*****
