MORI SEIKI SL-35B/1500, FANUC 10T, 23.6 SW .64.6 CENTERS, 12 CHUCK, TAILSTOCK '89 (4898)


MORI SEIKI SL-35B/1500, FANUC 10T, 23.6 SW .64.6 CENTERS, 12 CHUCK, TAILSTOCK '89 (4898)

Stock Number: 4898

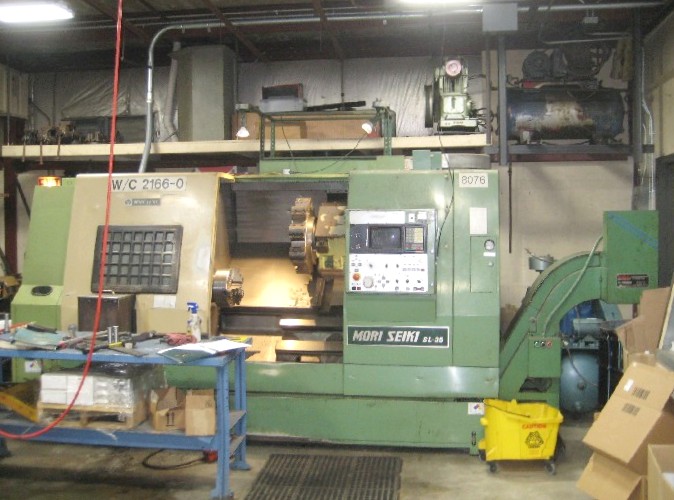

Click to view larger photo

Request A Quote On Our Stock Number: 4898 MORI SEIKI SL-35B/1500, FANUC 10T, 23.6 SW .64.6 CENTERS, 12 CHUCK, TAILSTOCK '89 (4898)Request a quote on stock# 4898
SpecificationDescription
APPROXIMATE AGE1989
SWING OVER BED23.6"
SWING OVER CROSS SLIDE16.7"
MAX. TURNING DIA. (RECOMMENDED)16.2"
MAXIMUM TURNING LENGTH60.2"
X AXIS TRAVEL9.4"
Z AXIS TRAVEL33.7"
RAPID TRAVERSE RATE X AXIS472 IPM
RAPID TRAVERSE RATE Z AXIS590 IPM
SPINDLE NOSEA2-8
SPINDLE BORE4.1"
MAXIMUM BAR CAPACITY3.6"
SPINDLE SPEEDS35 - 2,500 RPM
SPINDLE MOTOR30 HP
TURRET CAPACITY10 STATION TURRET
TAILSTOCK QUILL TAPERMT #4
TAILSTOCK QUILL DIAMETER5.1"
TAILSTOCK QUILL STROKE4.7"
TAILSTOCK BODY TRAVEL58.9"
APPROXIMATE DIMENSIONS166" x 62" x 69"
MACHINE WEIGHT (APPROXIMATE)20,000 LBS

Equipped With:
FANUC 10T CNC CONTROL WITH 10" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
10" HYDRAULIC CHUCK,
PROGRAMMABLE HYDRAULIC TAILSTOCK
RIGHT HAND DISCHARGE LIFT-UP TYPE CHIP CONVEYOR
STANDARD COOLANT SYSTEM WITH TANK & PUMP
ALL AVAILABLE TOOL BLOCK HOLDERS, ALL AVAILABLE MANAULS
