MORI SEIKI ZL-25 B/1000 CNC LATHE, 4-AXIS TWIN TURRET, 20.5 SWING, 45 CENTERS, TAIL STOCK, FANUC 16 TTB, CHIP CONVEYOR


MORI SEIKI ZL-25 B/1000 CNC LATHE, 4-AXIS TWIN TURRET, 20.5 SWING, 45 CENTERS, TAIL STOCK, FANUC 16 TTB, CHIP CONVEYOR

Stock Number: 4888



Click to view larger photo

Request A Quote On Our Stock Number: 4888 MORI SEIKI ZL-25 B/1000 CNC LATHE, 4-AXIS TWIN TURRET, 20.5 SWING, 45 CENTERS, TAIL STOCK, FANUC 16 TTB, CHIP CONVEYORRequest a quote on stock# 4888
SpecificationDescription
MFG DATE1993
SWING OVER BED20.5"
SWING OVER CROSS SLIDE13.8"
DISTANCE BETWEEN CENTERS, MAX.45.1"
X AXIS TRAVEL (UPPER TURRET)6.3"
X AXIS TRAVEL (LOWER TURRET)5.7"
Z AXIS TRAVEL (UPPER TURRET)42.9"
Z AXIS TRAVEL (LOWER TURRET)42.9"
RAPID TRAVERSE RATE X / Z AXES472 IPM / 590 IPM
SPINDLE NOSEA2-6
SPINDLE BORE3.1"
BAR CAPACITY, MAX.2.68"
SPINDLE MOTOR25 HP
SPINDLE SPEEDS35-3500 RPM

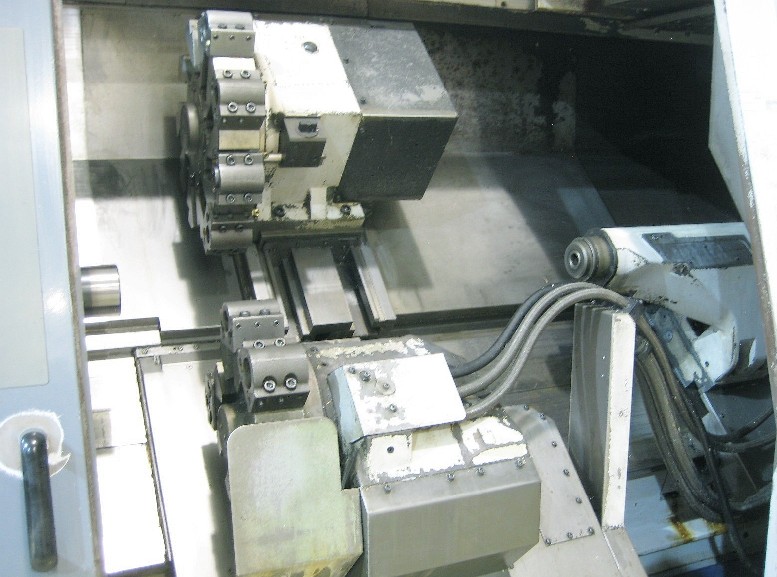

TURRET CAPACITY (UPPER / LOWER)10 / 8 STATION TURRET
TAILSTOCK QUILL TAPER / DIAMETERMT #4 / 4.3"
TAILSTOCK BODY / QUILL TRAVEL42.9" / 3.9"
DIMENSIONS, APPROX.178"L x 70"W x 74"H
WEIGHT, APPROX.18,600 LBS

Equipped With:
FANUC 16TTB CNC CONTROL WITH 14" COLOR SCREEN,
RS-232C PORT INTERFACE FOR DNC OPERATION,
16C COLLET CHUCK,
PROGRAMMABLE TAILSTOCK,

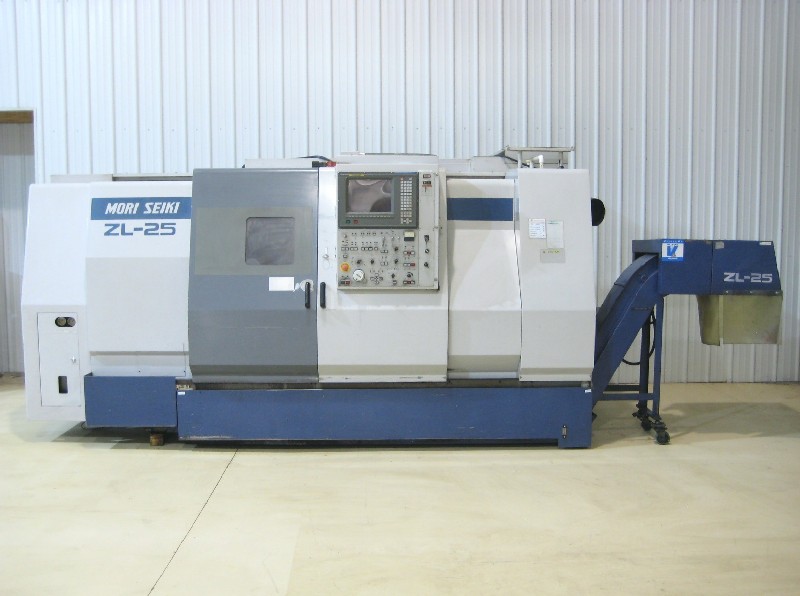

RIGHT HAND DISCHARGE LIFT-UP TYPE CHIP CONVEYOR,
COOLANT SYSTEM WITH TANK & PUMP,
ALL AVAILABLE TOOL HOLDERS, ALL AVAILABLE MANAULS
***VIDEO AVAILABLE UPON REQUEST***
