HAAS SL-10 T CNC LATHE, 16 SW, 14 LENGTH, TAILSTOCK, 20 HP, 6 3 JAW CHUCK, NEW 2004

HAAS SL-10 T CNC LATHE, 16 SW, 14 LENGTH, TAILSTOCK, 20 HP, 6" 3 JAW CHUCK, NEW 2004

Stock Number: 4830


Click to view larger photo

Request A Quote On Our Stock Number: 4830 HAAS SL-10 T CNC LATHE, 16 SW, 14 LENGTH, TAILSTOCK, 20 HP, 6 3 JAW CHUCK, NEW 2004Request a quote on stock# 4830
SpecificationDescription
DATE OF MANUFACTURE10/2004 (INSTALLED NEW 2005)
SWING OVER FRONT APRON16.25"
CUTTING DIAMETER, MAX.11"
MACHINING LENGTH14"
X AXIS TRAVEL6.25"
Z AXIS TRAVEL14"
RAPID TRAVERSE RATE X AXIS710 IPM
RAPID TRAVERSE RATE Z AXIS710 IPM
SPINDLE NOSEA2-5
SPINDLE BORE2.31"
MAXIMUM BAR CAPACITY1.75"
SPINDLE SPEEDS6,000 RPM
SPINDLE MOTOR (VECTOR DRIVE)20 HP
TURRET CAPACITY12 STATIONS
TAILSTOCK QUILL TAPER / TRAVELMT #3 / 4"
DIMENSIONS, APPROX.91" x 55" x 69"
WEIGHT, APPROX.7000 LBS

Equipped With:

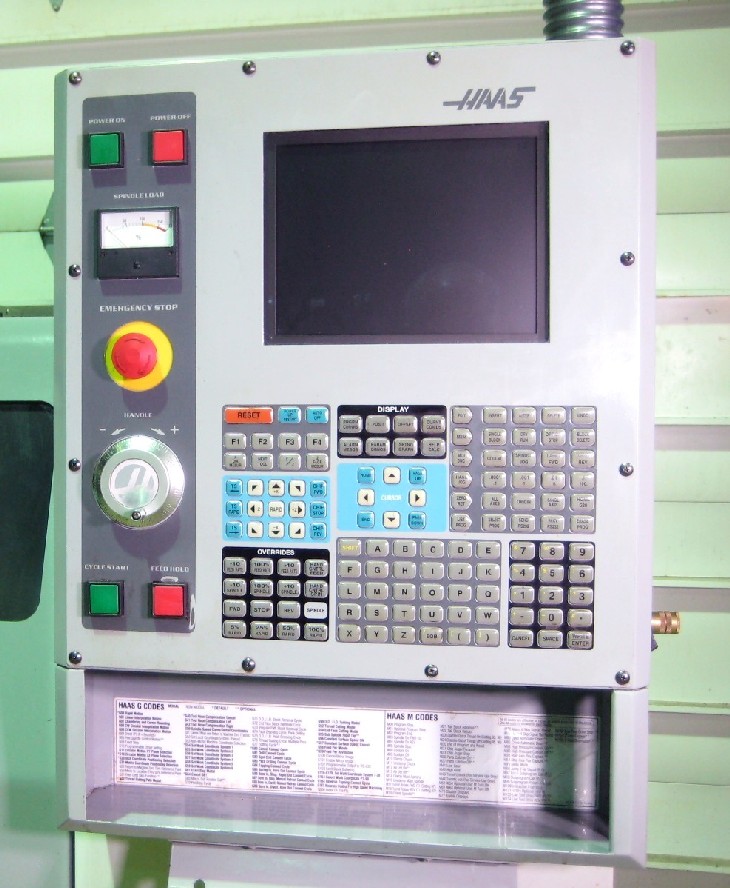

HAAS CNC CONTROL WITH 12" LCD SCREEN,
RS-232C PORT INTERFACE FOR DNC OPERATION,
PROGRAMMABLE TAILSTOCK,
RIGID TAPPING (SOLID TAPPING / SYNCHRONOUS TAPPING),
1.44MB 3.5" FLOPPY DRIVE, QUIKCODE PROGRAMMING,
DELTA WYE MOTOR, ALL AVAILBLE TOOL BLOCK HOLDERS,
COOLANT SYSTEM, ALL AVAILABLE MANAULS,
***VIDEO AVAILABLE UPON REQUEST***
