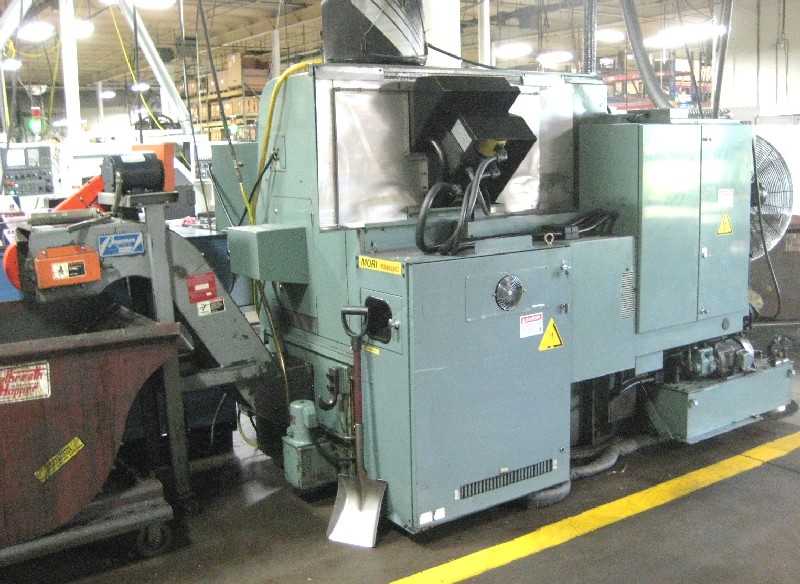

MORI SEIKI SL-3 H CNC LATHE, 22 SW, 24 CENTERS, 20 HP, 3 in. BORE, 10 in. CHUCK, CHIP CONVEYOR, FANUC


MORI SEIKI SL-3 H CNC LATHE, 22 SW, 24 CENTERS, 20 HP, 3 in. BORE, 10 in. CHUCK, CHIP CONVEYOR, FANUC

Stock Number: 4820



Click to view larger photo

Request A Quote On Our Stock Number: 4820 MORI SEIKI SL-3 H CNC LATHE, 22 SW, 24 CENTERS, 20 HP, 3 in. BORE, 10 in. CHUCK, CHIP CONVEYOR, FANUCRequest a quote on stock# 4820
SpecificationDescription
MFG DATE1985
SWING OVER BED22.4"
SWING OVER CROSS SLIDE13.8"
MACHINING DIAMETER, MAX.10.2"
DISTANCE BETWEEN CENTERS, MAX.24"
TURNING LENGTH, MAX.22"
X AXIS TRAVEL8"
Z AXIS TRAVEL22"
SPINDLE NOSEA2-6
SPINDLE BORE3.1"
BAR CAPACITY, MAX.2.7"
SPINDLE SPEEDS40 - 4000 RPM
SPINDLE MOTOR20 HP

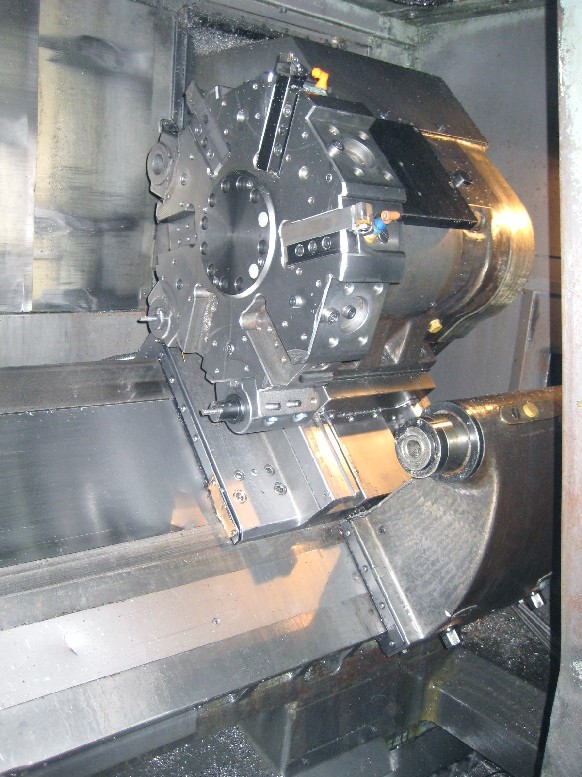

TURRET CAPACITY12 STATIONS
RAPID TRAVERSE RATE X & Z AXIS590 IPM
TAILSTOCK QUILL TAPERMT #3
TAILSTOCK QUILL DIAMETER/STROKE3.4" / 3.1"
TAILSTOCK BODY TRAVEL19.3"

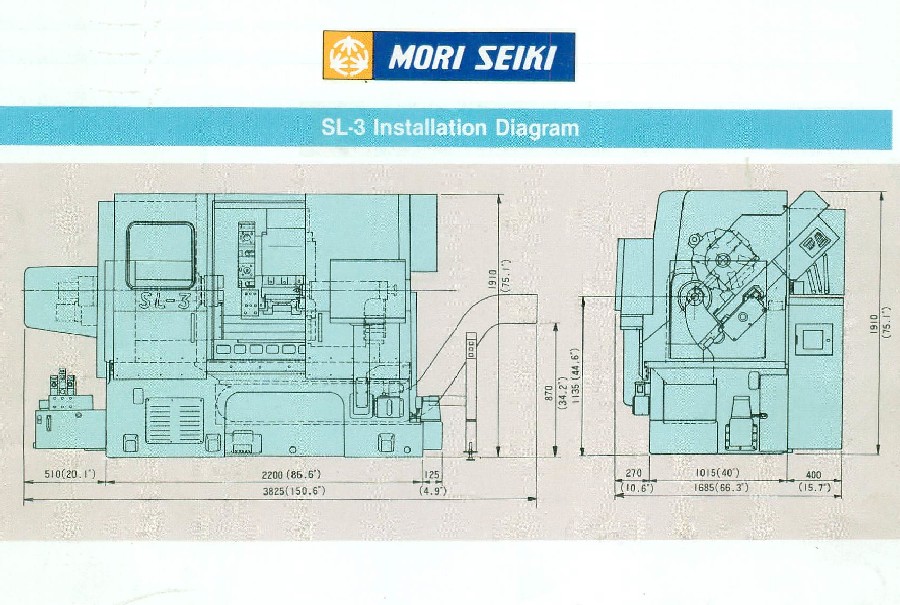

DIMENSIONS, APPROX.113"L x 68"W x 75"H
MACHINE WEIGHT, APPROX.10,200 LBS (w/CHIP C.)

Equipped With:

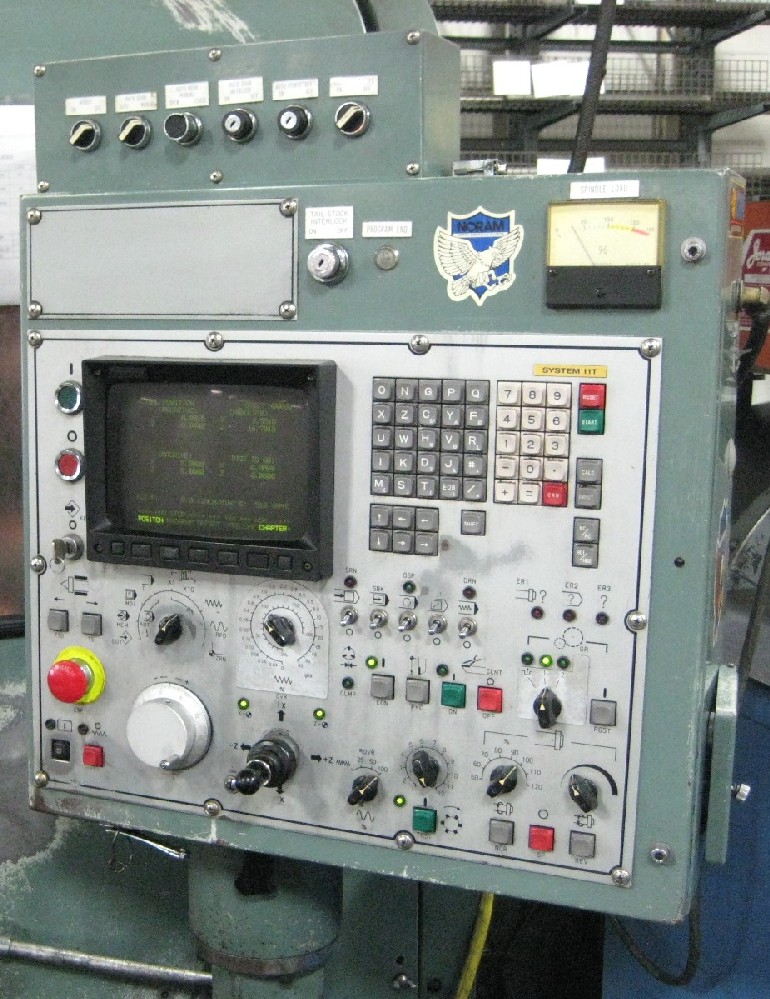

FANUC 11T CNC CONTROL,

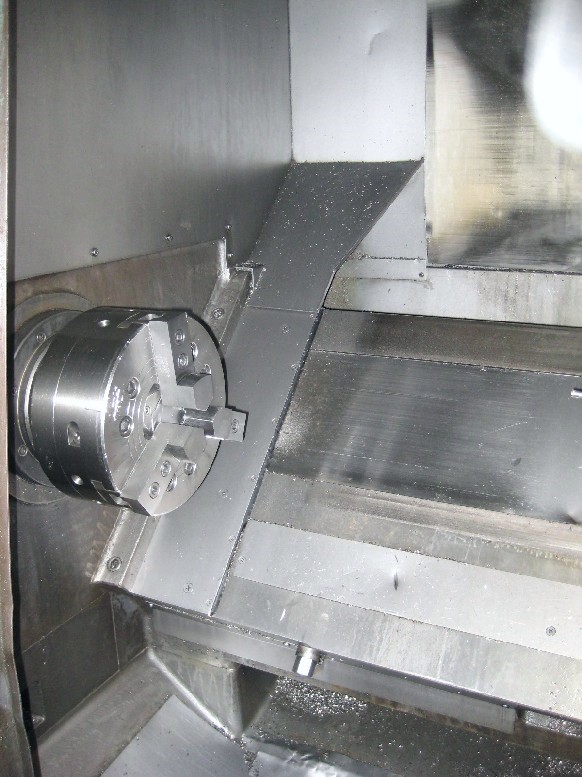

KITAGAWA 10" 3-JAW CHUCK (HYDRAULIC),
TAILSTOCK,
CHIP CONVEYOR,
RS-232C PORT INTERFACE FOR DNC OPERATION,
COOLANT SYSTEM WITH TANK & PUMP,
ALL AVAILABLE TOOL BLOCK HOLDERS,
ALL MANUALS, SEE PICTURES
***VIDEO AVAILABLE UPON REQUEST***
