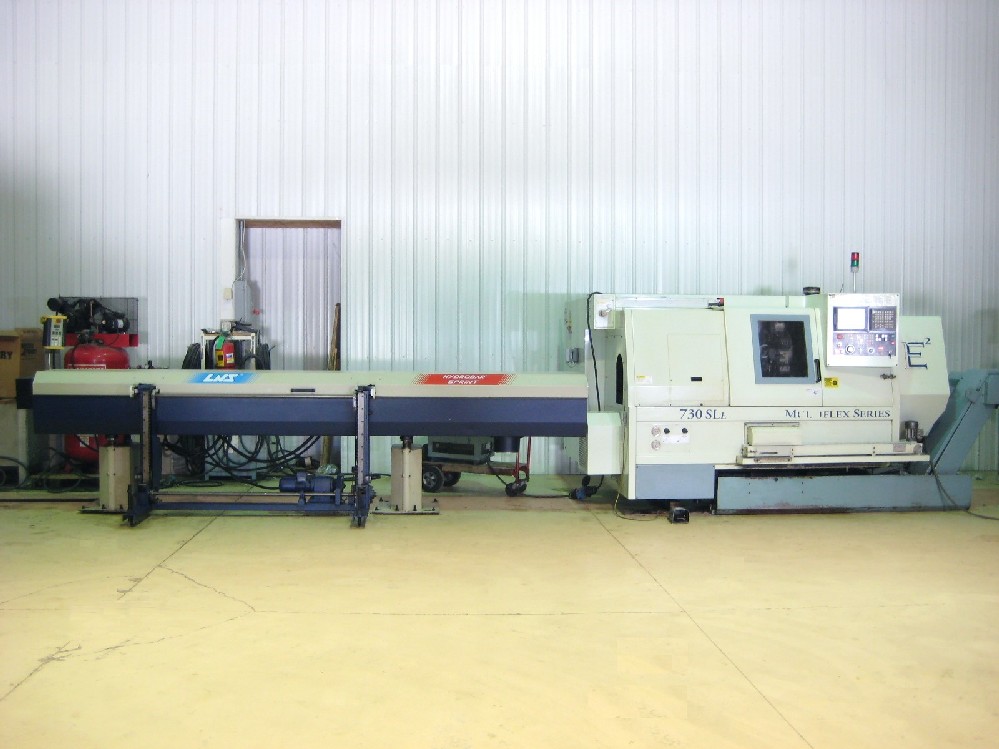

EUROTECH ELITE 730 SLE CNC LATHE, FANUC 18i-T, 20 in SW, 23 in CC, LIVE TOOL & SUB SPINDLE, 12 FT. LNS BAR FEEDER

EUROTECH ELITE 730 SLE CNC LATHE, FANUC 18i-T, 20 in SW, 23 in CC, LIVE TOOL & SUB SPINDLE, 12 FT. LNS BAR FEEDER

Stock Number: 4816


Click to view larger photo

Request A Quote On Our Stock Number: 4816 EUROTECH ELITE 730 SLE CNC LATHE, FANUC 18i-T, 20 in SW, 23 in CC, LIVE TOOL & SUB SPINDLE, 12 FT. LNS BAR FEEDERRequest a quote on stock# 4816
SpecificationDescription
MFG DATE2001
SWING, MAX.20.47"
SWING OVER CARRIAGE15.74"
TURNING DIAMETER, MAX.9.84"
DISTANCE BETWEEN SPINDLES, MAX.22.7"
X AXIS TRAVEL8.46"
Z AXIS TRAVEL19.68"
C AXIS INDEXING0.001 DEG.
B AXIS TRAVEL (SUB SPINDLE)19.7"
SPINDLE SPEEDS40 - 4,000 RPM
SUB SPINDLE SPEEDS40 - 4,000 RPM
RAPID TRAVERSE RATE X & Z AXES787 IPM
BAR CAPACITY2.75"
SPINDLE NOSEA2-6
SPINDLE MOTOR (MAIN/SUB)35 HP / 10 HP

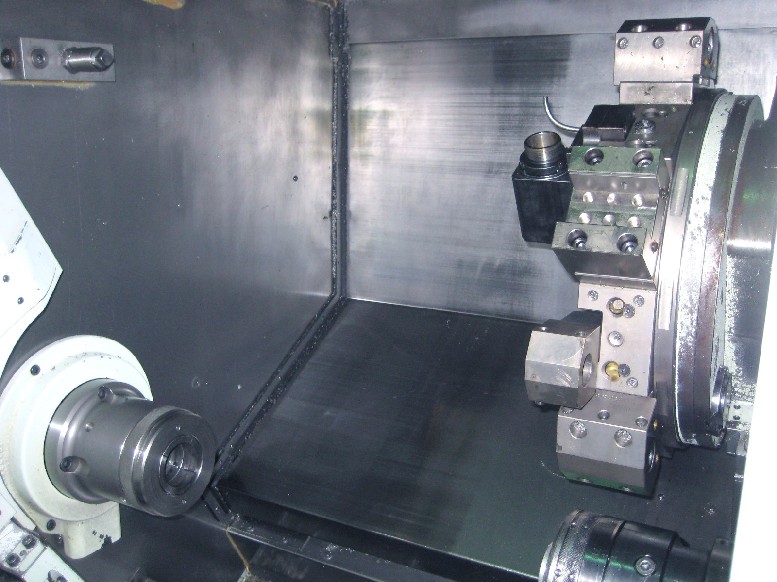

TURRET CAPACITY12 STATION TURRET
LIVE TOOLING MOTOR5 HP
LIVE TOOLING SPEEDS100 - 3,000 RPM
MACHINE WEIGHT (APPROX.)10,500 LBS

Equipped With:

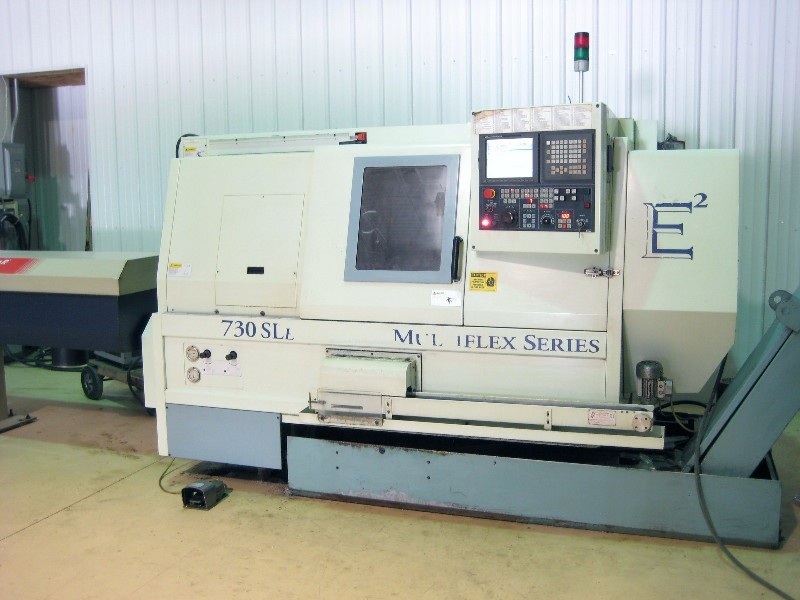

FANUC 18i-T CNC CONTROL WITH 10" COLOR GRAPHIC DISPLAY,
RS-232C PORT INTERFACE FOR DNC OPERATION,
B60 COLLET CHUCK ON MAIN,
COLLET CHUCK ON SUB,

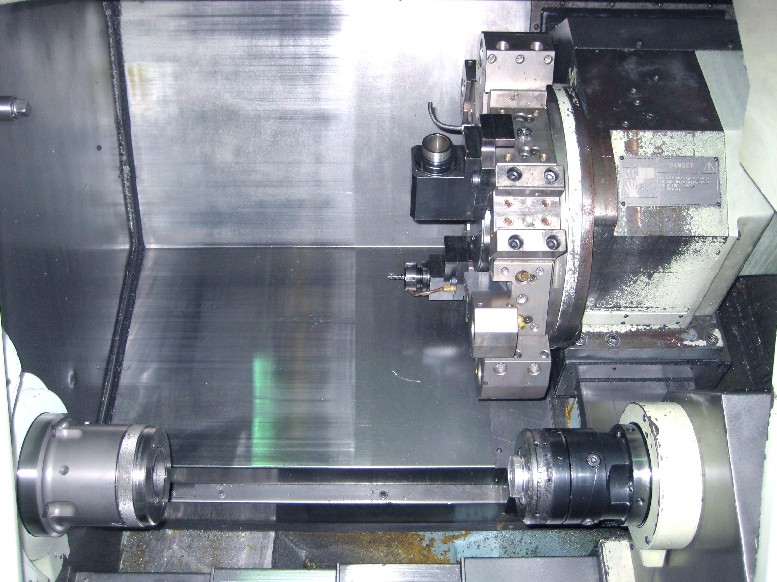

SUB-SPINDLE & LIVE TOOL SPINDLES,

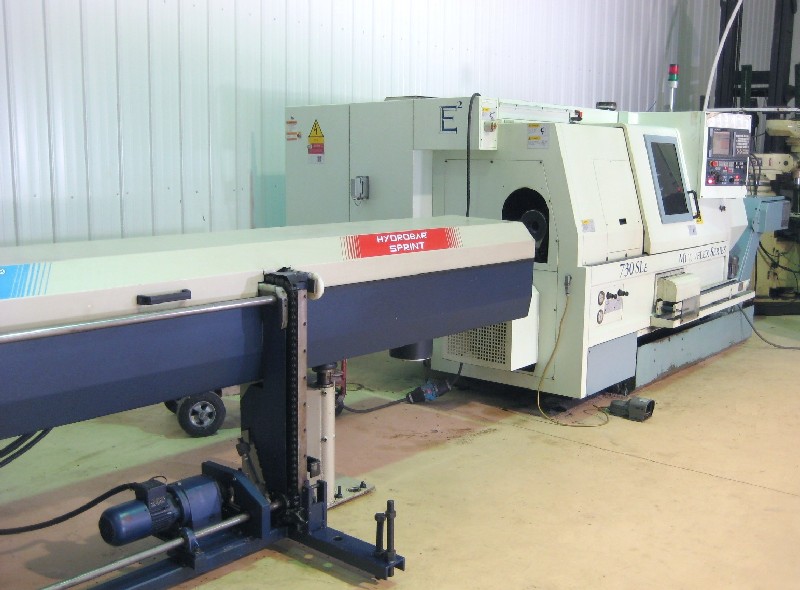

LNS HYDROBAR SPRINT S2 BAR FEEDER (12' x 3.2" DIA. BAR),
PROGRAMABLE PARTS CATCHER AND CONVEYOR,

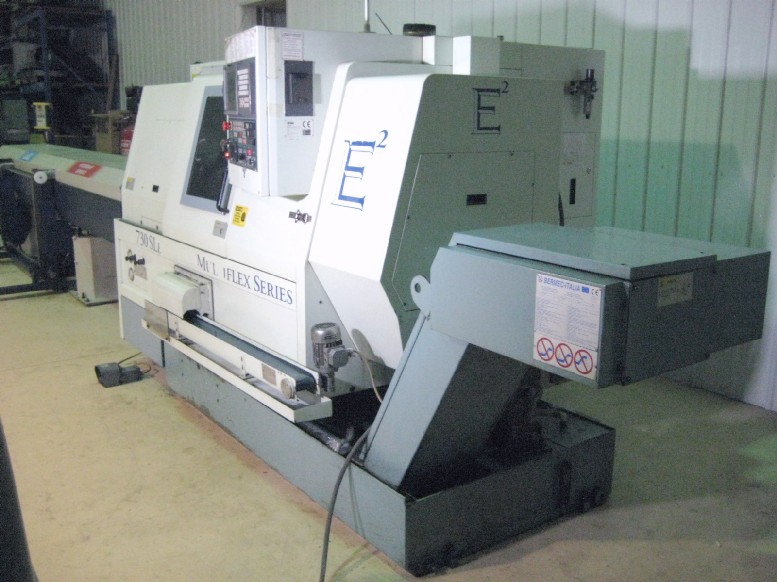

RIGHT HAND DISCHARGE LIFT-UP TYPE CHIP CONVEYOR,
(2) LIVE MILLING TOOL HOLDERS & STATIC TOOL HOLDERS,
STANDARD COOLANT SYSTEM, ALL AVAILABLE MANUALS
