HAAS SL-20 CNC LATHE, 23 SW, 20 LENGTH, SERVO BAR 300 BAR FEEDER, CHIP CONVEYOR, PARTS CATCHER, TOOL EYE, 2007
Stock Number: 4800
Click to view larger photo
Request a quote on stock# 4800
| Specification | Description |
|---|
| DATE OF MANUFACTURE, NEW | 2007 |
| MAX. SWING OVER FRONT APRON | 23" |
| MAX. SWING OVER CROSS SLIDE | 9.5" |
| MAX. CUTTING DIAMETER | 10.3" |
| MAX. TURNING LENGTH | 20" |
| X AXIS TRAVEL | 8.45" |
| Z AXIS TRAVEL | 20" |
| RAPID TRAVERSE RATE X & Z AXES | 1200 IPM |
| SPINDLE BORE | 3.0" |
| MAXIMUM BAR CAPACITY | 2.06" |
| MAXIMUM SPINDLE SPEED | 4000 RPM |
| SPINDLE MOTOR | 20 HP |
| SPINDLE NOSE | A2-6 |

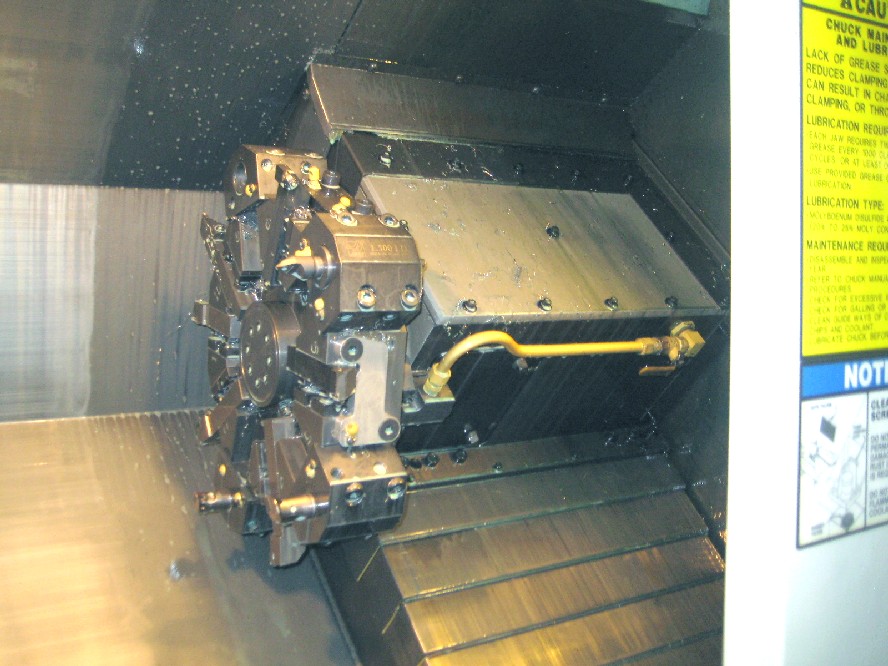

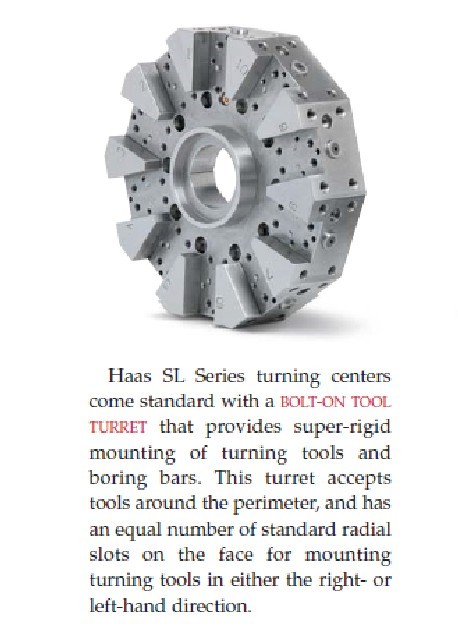

| TURRET CAPACITY | 10 STATIONS |
| COOLANT RESERVOIR | 40 GAL. |
| DIMENSIONS, APPROX. | 99"L x 74"W x 73"H |
| WEIGHT, APPROX. | 10,000 LBS |
Equipped With:
HAAS TRIPLE 32-BIT HIGH-SPEED CNC CTRL w/COLOR LCD,
8" 3-JAW CHUCK, AUTO PARTS CATCHER,
HAAS SERVO BAR 300 BAR FEEDER SYSTEM (60"x 3.1")

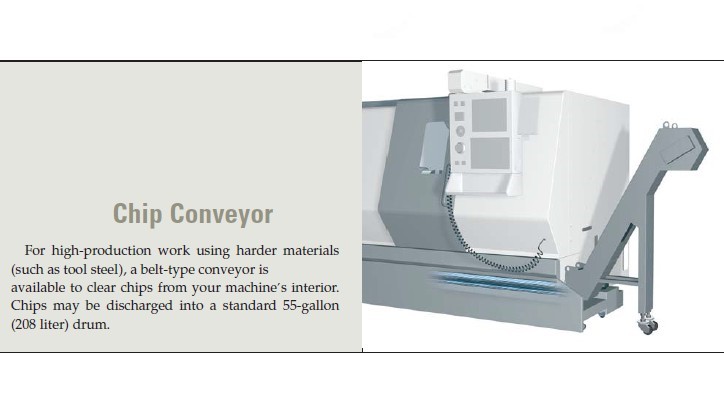

RIGHT HAND DISCHARGE LIFT-UP TYPE CHIP CONVEYOR,
TOOL MEASUREMENT (AUTOMATIC TOOL PRESETTER ARM),
20 HP DUAL VECTOR DRIVE,
HIGH-INTENSITY LIGHTING OPTION,
RIGID TAPPING (SOLID TAPPING),
INTUITIVE PROGRAMMING SYSTEM,
COOLANT SYSTEM WITH TANK & PUMP,
ALL AVAILABLE TOOLING, ALL AVAILABLE MANUALS
