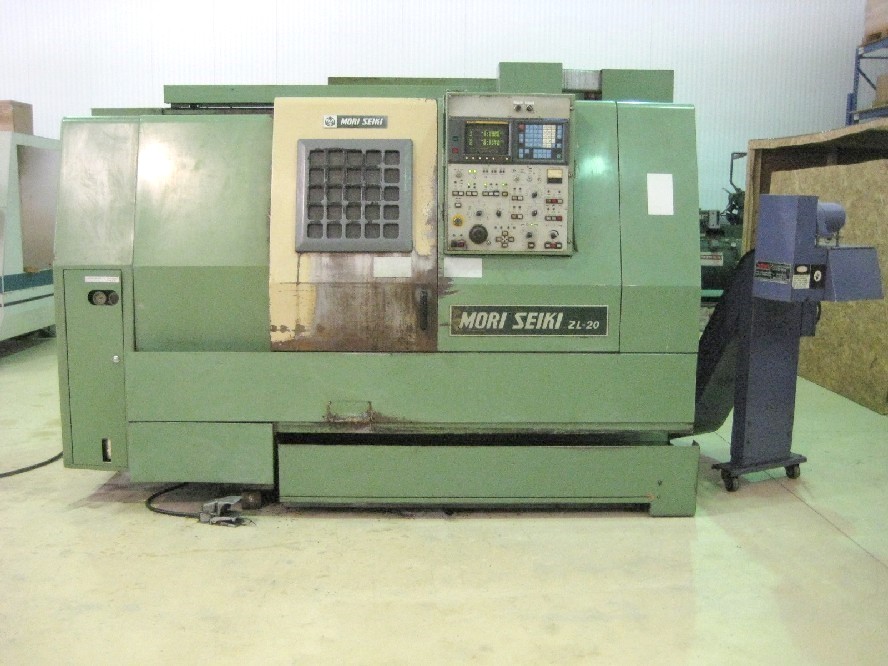

MORI SEIKI ZL-20 4-AXIS TWIN TURRET CNC LATHE, 19 SWING, 24 CENTERS, TAILSTOCK, CHIP CONVEYOR, 20 HP, MF-D4 FANUC, 1990


MORI SEIKI ZL-20 4-AXIS TWIN TURRET CNC LATHE, 19 SWING, 24 CENTERS, TAILSTOCK, CHIP CONVEYOR, 20 HP, MF-D4 FANUC, 1990

Stock Number: 4794



Click to view larger photo

Request A Quote On Our Stock Number: 4794 MORI SEIKI ZL-20 4-AXIS TWIN TURRET CNC LATHE, 19 SWING, 24 CENTERS, TAILSTOCK, CHIP CONVEYOR, 20 HP, MF-D4 FANUC, 1990Request a quote on stock# 4794
SpecificationDescription
MFG DATE1990
SWING OVER BED18.9"
SWING OVER CROSS SLIDE14.6"
DISTANCE BETWEEN CENTERS24.4 (w/CHUCK)
MAX. MACHINING DIAMETER (UPPER)8.3"
MAX. MACHINING DIAMETER (LOWER)5.9"
MAXIMUM MACHINING LENGTH20.4"
X AXIS TRAVEL (UPPER)5.1"
X AXIS TRAVEL (LOWER)3.9"
Z AXIS TRAVEL (UPPER)22.1"
Z AXIS TRAVEL (LOWER)20.9"
SPINDLE SPEEDS45 - 4,500 RPM
SPINDLE NOSEA2-6
SPINDLE BORE2.2"
MAXIMUM BAR CAPACITY1.8"
SPINDLE MOTOR20 HP
UPPER TURRET CAPACITY10 STATIONS
LOWER TURRET CAPACITY8 STATIONS
RAPID TRAVERSE RATE X AXIS / Z AXIS472 IPM / 590 IPM
TAILSTOCK QUILL TAPER/DIA./STROKEMT #4 / 3" / 3.1"
TAILSTOCK BODY TRAVEL20.9"
DIMENSIONS, APPROX.115"L x 63"W x 82"H
WEIGHT, APPROX.13,300 LBS

Equipped With:

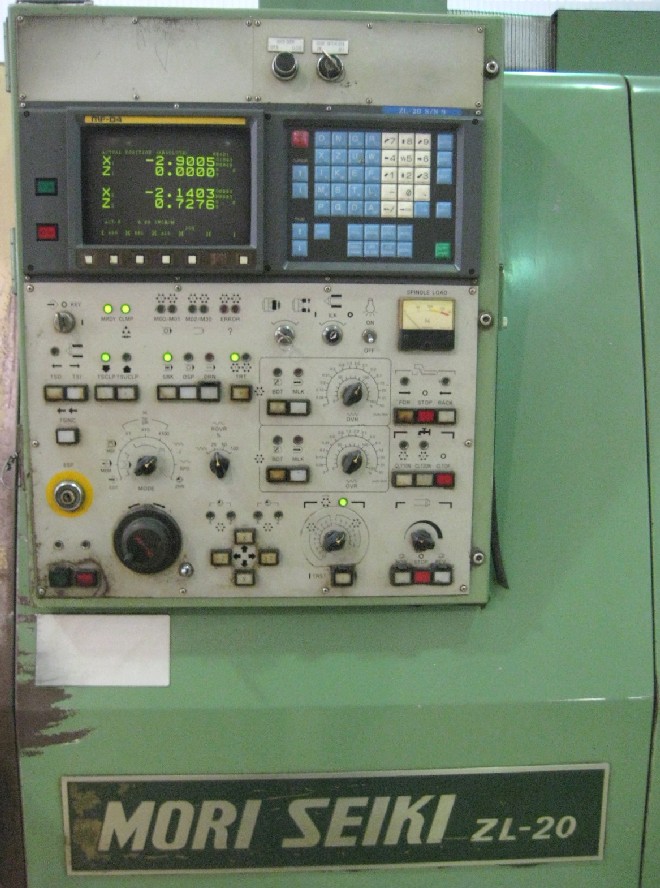

MF-D4 (MORI-FANUC) CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,

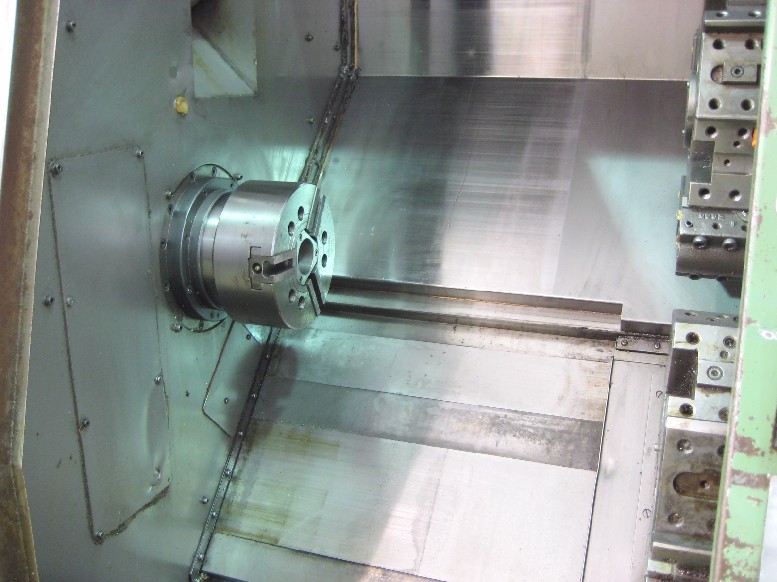

8" KITAGAWA B-208 3-JAW CHUCK,

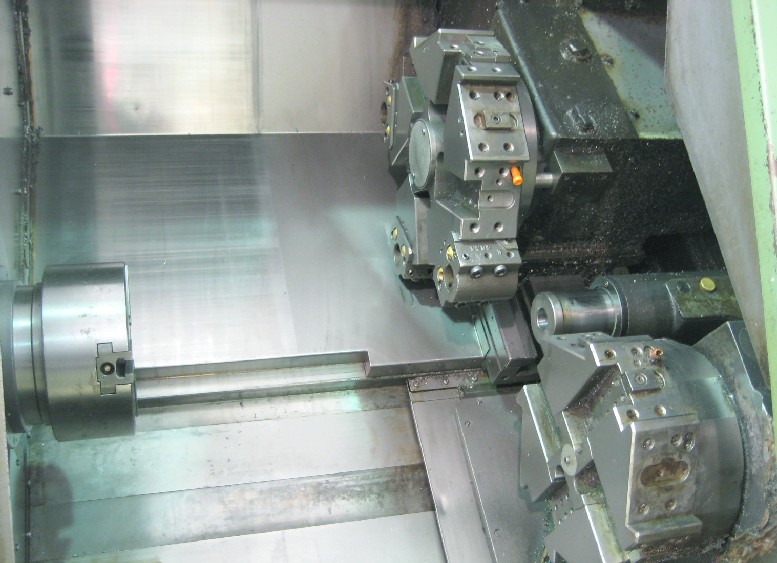

TWIN TURRET & TAILSTOCK,
TURBO CHIP CONVEYOR,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
ALL AVAILABLE TOOL BLOCK HOLDERS, ALL AVAILABLE MANAULS
***WITH 20 HP & 4500 RPM SPINDLE OPTION***
