FRYER EASY TURN ET-14 TOOLROOM CNC LATHE, 14 IN. SWING, 40 IN. CENTERS, 1.56 IN. SPINDLE HOLE, 3500 RPM, 161 HOURS,2008

FRYER EASY TURN ET-14 TOOLROOM CNC LATHE, 14 IN. SWING, 40 IN. CENTERS, 1.56 IN. SPINDLE HOLE, 3500 RPM, 161 HOURS,2008

Stock Number: 4793


Click to view larger photo

Request A Quote On Our Stock Number: 4793 FRYER EASY TURN ET-14 TOOLROOM CNC LATHE, 14 IN. SWING, 40 IN. CENTERS, 1.56 IN. SPINDLE HOLE, 3500 RPM, 161 HOURS,2008Request a quote on stock# 4793
SpecificationDescription
MANUFACTURED NEW2008
SWING OVER BED14"
DISTANCE BETWEEN CENTERS40"
SWING OVER CROSS SLIDE7"
CROSS SLIDE TRAVEL7.5"
SPINDLE THRU-HOLE1.562"
SPINDLE SPEEDS150 - 3500 RPM
SPINDLE NOSED1-4 (CAMLOCK)
INDEXER (TOOLPOST)4 POSITION
MAX. RAPID FEED X400 IPM
MAX. RAPID FEED Z400 IPM
MAIN MOTOR7.5 HP
TAILSTOCK QUILL TRAVEL / TAPER4" / MT-3
TAILSTOCK QUILL DIAMETER1.97"
DIMENSIONS, APPROX.86"L x 60"W x 68"H
WEIGHT, APPROX.5000 LBS
ELECTRICSSINGLE PHASE / 220V

Equipped With:

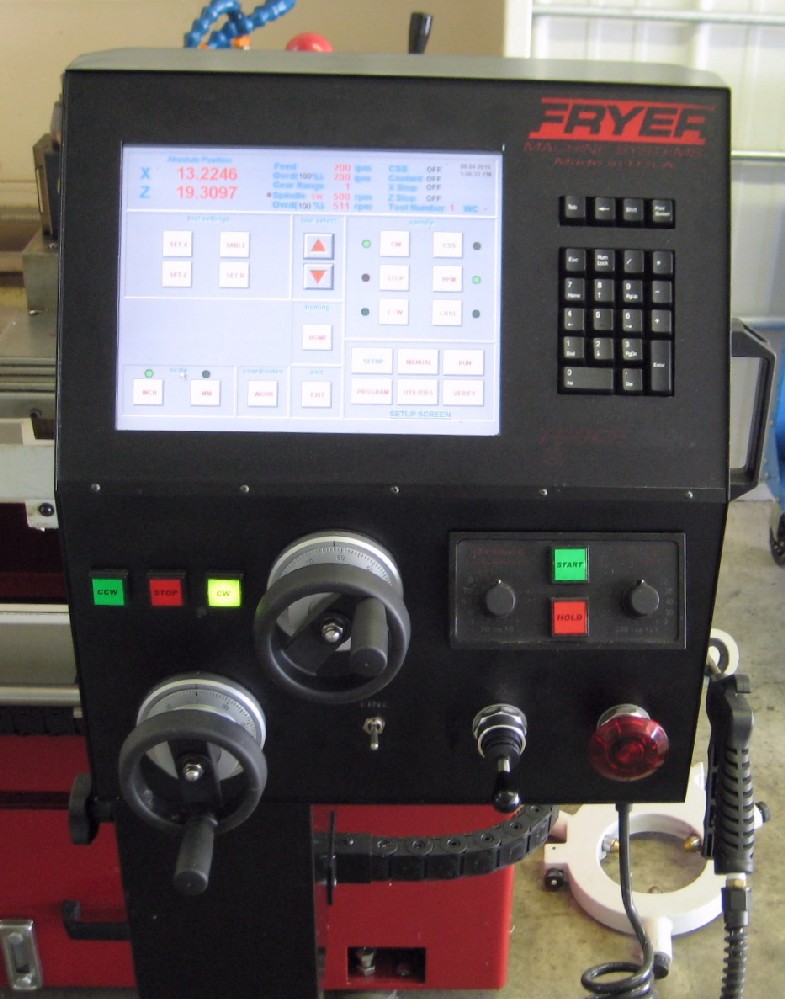

ANILAM TOUCH 2000i CNC CONTROL,
w/COLOR GRAPHICS & TEACH MODE,
FULL CONVERSATIONAL PROGRAMMING,
BISON 8" 3-JAW CHUCK,
USB COMMUNICATIONS PORT,
DORIAN TOOL POST,

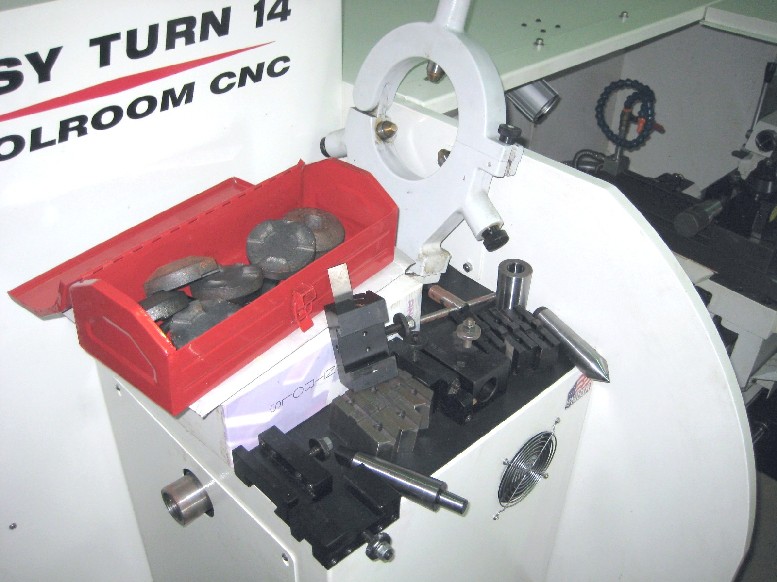

STEADY-REST & TAILSTOCK,
ELECTRONIC HANDWHEELS w/JOG STICK,
FLOOD COOLANT & CHIP PAN,
**BOTH MANUAL or CNC OPERATION**

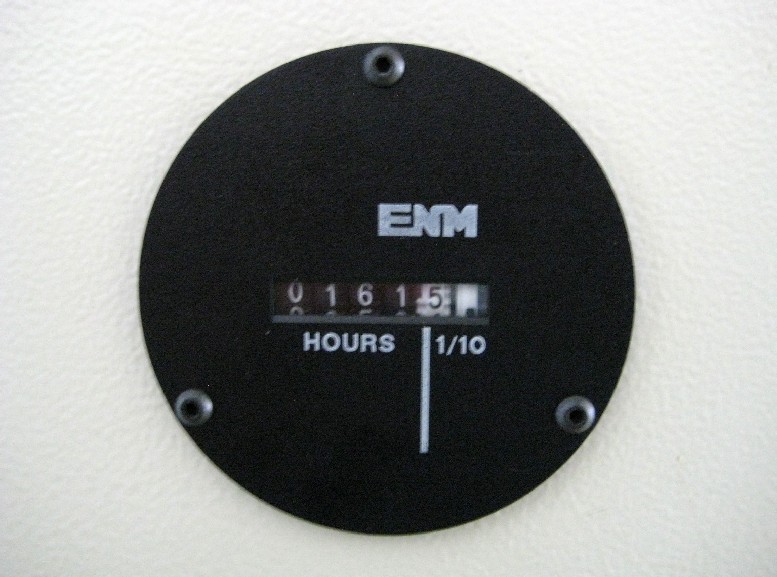

***ONLY 161 POWER-ON HOURS!***
****MADE IN THE USA****
*****SINGLE-PHASE ELECTRICS*****
