MORI SEIKI NLX 2500 SY CNC LATHE, 36 SWING x 28 LENGTH, LIVE TOOLING, Y AXIS, SUB-SPINDLE 35 HP, LNS BARFEEDER, NEW 2013

MORI SEIKI NLX 2500 SY CNC LATHE, 36 SWING x 28 LENGTH, LIVE TOOLING, Y AXIS, SUB-SPINDLE 35 HP, LNS BARFEEDER, NEW 2013

Stock Number: 4776


Click to view larger photo

Request A Quote On Our Stock Number: 4776 MORI SEIKI NLX 2500 SY CNC LATHE, 36 SWING x 28 LENGTH, LIVE TOOLING, Y AXIS, SUB-SPINDLE 35 HP, LNS BARFEEDER, NEW 2013Request a quote on stock# 4776
SpecificationDescription
MFG DATE2013
SWING OVER BED / CROSS SLIDE36.2" / 29.2"
SWING OVER FRONT COVER26.4"
MAXIMUM TURNING DIAMETER14.4"
MAXIMUM TURNING LENGTH27.7"
BAR WORK CAPACITY3.1"
X AXIS TRAVEL12"
Z AXIS TRAVEL31.3"
Y AXIS TRAVEL+/- 2"
B AXIS, SUB-SPINDLE, LATERAL28.9"
C AXIS INDEXING0.001 DEGREE
RAPID TRAVERSE RATE X, Z, B AXES1,181 IPM
MAIN SPINDLE SPEED4,000 RPM
MAIN SPINDLE MOTOR35 HP
MAIN SPINDLE NOSE / SPINDLE BOREA2-8 / 3.6"
SUB-SPINDLE SPEED / MOTOR6,000 RPM / 15 HP
SUB-SPINDLE NOSE / BOREA2-5 / 1.7"
TURRET CAPACITY12
LIVE TOOLING SPEEDS / MOTOR10,000 RPM / 7.5 HP
DIMENSIONS, APPROX. w/CHIP CONVEYOR155"L x 83"W x 86"H
WEIGHT, APPROX. w/CHIP CONVEYOR15,300 LBS

Equipped With:

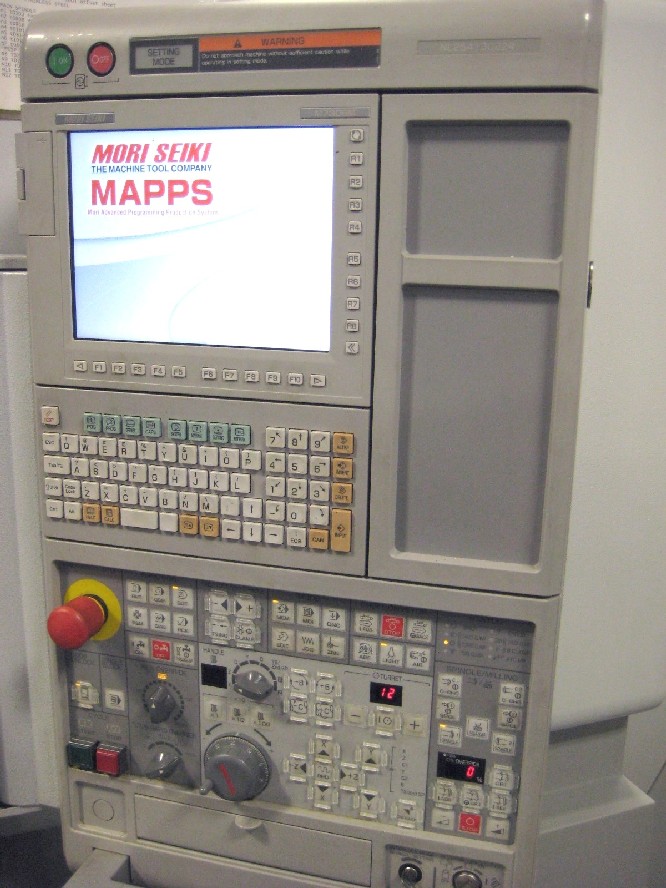

MORI M730BM w/MAPPS CNC CONTROL,
HELICAL, CYLINDRICAL, POLAR INTERPOLATION,

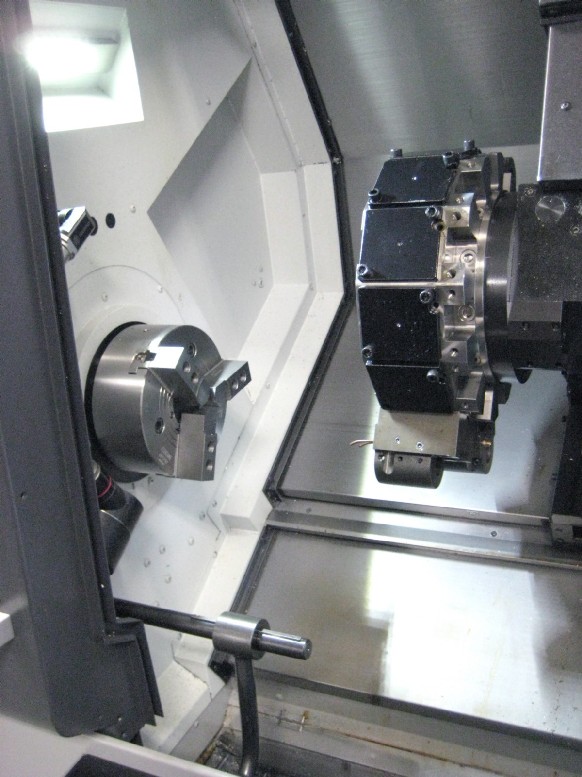

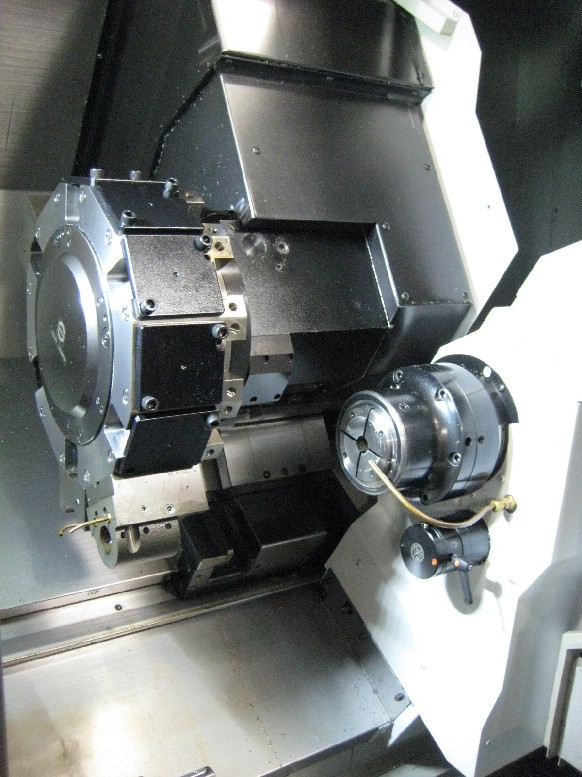

10" 3-JAW CHUCK ON MAIN SPINDLE, S-30 COLLET CHUCK ON SUB,
SPINDLE SYNCHRONIZATION FOR SUB SPINDLE PICK-OFF,
(2) TOOL PRESETER PROBES (FOR MAIN & SUB SPINDLES),
AUTO PARTS CATCHER & PARTS CONVEYOR,
LNS QUICK LOAD SERVO S2 5' BAR FEEDER/LOADER,

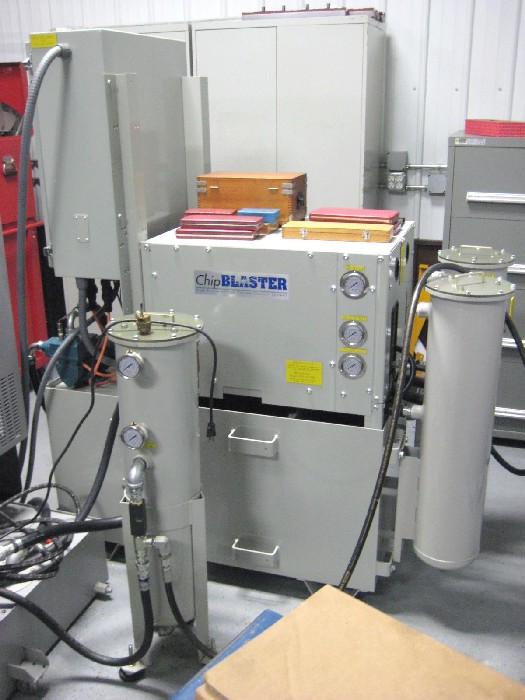

ChipBLASTER 2000 psi HIGH PRESSURE COOLANT SYSTEM,
RIGHT HAND DISCHARGE LIFT-UP TYPE CHIP CONVEYOR,
INVERTER-CONTROLLED OIL COOLER/CHILLER,

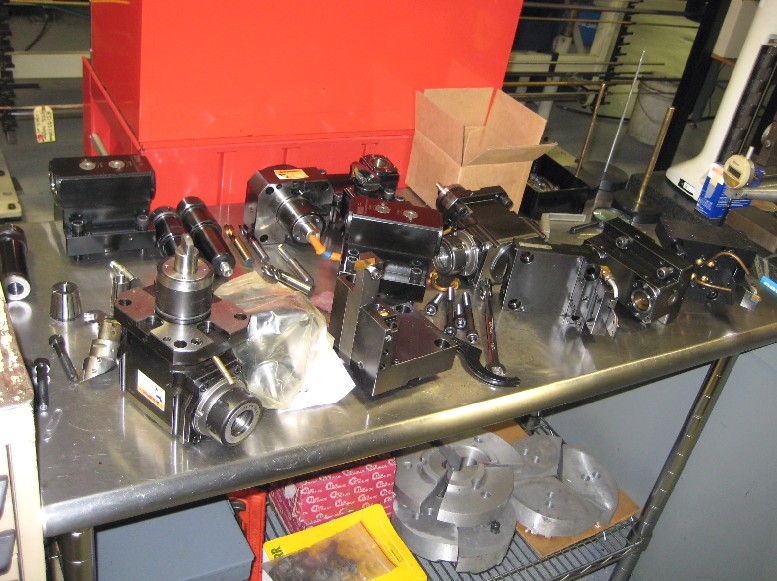

(4) LIVE TOOL HOLDERS, O.D./I.D. STATIC HOLDERS
