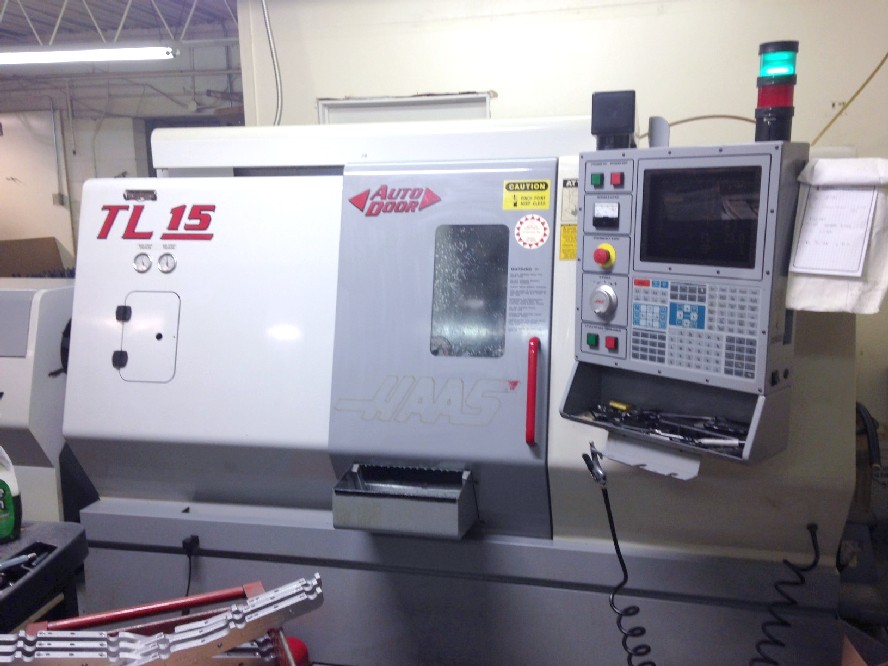

HAAS TL-15 CNC LATHE, LIVE TOOLING, SUB-SPINDLE, 23 in. x 22 in., 2 in. BAR, 4000 RPM, SERVO BAR 300 BAR FEEDER, QC

HAAS TL-15 CNC LATHE, LIVE TOOLING, SUB-SPINDLE, 23 in. x 22 in., 2 in. BAR, 4000 RPM, SERVO BAR 300 BAR FEEDER, QC

Stock Number: 4759


Click to view larger photo

Request A Quote On Our Stock Number: 4759 HAAS TL-15 CNC LATHE, LIVE TOOLING, SUB-SPINDLE, 23 in. x 22 in., 2 in. BAR, 4000 RPM, SERVO BAR 300 BAR FEEDER, QCRequest a quote on stock# 4759
SpecificationDescription
MFG DATE / INSTALLED NEW2000 / 2001
MAXIMUM SWING OVER FRONT APRON23"
SWING OVER CROSS SLIDE9.5"
MAXIMUM TURNING DIAMETER8.2"
MAXIMUM TURNING LENGTH17.5"
DISTANCE BETWEEN SPINDLES22.11" (w/CHUCKS)
X-AXIS TRAVEL7.50"
Z-AXIS TRAVEL17.50"
C-AXIS ROTATIONFULL/TRUE
SPINDLE NOSEA2-6
SPINDLE BORE3.0"
MAXIMUM BAR CAPACITY2.0"
SPINDLE SPEEDS4000 RPM
SPINDLE MOTOR20 HP
TURRET CAPACITY12 STATIONS
LIVE TOOL SPEED0 - 3000 RPM
LIVE TOOL MOTOR5 HP
SUB-SPINDLE SPEED4000 RPM
SUB-SPINDLE MOTOR8 HP
AXIS TRAVEL RAPIDS1200 IPM
DIMENSIONS, APPROX.138"L x 80"W x 74"H
MACHINE WEIGHT, APPROX.10,200 LBS

Equipped With:
HAAS DUAL 32-BIT CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
COLLET CHUCK ON MAIN & COLLET CHUCK ON SUB-SPINDLE
FULL C-AXIS ON MAIN SPINDLE, LIVE TOOLING,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
SPINDLE ORIENTATION, 8 HP SUB-SPINDLE,
CHIP REMOVAL AUGER, CUSTOM MACROS
PARTS CATCHER, TOOL PRESETTER/PROBE,
FLOPPY DISC DRIVE, QUICK CODE,
COOLANT SYSTEM WITH TANK & PUMP,
ALL AVAILABLE MANUALS,

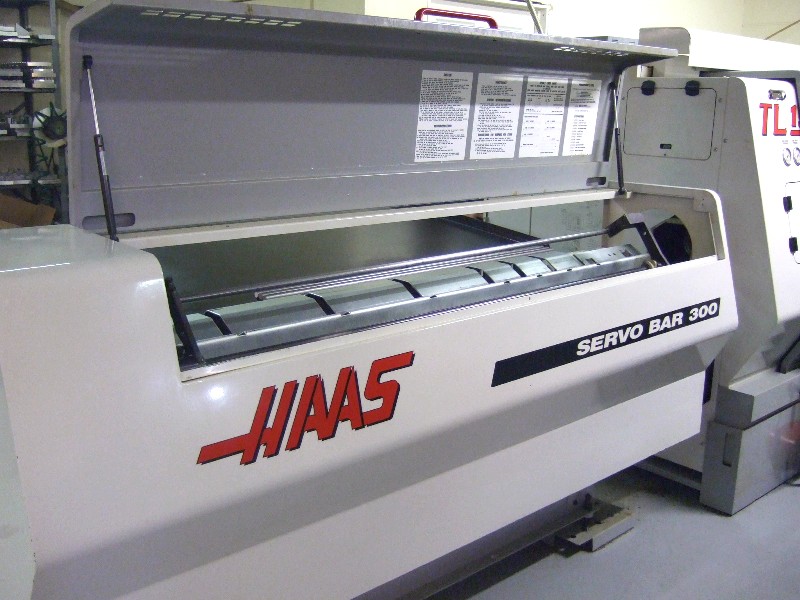

***HAAS SERVO BAR 300 BARFEEDER (1/4" - 3.1")***
