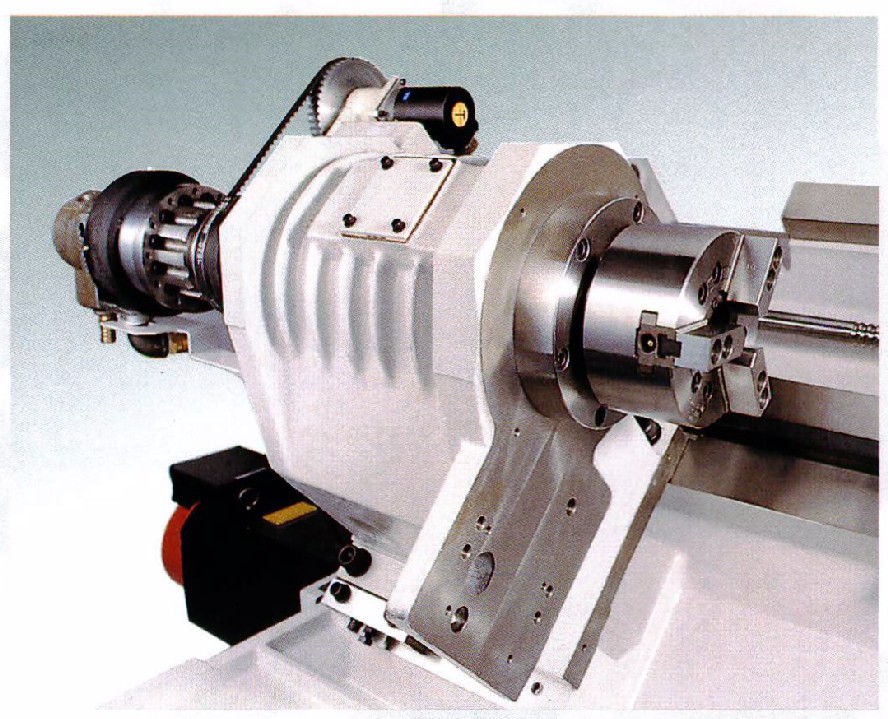

DAEWOO PUMA 400 B CNC LATHE, FANUC 18i-TB, 28 SWING, 44 CENTERS, 50 HP, CHIP, PARTS CATCHER, 2003

DAEWOO PUMA 400 B CNC LATHE, FANUC 18i-TB, 28 SWING, 44 CENTERS, 50 HP, CHIP, PARTS CATCHER, 2003

Stock Number: 4756


Click to view larger photo

Request A Quote On Our Stock Number: 4756 DAEWOO PUMA 400 B CNC LATHE, FANUC 18i-TB, 28 SWING, 44 CENTERS, 50 HP, CHIP, PARTS CATCHER, 2003Request a quote on stock# 4756
SpecificationDescription
DATE OF MANUFACTURE2003
MAXIMUM SWING OVER BED28"
SWING OVER CARRIAGE18.9"
MAXIMUM TURNING DIAMETER21.7"
MAXIMUM TURNING LENGTH41.1"
X AXIS TRAVEL14.3"
Z AXIS TRAVEL43.5"
SPINDLE BORE5.2"
MAXIMUM BAR CAPACITY4.62"
SPINDLE NOSEA2-11
SPINDLE SPEEDS (3-SPEED GEARED)5 - 2,000 RPM
SPINDLE MOTOR50 HP
TURRET CAPACITY10 STATIONS
RAPID TRAVERSE RATE630 / 790 IPM
TAILSTOCK QUILL DIAMETER4.7"
TAILSTOCK QUILL STROKE4.7"
TAILSTOCK BODY STROKE39.4"
WEIGHT, APPROX.21,200 LBS
FLOOR SPACE, APPROX.153" x 94"

Equipped With:
FANUC 18i-TB CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,

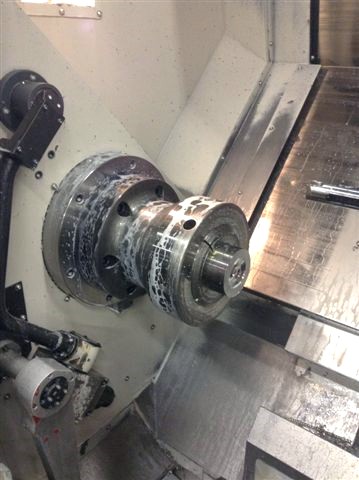

15" 3-JAW HYDRAULIC THROUGH HOLE CHUCK,
AUTO PARTS CATCHER,
RIGHT HAND DISCHARGE LIFT-UP CHIP CONVEYOR,
COOLANT SYSTEM WITH TANK & PUMP,
AUTOMATIC TOOL PRESETTER,
FULLY PROGRAMMABLE TAILSTOCK (BODY & QUILL),
ALL AVAILABLE MANUALS
