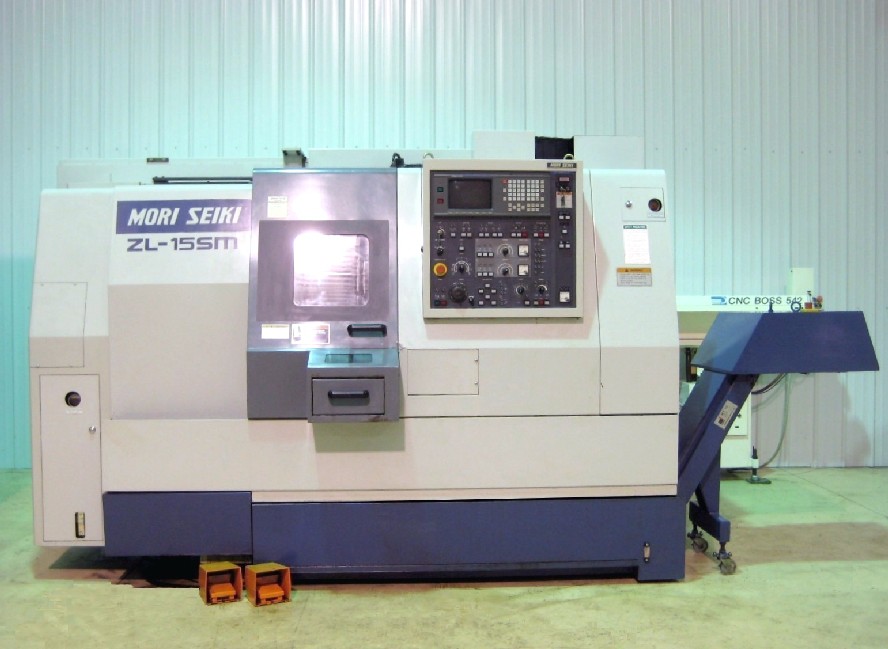

MORI SEIKI ZL-15 SMC CNC LATHE, FANUC, 18 in. SWING, 25 in. BETWEEN, LIVE TOOLIING, SUB-SPINDLE, 2-TURRETS, CATCHER,CHIP

Stock Number: 4745

Click to view larger photo

Request A Quote On Our Stock Number: 4745 MORI SEIKI ZL-15 SMC CNC LATHE, FANUC, 18 in. SWING, 25 in. BETWEEN, LIVE TOOLIING, SUB-SPINDLE, 2-TURRETS, CATCHER,CHIP

Request A Quote On Our Stock Number: 4745 MORI SEIKI ZL-15 SMC CNC LATHE, FANUC, 18 in. SWING, 25 in. BETWEEN, LIVE TOOLIING, SUB-SPINDLE, 2-TURRETS, CATCHER,CHIP

Request a quote on stock# 4745

Specification	Description
MANUFACTURED NEW	1996
SWING OVER BED / CROSS SLIDE	18.1" / 11.8"
MAX. MACHINING DIAMETER	9"
MAX. DIST. BETWEEN SPINDLE NOSES	24.6"
X AXIS TRAVEL (UPPER / LOWER)	8.7" / 7.7"
Z AXIS TRAVEL (UPPER / LOWER)	17.7" / 15.3"
RAPID TRAVERSE RATE X AXES	472 IPM
RAPID TRAVERSE RATE Z AXES	590 IPM
SPINDLE INDEXING (FULL)	0.001 DEG. C-AXIS
SPINDLE SPEEDS (MAIN & SPINDLE)	50 - 5,000 RPM
SPINDLE SPEEDS (SUB SPINDLE)	60 - 5,000 RPM
SPINDLE NOSE, MAIN	A2-5
SPINDLE BORE (MAIN / SUB)	2.0" / 1.4"
SPINDLE MOTOR (MAIN / SUB)	15 HP / 7.5 HP
MAXIMUM BAR CAPACITY, SPINDLE	1.67"
TURRET CAPACITY (UPPER / LOWER)	12 / 6 STATION TURRET
ROTARY LIVE TOOL SPINDLE SPEED	80 - 2,000 RPM
DIMENSIONS, APPROX.	157" x 73" x 80"
WEIGHT, APPROX.	13,200 LBS

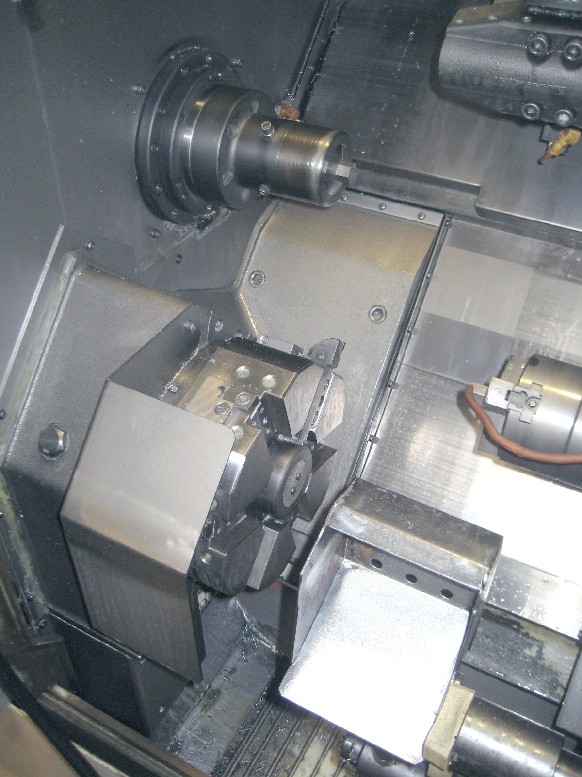

Equipped With:
MORI MSC-516 (FANUC 16T) CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
AUTO PARTS CATCHER, EJECTOR ON SUB SPINDLE,
16C COLLET CHUCK ON MAIN SPINDLE, LIVE TOOLING,
4" 3-JAW CHUCK ON SUB SPINDLE, (2) TURRETS,
SPINDLE SYNCHRONIZATION, BARFEED INTERFACE,
RIGHT HAND DISCHARGE LIFT-UP TYPE CHIP CONVEYOR,
COOLANT SYSTEM WITH TANK & PUMP,
ALL AVAILABLE TOOL HOLDERS, ALL AVAILABLE MANAULS,
***TWIN-SPINDLE & TWIN-TURRET FOR COMPLETE
SYNCHRONOUS-MACHINING/DUAL-PROCESSING***
