OKUMA MULTUS B300 C CNC LATHE, BIG BORE, 25 SWING, 44 CC, LIVE TOOL TILT SWIVEL MILLING HEAD, 30 HP, TOOL CHANGER, 2006

OKUMA MULTUS B300 C CNC LATHE, BIG BORE, 25 SWING, 44 CC, LIVE TOOL TILT SWIVEL MILLING HEAD, 30 HP, TOOL CHANGER, 2006

Stock Number: 4741


Click to view larger photo

Request A Quote On Our Stock Number: 4741 OKUMA MULTUS B300 C CNC LATHE, BIG BORE, 25 SWING, 44 CC, LIVE TOOL TILT SWIVEL MILLING HEAD, 30 HP, TOOL CHANGER, 2006Request a quote on stock# 4741
SpecificationDescription
MANUFACTURE DATE / INSTALLED NEW2006 / 2007
MAX. SWING OVER CARRIAGE24.8"
MAX. MACHINING DIAMETER17.72"
DISTANCE BETWEEN CENTERS43.43" (w/CHUCK)
X AXIS TRAVEL22.05"
Y AXIS TRAVEL6.3" (+/- 3.15")
Z AXIS TRAVEL36.81"
C AXIS (SPINDLE INDEXING POS. ROTATION)0.001 DEG. (FULL CONT.)
ROTARY MILLING SPINDLE POSITIONS0.001 DEG. (INDEX/ROT.)
ROTARY MILLING SPINDLE SPEEDS50 - 6000 RPM
ROTARY MILLING SPINDLE MOTOR15 HP
B AXIS (TILTING LIVE "H1" ROTARY HEAD)225 DEG. ADJUST. ANGLE
RAPID TRAVERSE RATE X & Z AXES1575 IPM
MAIN SPINDLE MOTOR30 HP
MAIN SPINDLE SPEEDS38 - 3800 RPM
MAIN SPINDLE BORE / BAR CAPACITY3.15" / 2.77"
MAIN SPINDLE NOSEA2-8
TOOL CHANGER MAGAZINE CAPACITY40 STATION ATC
DIMENSIONS, APPROX.148"L x 81"W x 99"H
WEIGHT, APPROX.22,400 LBS

Equipped With:
OKUMA OSP P200L "THINC" FULL CONVERSATIONAL CNC
CONTROL w/40 GB HARD DRIVE & 3D COLOR ANIMATION ,
ETHERNET & USB PORTS INTERFACES FOR DNC OPERATION,

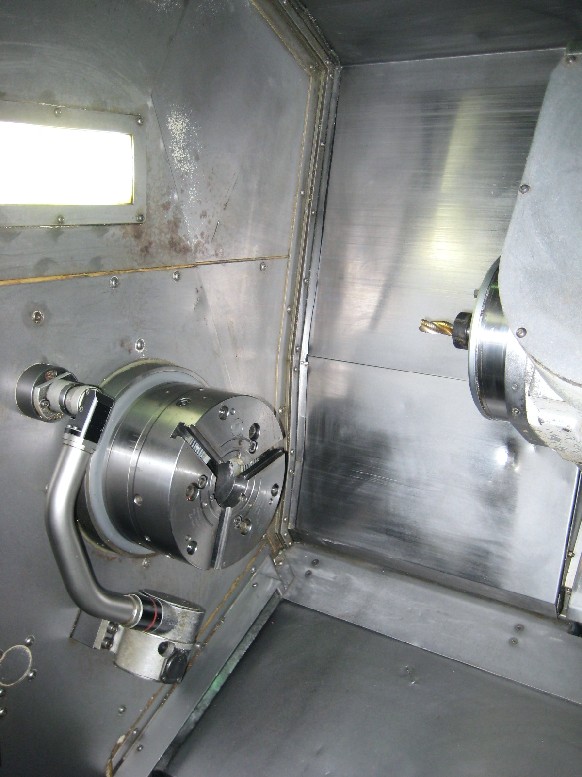

10" 3-JAW HYDRAULIC CHUCK, HELICAL & SLOPE CUTTING,
"BIG BORE" (30 HP) SPINDLE OPTION (INTEGRAL DIRECT DRIVE),
PROGRAMMABLE TAILSTOCK, MAC-MAN UTILIZATION MONITOR,

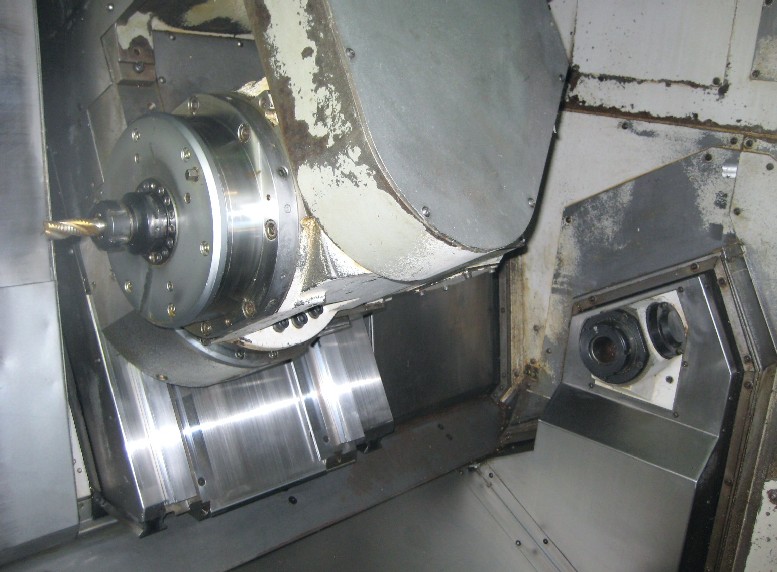

15 HP TILTING/SWIVEL LIVE TOOL HEAD/SPINDLE (H1 TURRET),
SLANT CUTTING w/B-AXIS, REMOTE JOG HANDLE/WHEEL,
TOUCHSETTER-M TOOL EYE (AUTOMATIC TOOL PRESETTER ARM),
AUTO-TOOL CHANGER (40 STATIONS), X-Y PLANE CONVERSION,
THRU-SPINDLE COOLANT SYSTEM (STANDARD PRESSURE),
EXTERNAL CHIP CONVEYOR, OIL COOLER FOR BOTH SPINDLES,
RIGID SYNCHRO. TAPPING, CAPTO-C6 TOOLHOLDING SYSTEM,
***ELIMINATES REPETITIVE TOOL-TURRET FIXTURING***
