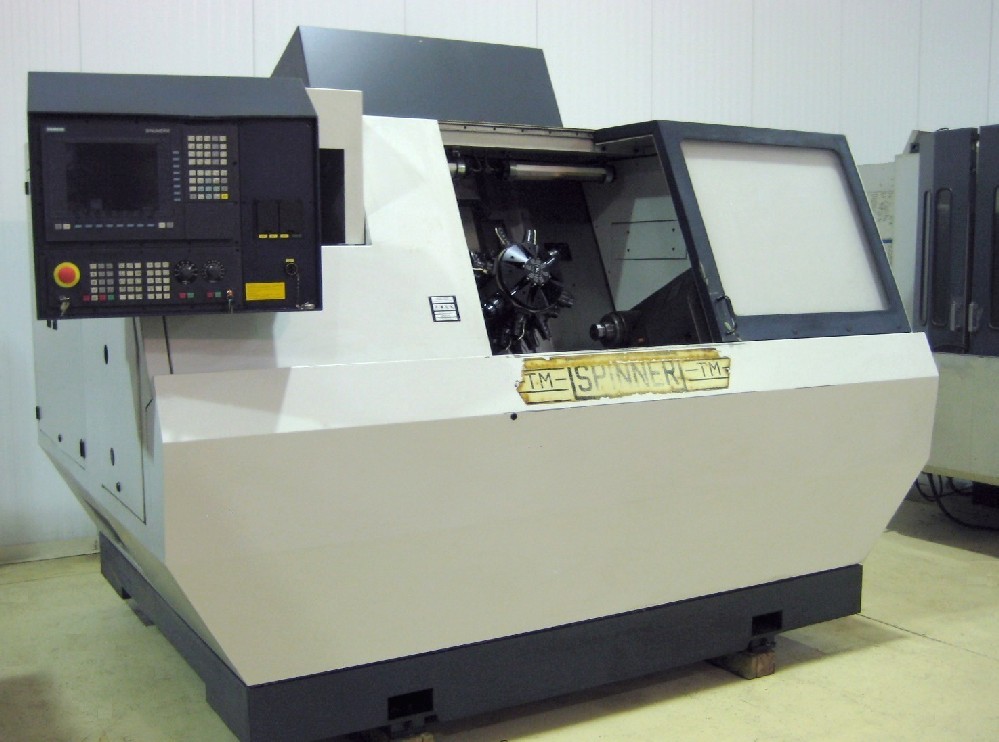

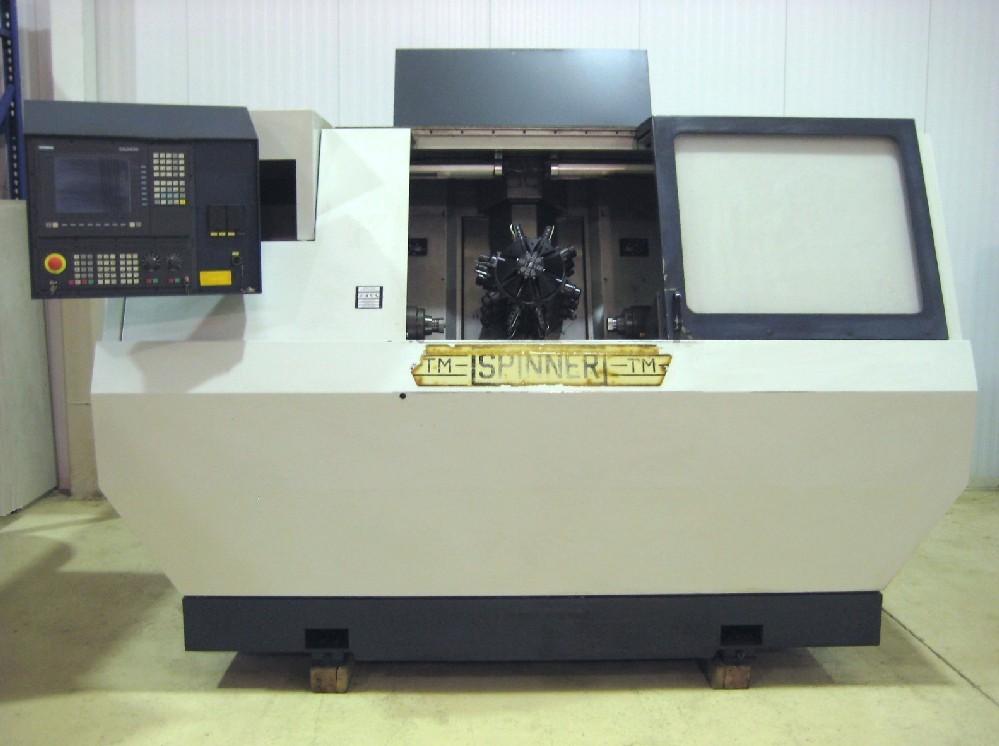

SPINNER TM 42 CNC LATHE MILL, 7 AXIS SWISS, LIVE TOOL, 1.65 in. BAR, Y AXIS, 34 in. SPINDLE DIST., 24 TURRET, 15 HP , B

SPINNER TM 42 CNC LATHE MILL, 7 AXIS SWISS, LIVE TOOL, 1.65 in. BAR, Y AXIS, 34 in. SPINDLE DIST., 24 TURRET, 15 HP , B

Stock Number: 4730


Click to view larger photo

Request A Quote On Our Stock Number: 4730 SPINNER TM 42 CNC LATHE MILL, 7 AXIS SWISS, LIVE TOOL, 1.65 in. BAR, Y AXIS, 34 in. SPINDLE DIST., 24 TURRET, 15 HP , BRequest a quote on stock# 4730
SpecificationDescription
MANUFACTURED NEW / INSTALLED1998 / 1999
DISTANCE BETWEEN OPPOSING SPINDLES33.5" (850 mm)
SWING OVER BED/WAY COVERS12.25" (310 mm)
MAXIMUM MACHINING DIAMETER3.1" (80 mm) interference-free
X AXIS TRAVEL (TURRET UP & DOWN)15.7" (400 mm)
Y AXIS TRAVEL (TURRET IN & OUT)11.8" (300 mm)
Z1 AXIS TRAVEL (LEFT SPINDLE)16.7" (425 mm)
Z2 AXIS TRAVEL (RIGHT SPINDLE)16.7" (425 mm)
RAPID TRAVERSE RATE X, Y, Z AXIS787 IPM
LEAST INPUT INCREMENT X, Y, Z AXIS0.00004" RESOLUTION

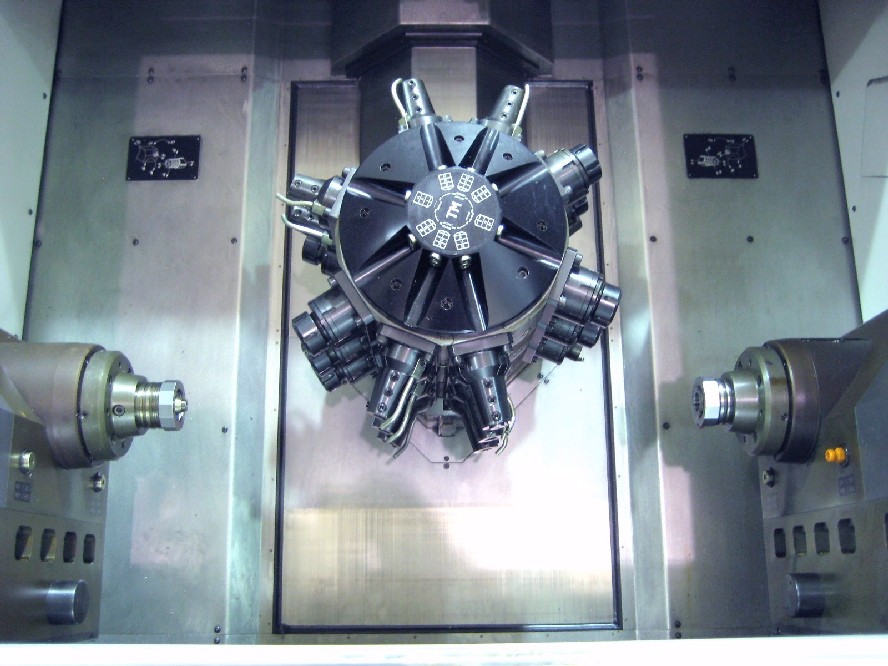

TURRET CAPACITY, TOOLS24 STATIONS (18 LIVE)
B AXIS ROTATION (TURRET)0.0001 DEG. to 360,000 DEG.
C1 & C2 ROTATION (SPINDLES)0.0001 DEG. to 360,000 DEG.
SPINDLE MOTORS, EACH15 HP (11 kW)
SPINDLE BAR CAPACITY1.65" (42 mm)
SPINDLE SPEED6000 RPM
DIMENSIONS, APPROX.124"L x 96"W x 95"H
MACHINE WEIGHT, APPROX.16,535 LBS (7,500 kg)

Equipped With:

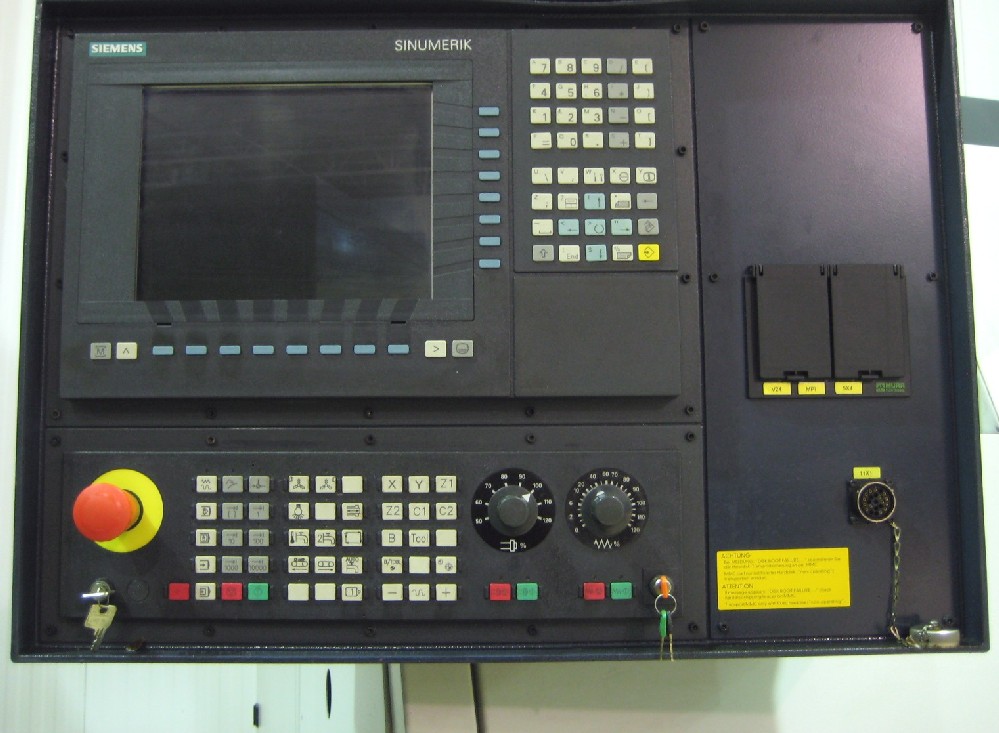

SIEMENS 840D CNC CONTROL (COLOR), ALL AVAILABLE MANUALS,
RS-232C PORT INTERFACE FOR DNC COMMUNICATIONS,
OFF-CENTER COMPLEX MULTI-ANGLE MILLING & DRILLING,
5C COLLET CHUCKS ON BOTH SPINDLES (Z1 & Z2), w/PART PICK-OFF,
(9) LIVE TOOL HOLDERS & (15) STATIC TOOL HOLDERS,
AUTO/PROGRAMMABLE PARTS CATCHER, BAR FEEDER/LOADER INTERF
SIMULTANEOUS CUT OPERATIONS BY EACH SPINDLE (Z1 & Z2),
BRAKES FOR C-AXIS (SPINDLE) FOR HEAVY DUTY MILLING,
HIGH-PRESSURE COOLANT SYSTEM w/PRESSURE VESSEL, TANK & PUMP,
REAR DISCHARGE LIFT-UP TYPE CHIP CONVEYOR,
PROGRAMMABLE SPINDLE-FLUSH w/COOLANT w/SPINDLE CHILLER,
(999) TOOL OFF-SETS, CONIC/CURVED THREAD CUTTING CYCLES,
REMOTE CONTROL HAND WHEEL/GENERATOR, BRUSHLESS AC MOTORS,
TOOL MONITORING SYSTEM FOR BREAK & WEAR, (5) DRAW TUBES,
4 AXIS INTERPOLATION FEATURE, CONVERSATIONAL PROGRAMMING,
FULLY PROGRAMMABLE CLAMPING FORCE & STROKE OF CYLINDER
