HITACHI SEIKI HITEC-TURN 20S II CNC LATHE, 10 in CHUCK, 10 TURRET, 15 HP, CHIP CONVEYOR & TAIL, SEICOS-L MULTI CTRL, '93

HITACHI SEIKI HITEC-TURN 20S II CNC LATHE, 10 in CHUCK, 10 TURRET, 15 HP, CHIP CONVEYOR & TAIL, SEICOS-L MULTI CTRL, '93

Stock Number: 4712


Click to view larger photo

Request A Quote On Our Stock Number: 4712 HITACHI SEIKI HITEC-TURN 20S II CNC LATHE, 10 in CHUCK, 10 TURRET, 15 HP, CHIP CONVEYOR & TAIL, SEICOS-L MULTI CTRL, '93Request a quote on stock# 4712
SpecificationDescription
MANUFACTURED NEW1993
SWING OVER BED15"
MAXIMUM TURNING DIAMETER8.25"
DISTANCE BETWEEN CENTERS24"
MAXIMUM TURNING LENGTH15"
X AXIS TRAVEL7.9"
Z AXIS TRAVEL15.75"
TURRET CAPACITY10 STATION
TURRET INDEX TIME (1 STATION)0.1 SECONDS
RAPID TRAVERSE RATE X AXIS787 IPM
RAPID TRAVERSE RATE Z AXIS945 IPM
SPINDLE NOSEA2-6
SPINDLE BORE2.3"
MAXIMUM BAR CAPACITY2"
SPINDLE SPEED30 - 5000 RPM
SPINDLE MOTOR15 HP
TAILSTOCK QUILL TAPERMT#5
TAILSTOCK BODY TRAVEL15.75
DIMENSIONS, APPROX.134" x 82" x 80"
MACHINE WEIGHT, APPROX.9,020 LBS

Equipped With:

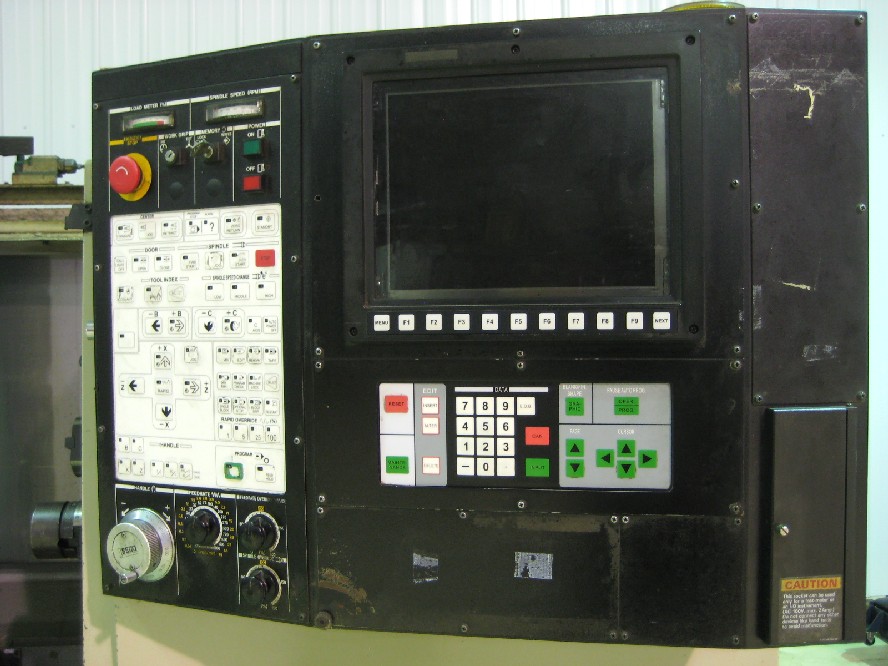

HITACHI SEIKI SEICOS-L MULTI CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
CONVERSATIONAL PROGRAMMING,

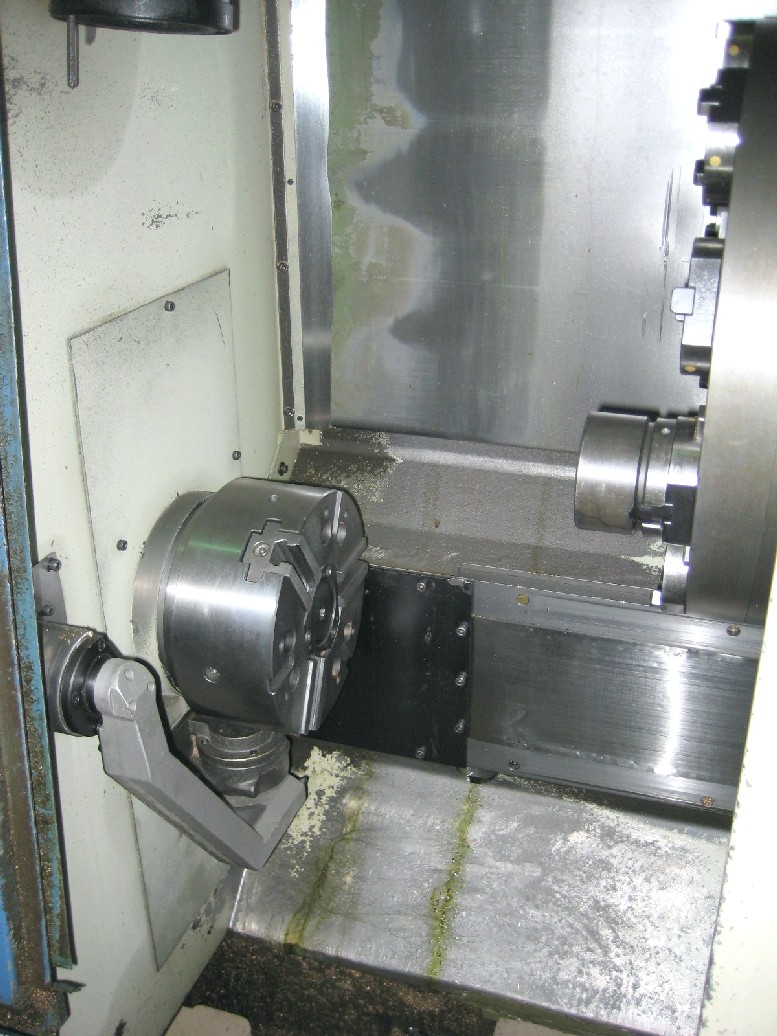

10" 3-JAW THROUGH HOLE CHUCK,
TOOL EYE (AUTOMATIC TOOL PRESETTING ARM),
FULLY PROGRAMMABLE TAILSTOCK BODY,

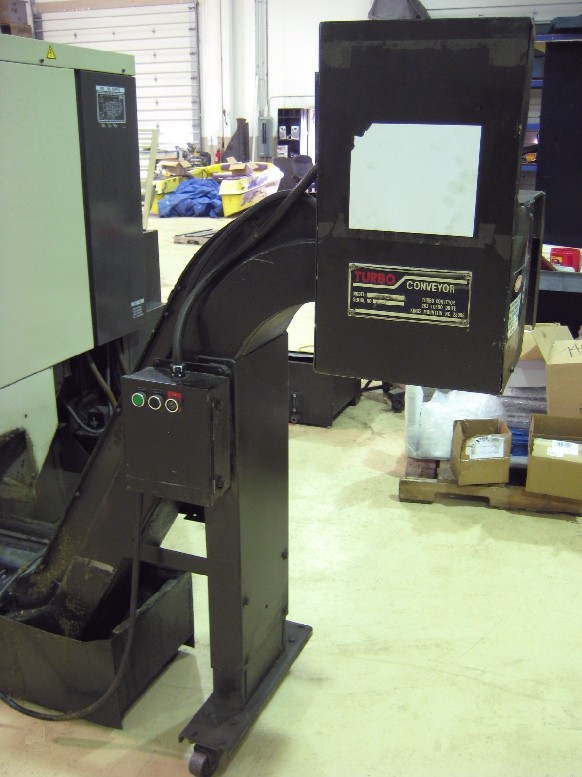

RIGHT DISCHARGE LIFT-UP TYPE CHIP CONVEYOR,

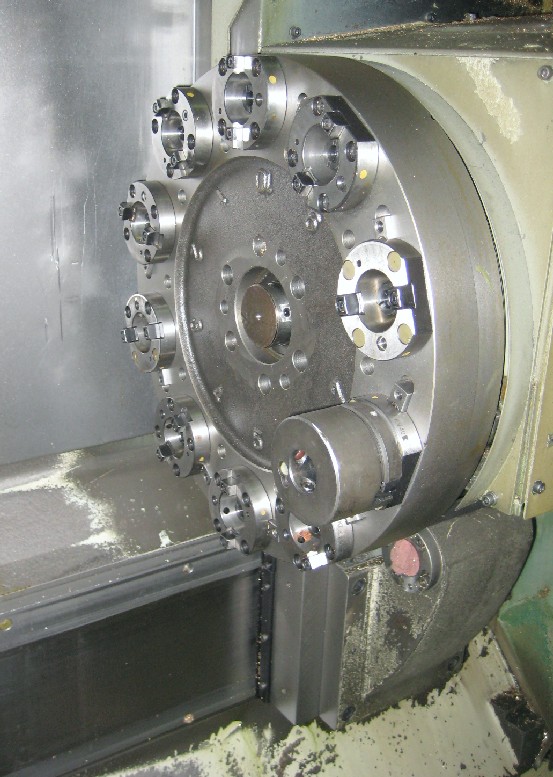

KV QUICK-CHANGE TOOL TURRET TYPE,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
ALL AVAILABLE MANUALS, ALL AVAILABLE TOOLING
