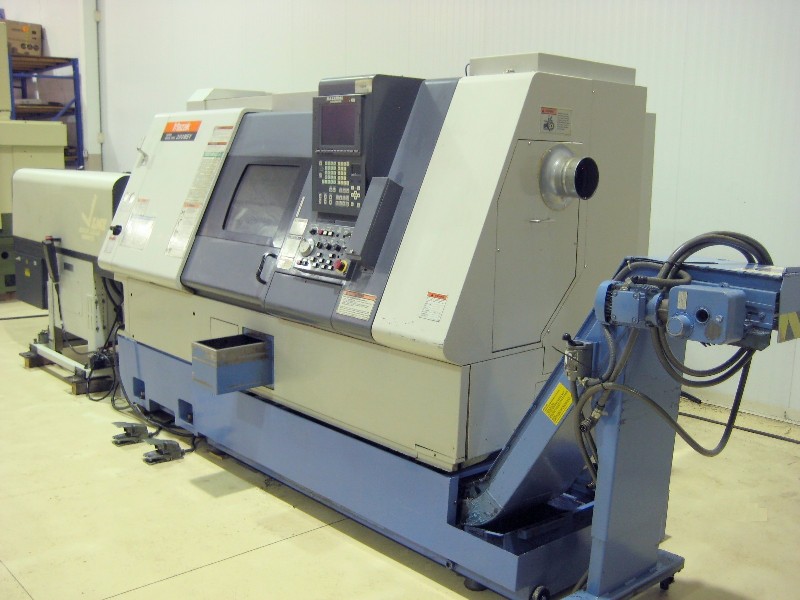

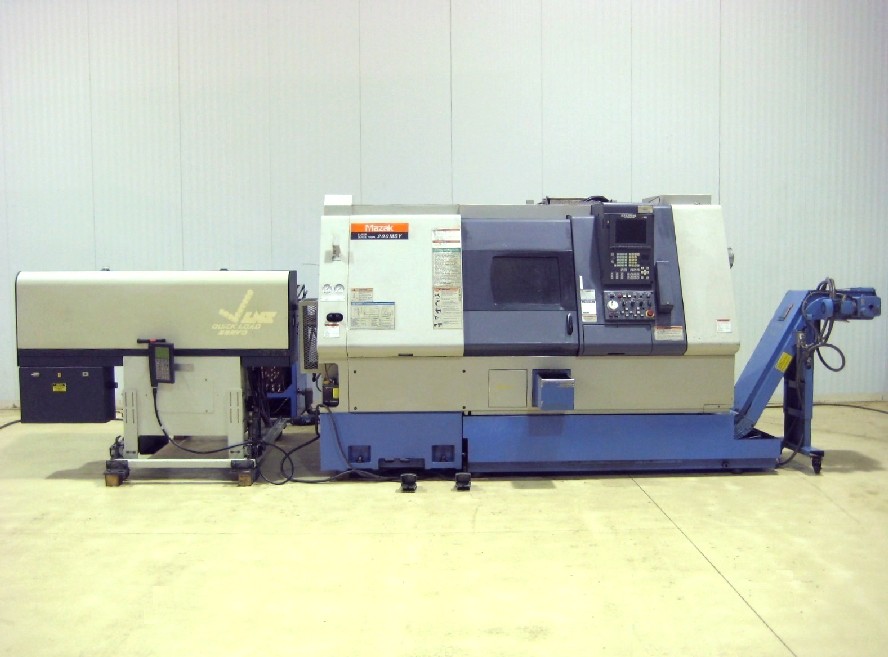

MAZAK SQT-200 MSY CNC LATHE, MAZATROL FUSION 640, 21 SW, 23 CC, LNS BAR FEED, SUB-SPINDLE, LIVE TOOL, Y AXIS, 25 HP, '00

MAZAK SQT-200 MSY CNC LATHE, MAZATROL FUSION 640, 21 SW, 23 CC, LNS BAR FEED, SUB-SPINDLE, LIVE TOOL, Y AXIS, 25 HP, '00

Stock Number: 4704


Click to view larger photo

Request A Quote On Our Stock Number: 4704 MAZAK SQT-200 MSY CNC LATHE, MAZATROL FUSION 640, 21 SW, 23 CC, LNS BAR FEED, SUB-SPINDLE, LIVE TOOL, Y AXIS, 25 HP, '00Request a quote on stock# 4704
SpecificationDescription
MFG DATE2000
MAXIMUM SWING20.67"
MAXIMUM MACHINING DIAMETER13.78"
MAXIMUM TURNING LENGTH20.23"
X AXIS TRAVEL7.48"
Y AXIS TRAVEL4", +/- 2"
Z AXIS TRAVEL22.625"
B AXIS TRAVEL (SUB-SPINDLE)23"
RAPID TRAVERSE RATE X & Z AXES1181 IPM
RAPID TRAVERSE RATE B AXIS708 IPM
SPINDLE NOSEA2-6
SPINDLE BORE2.44"
SPINDLE BAR CAPACITY2.44"
SPINDLE MOTOR25 HP
MAIN SPINDLE SPEEDS35 - 5,000 RPM

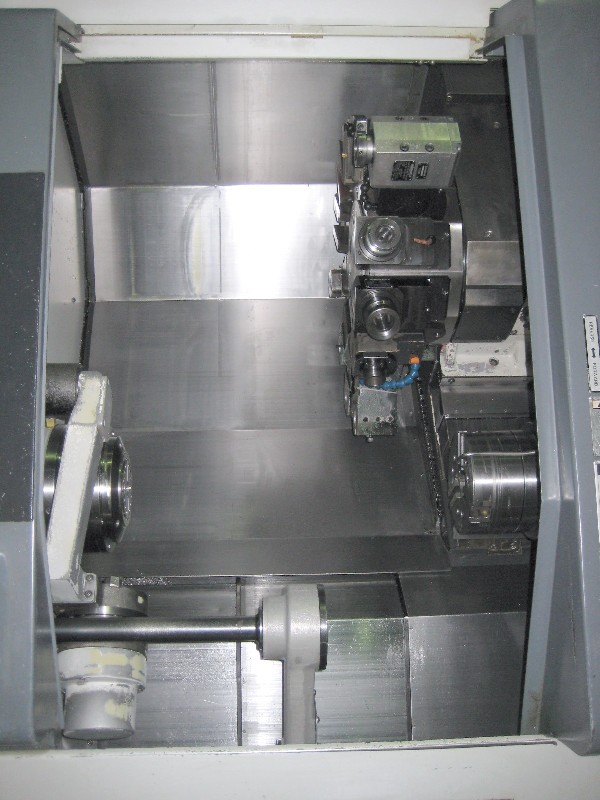

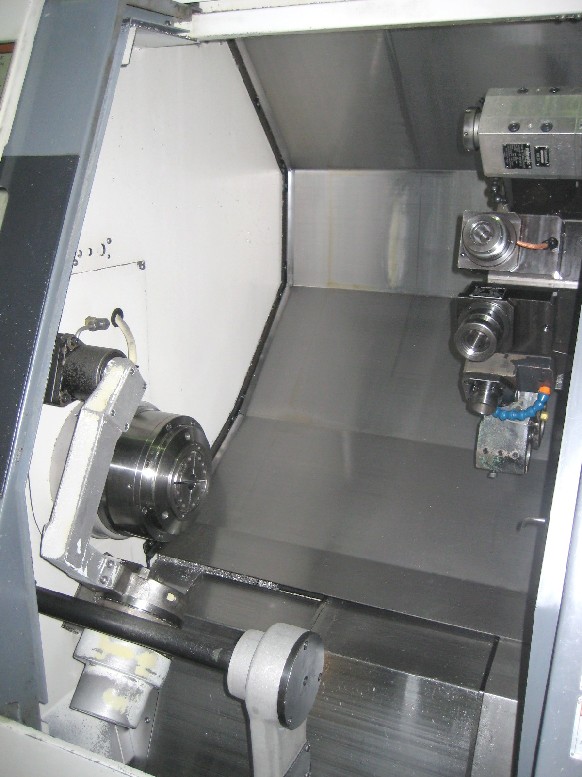

TURRET CAPACITY12 STATIONS
SUB SPINDLE NOSEA2-6
SUB SPINDLE SPEEDS35 - 5,000 RPM
SUB SPINDLE MOTOR10 HP
LIVE MILL SPINDLE SPEEDS25 - 4500 RPM
LIVE MILL SPINDLE MOTOR5 HP
MACHINE WEIGHT (APPROX.)13,350 LBS

Equipped With:
MAZATROL FUSION 640T FULL CONVERSATIONAL CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION, FLOPPY DRIVE
PRODUCTION DYNAMICS 16C COLLET CHUCK ON MAIN SPINDLE,
6.5" KITAGAWA B-206 3-JAW CHUCK ON SUB-SPINDLE,

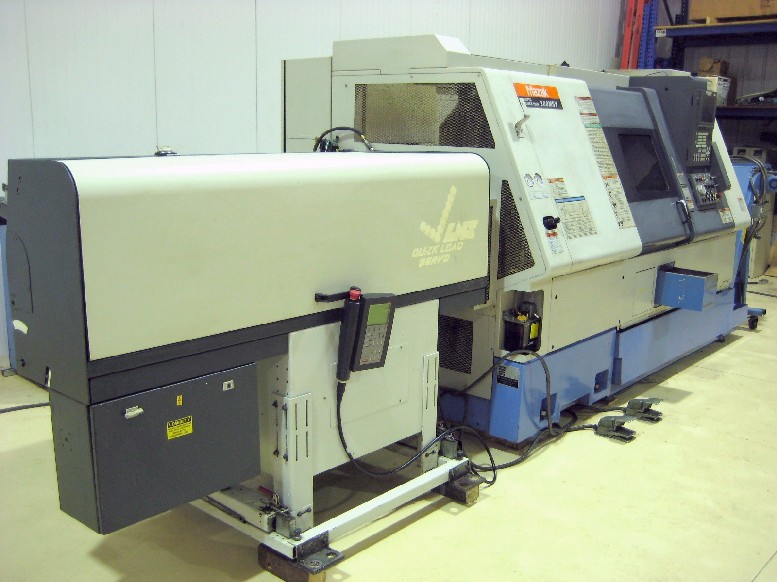

LNS QUICK LOAD SERVO 4' MAGAZINE BAR LOADER SYSTEM,
TOOL EYE (AUTOMATIC TOOL PRESETTER ARM),
LIVE TOOLING, SUB-SPINDLE, Y-AXIS TRAVEL,
AUTO PARTS CATCHER, EXTERNAL CHIP CONVEYOR,
ALL AVAILABLE TURNING TOOL BLOCK HOLDERS,
STANDARD COOLANT SYSTEM, ALL AVAILABLE MANAULS
(5) LIVE TOOL HOLDERS (2 RADIAL, 3 AXIAL)
