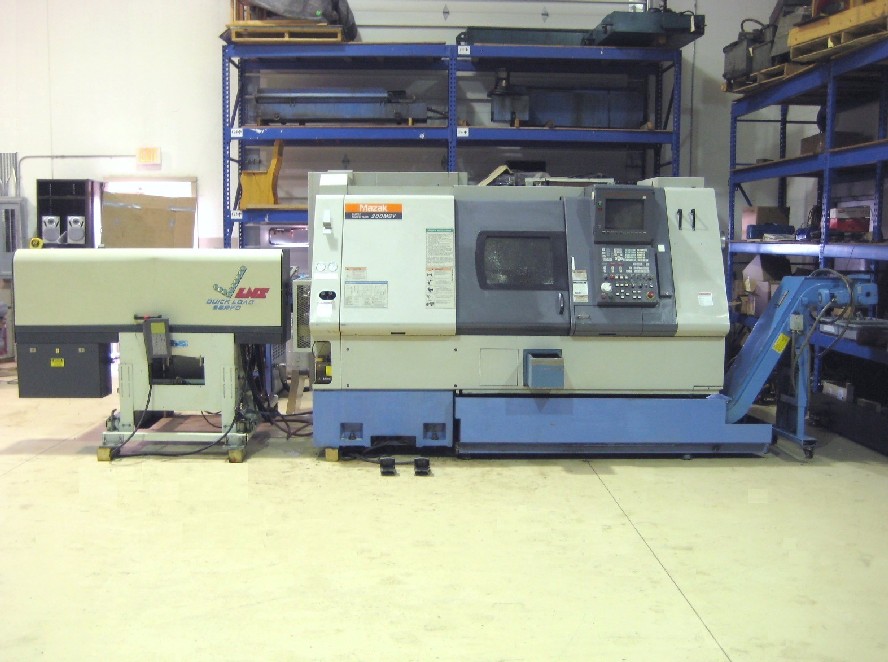

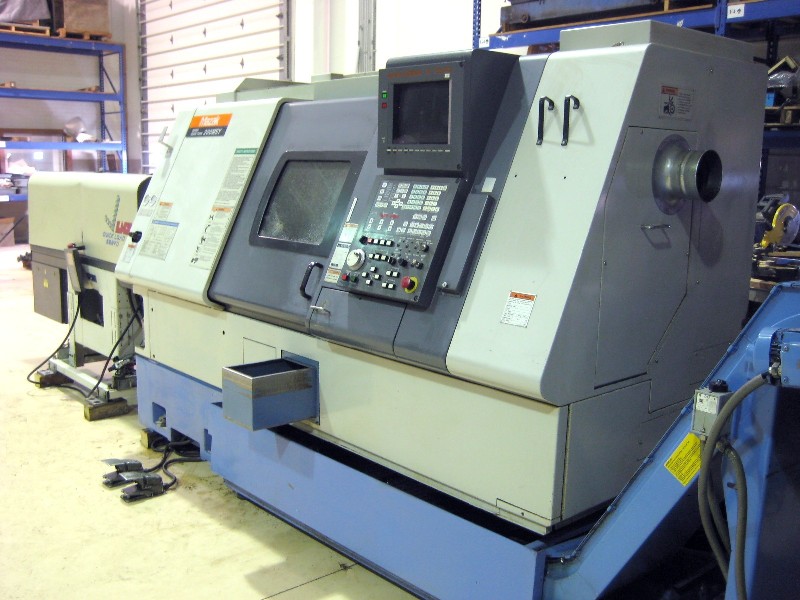

MAZAK SQT-200 MSY CNC LATHE, T-PLUS, 21 SW, 23 CC, LNS QL BAR FEEDER, SUB SPINDLE, LIVE MILLING, Y AXIS, 25 HP, '98

MAZAK SQT-200 MSY CNC LATHE, T-PLUS, 21 SW, 23 CC, LNS QL BAR FEEDER, SUB SPINDLE, LIVE MILLING, Y AXIS, 25 HP, '98

Stock Number: 4703


Click to view larger photo

Request A Quote On Our Stock Number: 4703 MAZAK SQT-200 MSY CNC LATHE, T-PLUS, 21 SW, 23 CC, LNS QL BAR FEEDER, SUB SPINDLE, LIVE MILLING, Y AXIS, 25 HP, '98Request a quote on stock# 4703
SpecificationDescription
MANUFACTURE DATE1998
MAXIMUM SWING20.67"
MAXIMUM MACHINING DIAMETER13.78"
MAXIMUM TURNING LENGTH20.23"
X AXIS TRAVEL7.48"
Y AXIS TRAVEL4", +/- 2"
Z AXIS TRAVEL22.625"
DISTANCE BETWEEN MAIN & SUB SPINDLES22.63"
SUB SPINDLE TRAVEL (B AXIS)23"
RAPID TRAVERSE RATE X & Z AXES1181 IPM
RAPID TRAVERSE RATE B AXIS708 IPM
SPINDLE INDEXING (C AXIS)0.001 DEG. (360,000 POS.)
MAIN SPINDLE NOSEA2-6
MAIN SPINDLE BORE2.44"
MAIN SPINDLE BAR CAPACITY2.1"
MAIN SPINDLE MOTOR25 HP
MAIN SPINDLE SPEEDS35 - 5,000 RPM

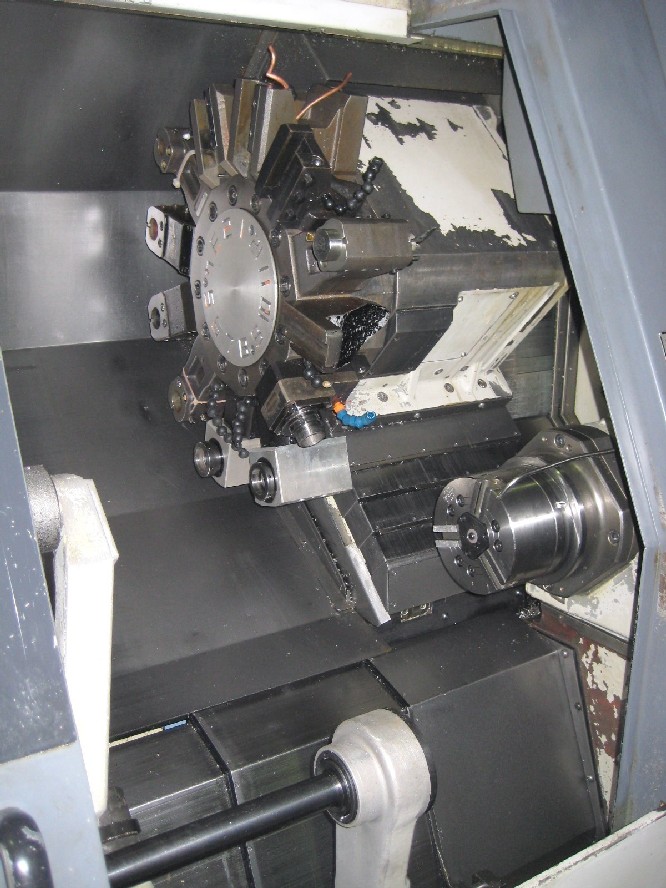

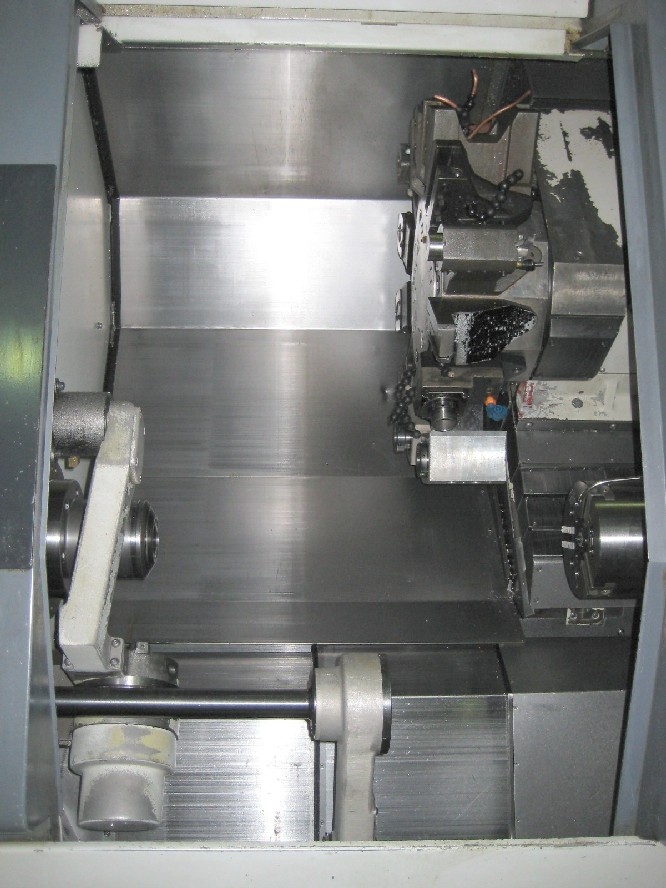

TURRET CAPACITY (QUICK; NON-LIFT)12 VDI STATIONS (SERVO)

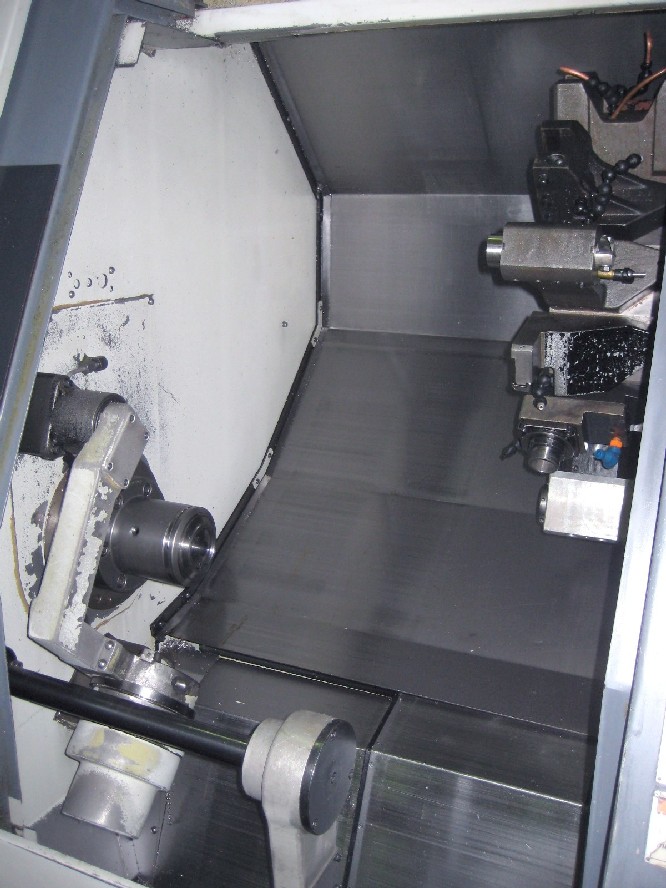

SUB SPINDLE NOSEA2-6
SUB SPINDLE SPEEDS35 - 5,000 RPM
SUB SPINDLE MOTOR10 HP
SUB SPINDLE BORE1.73"
LIVE MILL SPINDLES25 - 4500 RPM; 5 HP

Equipped With:

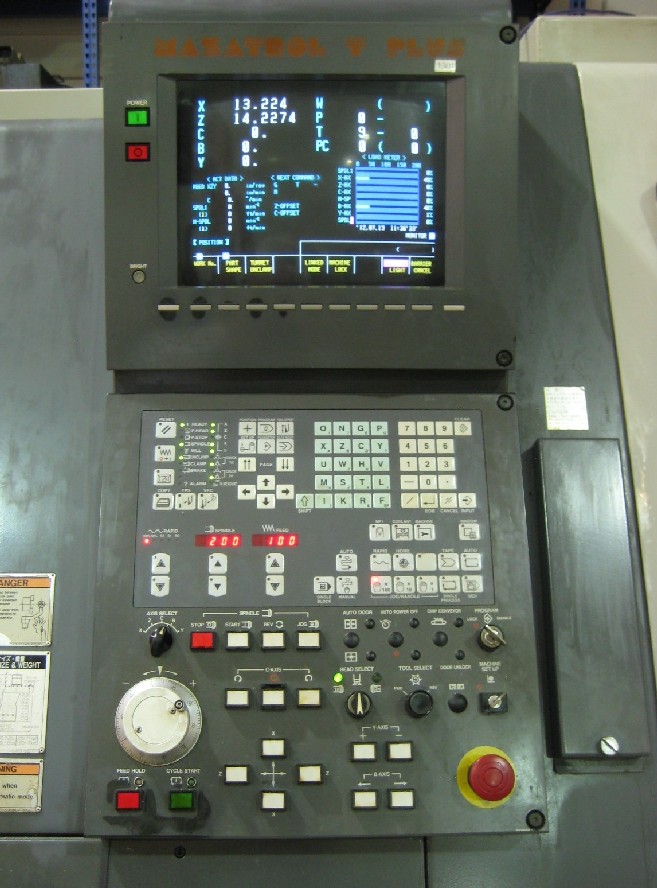

MAZATROL T-PLUS FULL CONVERSATIONAL COLOR CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
ROYAL 16C ACCULENGTH COLLET CHUCK ON MAIN SPINDLE,
6.5" KITAGAWA B-206 3-JAW CHUCK ON SUB SPINDLE,

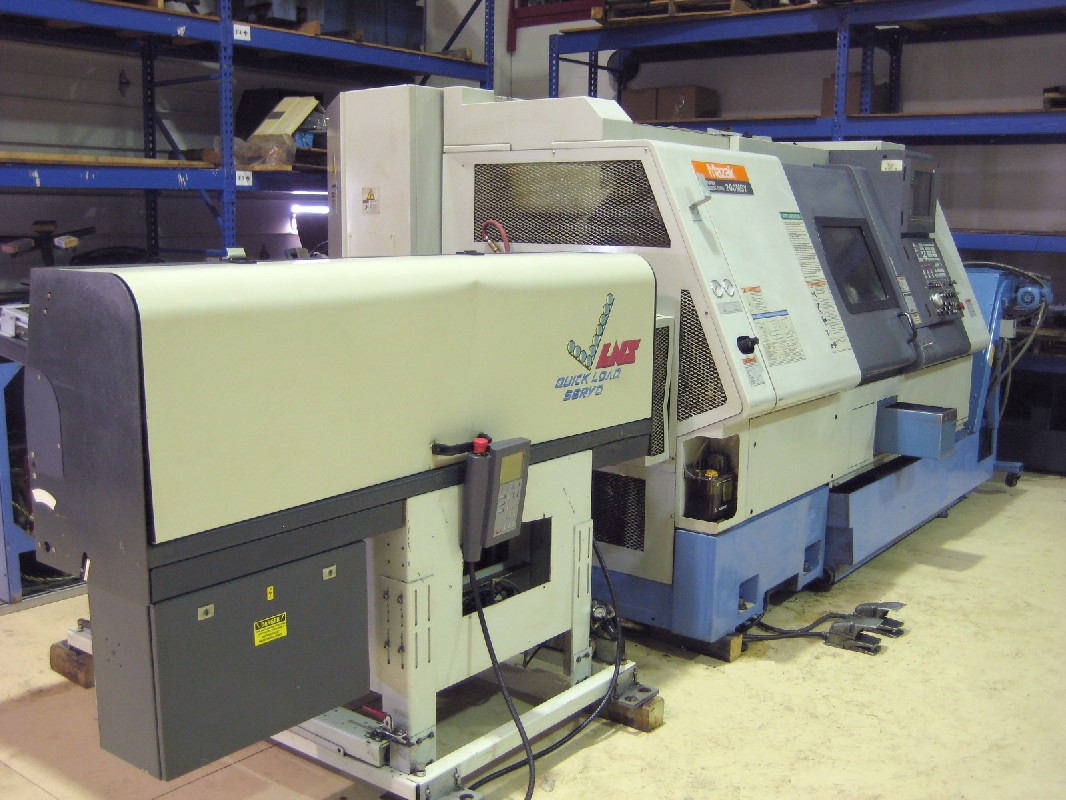

LNS QUICK LOAD SERVO 4' MAGAZINE BAR LOADER SYSTEM,
TOOL EYE (AUTOMATIC TOOL PRESETTER ARM),
LIVE TOOLING, SUB-SPINDLE, Y-AXIS TRAVEL, (5) LIVE TOOL HOLDERS
AUTO PARTS CATCHER, EXTERNAL CHIP CONVEYOR,
QUICK & ACCURATE NON-LIFT TURRET SERVO DESIGN,
ALL AVAILABLE TURNING TOOL BLOCK HOLDERS,
STANDARD COOLANT SYSTEM, ALL AVAILABLE MANAULS,
***THE SYNCHRONIZED SPINDLES ALLOWS TRANSFER OF
ROUND PARTS "ON THE FLY".
