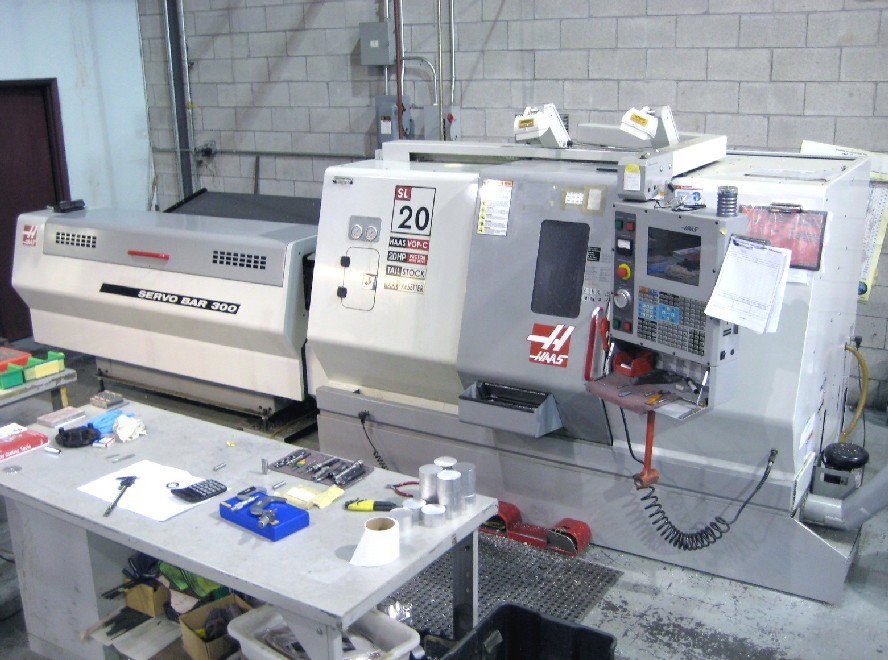

HAAS SL-20 CNC LATHE w/SERVO 300 BARFEEDER, 23 in SWING, 24 in CENTERS, 3 in SPINDLE BORE, 20 HP, 4000 RPM, TAIL, 2004
Stock Number: 4680
Click to view larger photo
Request a quote on stock# 4680
| Specification | Description |
|---|
| MANUFACTURED NEW | 10/2004 |
| MAXIMUM SWING OVER FRONT APRON | 23" |
| SWING OVER CROSS SLIDE | 9.5" |
| MAXIMUM CUTTING DIAMETER | 10.3" |
| MAXIMUM CUTTING LENGTH | 20" |
| DISTANCE BETWEEN CENTERS | 24" |
| X AXIS TRAVEL | 8.45" |
| Z AXIS TRAVEL | 20" |
| RAPID TRAVERSE RATE X AXIS | 1200 IPM |
| RAPID TRAVERSE RATE Z AXIS | 1200 IPM |
| SPINDLE BORE | 3.0" |
| MAX. BAR CAPACITY | 2.06" |
| SPINDLE NOSE | A2-6 |
| SPINDLE SPEED | 40 - 4,000 RPM |
| SPINDLE MOTOR | 20 HP |

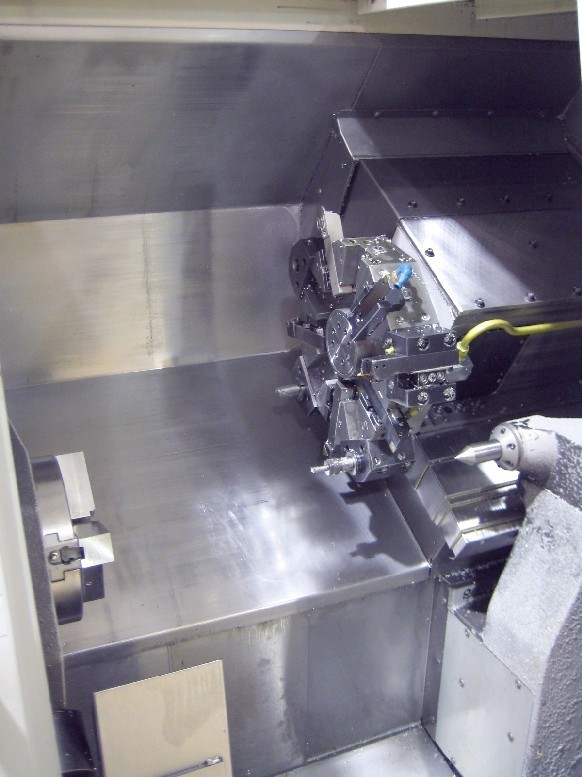

| TURRET CAPACITY | 10 STATIONS, BOLT-ON |
| TAILSTOCK QUILL TAPER | MT #4 |
| TAILSTOCK BODY TRAVEL | 20" |
| DIMENSIONS, APPROX. | 124" x 70" x 72" |
| WEIGHT, APPROX. | 10,000 LBS |
Equipped With:

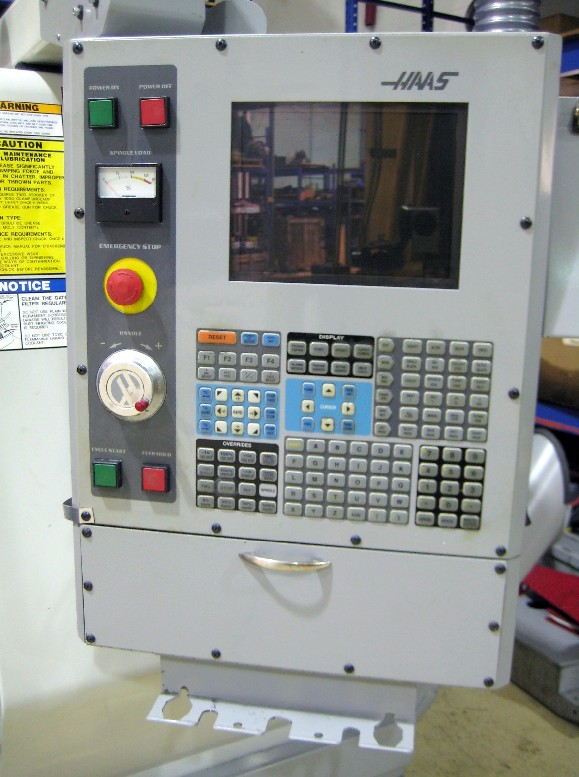

HAAS TRIPLE HIGH-SPEED CNC CTRL w/15" COLOR LCD,
RS-232C PORT INTERFACE FOR DNC OPERATION,

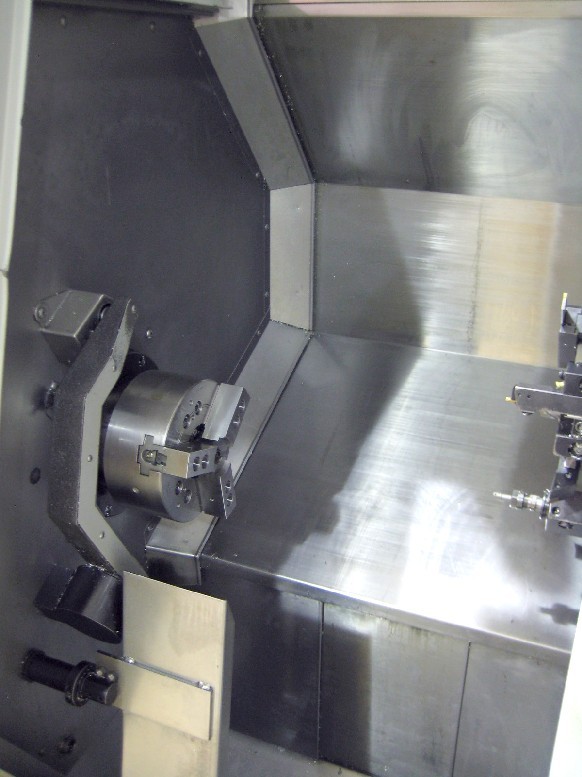

8" 3-JAW HYDRAULIC THROUGH HOLE CHUCK W/JAWS,
TOOL PRESETTER ARM, QUICK CODE PROGRAMMING,
AUTO PARTS CATCHER, PROGRAMMABLE TAILSTOCK,
CHIP REMOVAL AUGER, 1 MB MEMORY UPGRADE,
SPINDLE ORIENTATION, CUSTOM MACROS,
BARFEED INTERFACE, FLOPPY DISC DRIVE,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
DUAL HIGH INTENSITY LIGHTING,
STANDARD COOLANT SYSTEM WITH TANK AND PUMP,

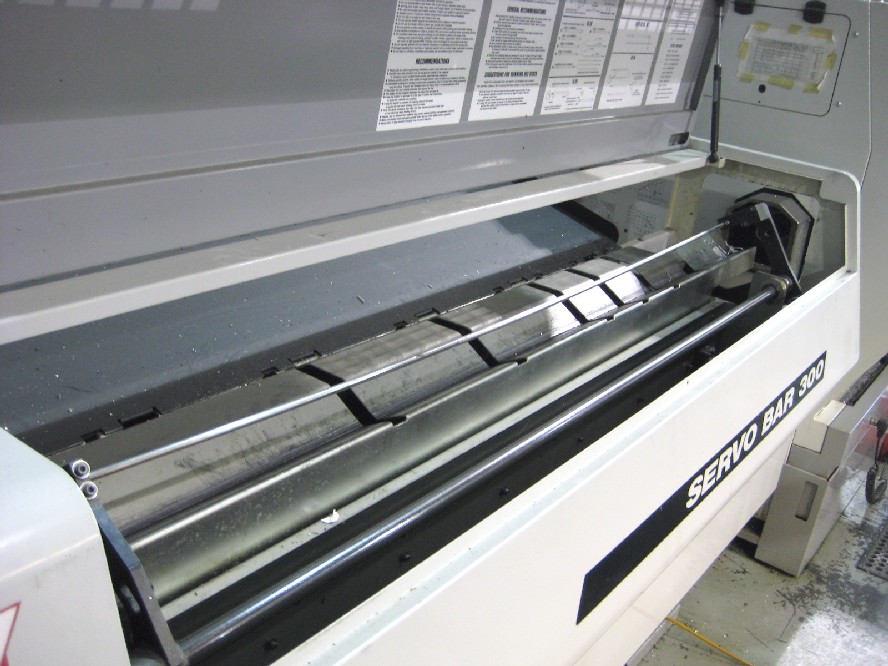

***SERVO BAR 300 BAR FEEDER (0.25"- 3.13" DIA. x 60"L)
