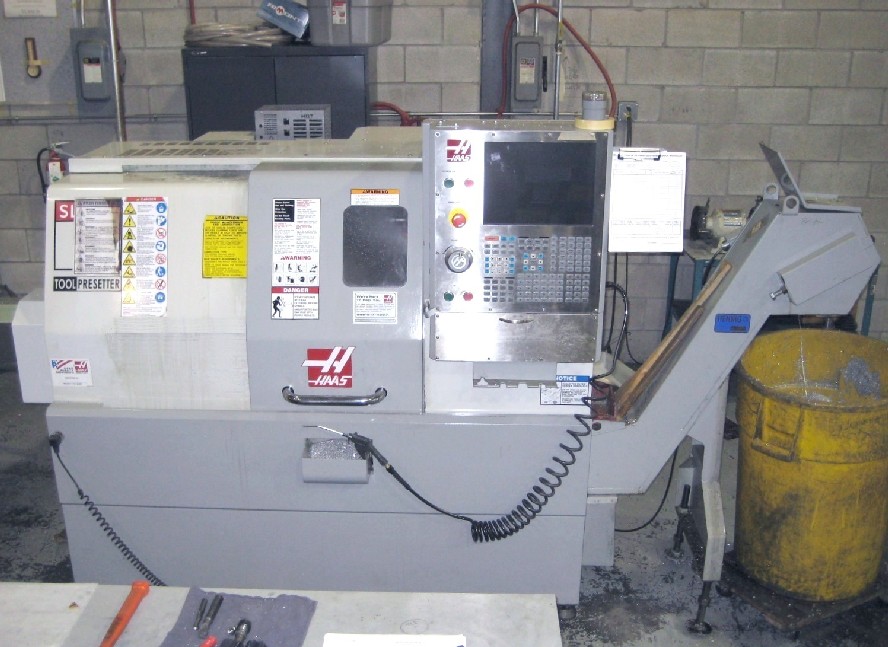

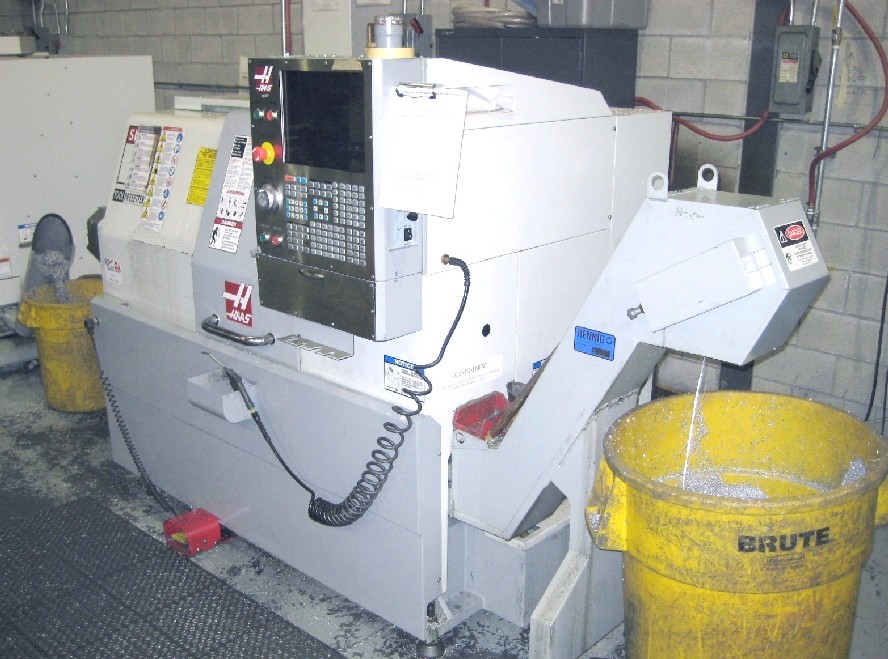

CNC TURNING CENTERS: HAAS SL-10 CNC LATHE, 16 in. SW, 14 in. LENGTH, 6.5 in. CHUCK, TOOL PRESETTER, CHIP CONVEYOR, 6000 RPM, 15 HP, NEW 2006

HAAS SL-10 CNC LATHE, 16 in. SW, 14 in. LENGTH, 6.5 in. CHUCK, TOOL PRESETTER, CHIP CONVEYOR, 6000 RPM, 15 HP, NEW 2006

Stock Number: 4679

CNC TURNING CENTERS: HAAS SL-10 CNC LATHE, 16 in. SW, 14 in. LENGTH, 6.5 in. CHUCK, TOOL PRESETTER, CHIP CONVEYOR, 6000 RPM, 15 HP, NEW 2006, Click to view larger photo...       CNC TURNING CENTERS: HAAS SL-10 CNC LATHE, 16 in. SW, 14 in. LENGTH, 6.5 in. CHUCK, TOOL PRESETTER, CHIP CONVEYOR, 6000 RPM, 15 HP, NEW 2006, Click to view larger photo...       CNC TURNING CENTERS: HAAS SL-10 CNC LATHE, 16 in. SW, 14 in. LENGTH, 6.5 in. CHUCK, TOOL PRESETTER, CHIP CONVEYOR, 6000 RPM, 15 HP, NEW 2006, Click to view larger photo...       CNC TURNING CENTERS: HAAS SL-10 CNC LATHE, 16 in. SW, 14 in. LENGTH, 6.5 in. CHUCK, TOOL PRESETTER, CHIP CONVEYOR, 6000 RPM, 15 HP, NEW 2006, Click to view larger photo...       CNC TURNING CENTERS: HAAS SL-10 CNC LATHE, 16 in. SW, 14 in. LENGTH, 6.5 in. CHUCK, TOOL PRESETTER, CHIP CONVEYOR, 6000 RPM, 15 HP, NEW 2006, Click to view larger photo...       CNC TURNING CENTERS: HAAS SL-10 CNC LATHE, 16 in. SW, 14 in. LENGTH, 6.5 in. CHUCK, TOOL PRESETTER, CHIP CONVEYOR, 6000 RPM, 15 HP, NEW 2006, Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4679 CNC TURNING CENTERS: HAAS SL-10 CNC LATHE, 16 in. SW, 14 in. LENGTH, 6.5 in. CHUCK, TOOL PRESETTER, CHIP CONVEYOR, 6000 RPM, 15 HP, NEW 2006Request a quote on stock# 4679
SpecificationDescription
DATE OF MFG (INSTALLED NEW)2006 (2007)
MAXIMUM SWING OVER FRONT APRON16.25"
SWING OVER CROSS SLIDE8"
MAXIMUM CUTTING DIAMETER11"
MAXIMUM CUTTING LENGTH14"
X AXIS TRAVEL6.25"
Z AXIS TRAVEL14"
RAPID TRAVERSE RATE X & Y AXIS1200 IPM
SPINDLE BORE2.3"
MAXIMUM BAR CAPACITY1.8"
SPINDLE SPEEDS6,000 RPM
SPINDLE MOTOR15 HP
SPINDLE NOSEA2-5
TURRET CAPACITY12 STATIONS, BOLT-ON
DIMENSIONS, APPROX.120"L(w/chip) x 55"W x 69"H
WEIGHT, APPROX.6,400 LBS

Equipped With:
HAAS TRIPLE HIGH-SPEED CNC CTRL w/15" COLOR LCD,
RS-232C PORT INTERFACE FOR DNC OPERATION,
6.5" 3-JAW HYDRAULIC THROUGH HOLE CHUCK W/JAWS,
TOOL PRESETTER ARM, SPINDLE ORIENTATION,
AUTO PARTS CATCHER, LIFT-UP CHIP CONVEYOR,
INTUITIVE PROGRAMMING SYTEM (IPS COVERSATIONAL),
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
STANDARD COOLANT SYSTEM WITH TANK AND PUMP
