STAR VNC-20 CNC AUTOMATIC SWISS LATHE, 20mm, LIVE TOOLING, SUB-SPINDLE, 6.3 in. LENGTH, 7500 RPM, FANUC

STAR VNC-20 CNC AUTOMATIC SWISS LATHE, 20mm, LIVE TOOLING, SUB-SPINDLE, 6.3 in. LENGTH, 7500 RPM, FANUC

Stock Number: 4676


Click to view larger photo

Request A Quote On Our Stock Number: 4676 STAR VNC-20 CNC AUTOMATIC SWISS LATHE, 20mm, LIVE TOOLING, SUB-SPINDLE, 6.3 in. LENGTH, 7500 RPM, FANUCRequest a quote on stock# 4676
SpecificationDescription
MFG DATE1985
MAXIMUM TURNING DIAMETER25/32" (20mm)
MAXIMUM TURNING LENGTH6.28"
(W/STATIONARY GUIDE BUSHING)8"
HEADSTOCK SPINDLE SPEED150 - 7,500 RPM
HEADSTOCK SPINDLE INDEXING15 DEG.
DRILLING/MILLING/TAPPING SPEEDS225 - 4,500 RPM
SLOTTING ATTACHMENT SPEEDS70 - 1,400 RPM
NUMBER OF TOOLS (2 TURRETS)6 STATION
TURNING TOOL SIZE0.625" x 3.0625"
FIXED DRILL SIZEMT1 MAX. 0.5469"
SPINDLE MOTOR7.5 HP
RAPID TRAVERSE RATE X AXIS315 IPM
RAPID TRAVERSE RATE Z AXIS394 IPM
MACHINE DIMENSIONS (APPROXIMATE)87" x 56" x 67"
MACHINE WEIGHT (APPROXIMATE)5,000 LBS

Equipped With:

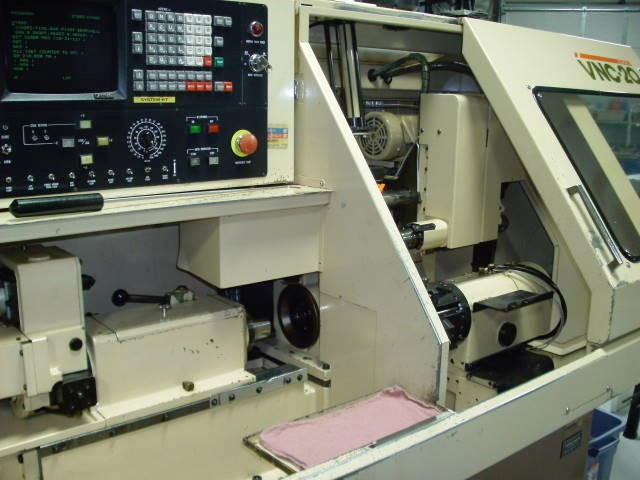

FANUC 6TB CNC CONTROL,
COLLET CHUCK/CLOSER,

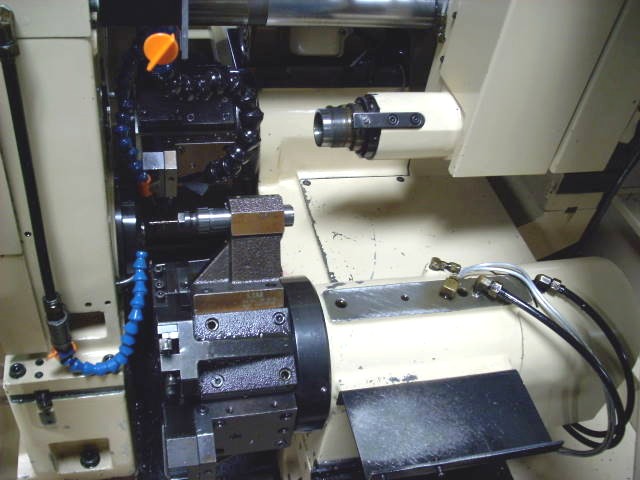

SUB-SPINDLE (PICK-OFF),
RS-232C PORT INTERFACE FOR DNC OPERATION,

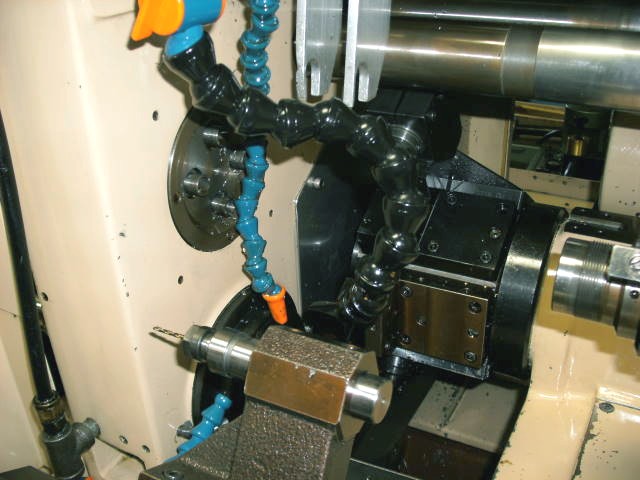

LIVE MILLING / DRILLING,

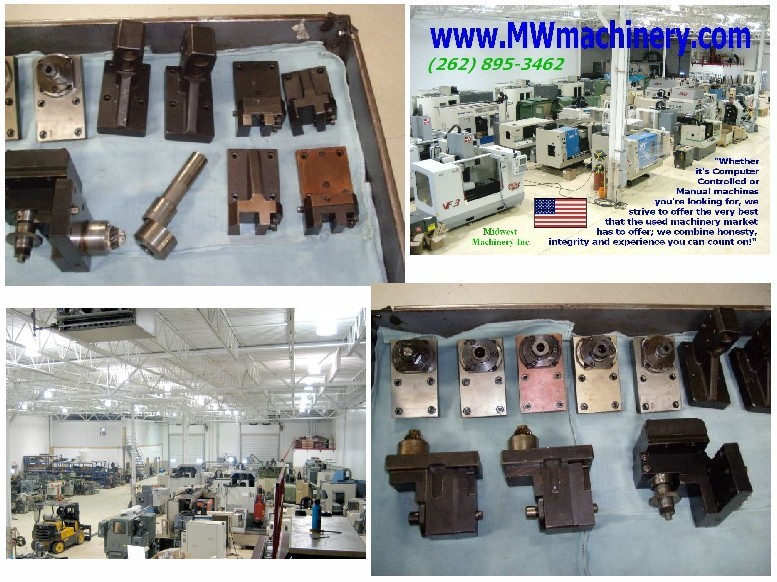

(5) LIVE CROSS DRILLING HOLDERS,
(2) LIVE END WORKING HOLDERS (OFF-CENTER DRILL/MILL),
(1) LIVE CROSS TAPPING HOLDER,
(1) LIVE SLOTTING HEAD HOLDER,
(1) LIVE MILLING HOLDER,
(9) TURNING TOOL HOLDERS,
(2) DOUBLE ER SLEEVE HOLDERS,
(2) SINGLE ER SLEEVE HOLDERS,
STAR MODEL 748 TOOL PRESETTER INCLUDED w/MACHINE,
FULLY ENCLOSED SPLASH GUARDING & ENCLOSURES,
STANDARD COOLANT SYSTEM, ALL AVAILABLE MANAULS
