CNC TURNING CENTERS: HARDINGE CONQUEST 42 SP CNC LATHE, 16C COLLET CHUCK, 20 in. SW, 14 in CENTERS, 5000 RPM, CHIP, FANUC O-T, TAILSTOCK, '91

HARDINGE CONQUEST 42 SP CNC LATHE, 16C COLLET CHUCK, 20 in. SW, 14 in CENTERS, 5000 RPM, CHIP, FANUC O-T, TAILSTOCK, '91

Stock Number: 4671

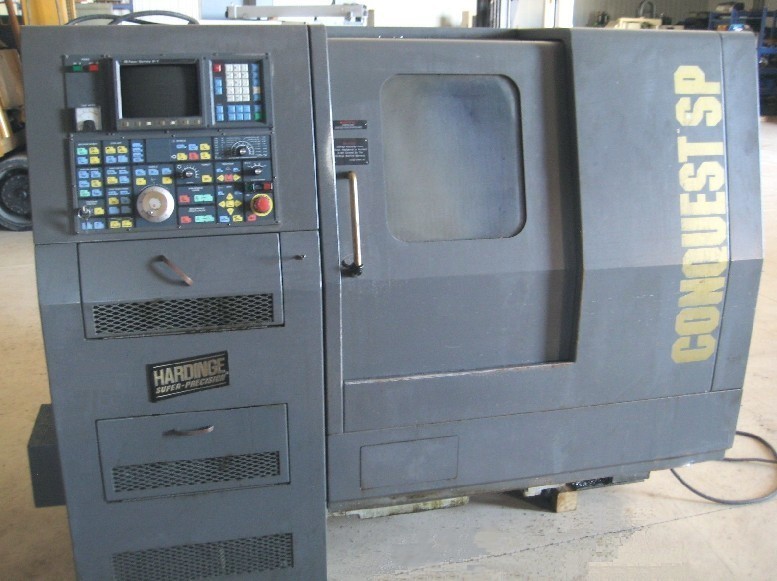

CNC TURNING CENTERS: HARDINGE CONQUEST 42 SP CNC LATHE, 16C COLLET CHUCK, 20 in. SW, 14 in CENTERS, 5000 RPM, CHIP, FANUC O-T, TAILSTOCK, '91, Click to view larger photo...       CNC TURNING CENTERS: HARDINGE CONQUEST 42 SP CNC LATHE, 16C COLLET CHUCK, 20 in. SW, 14 in CENTERS, 5000 RPM, CHIP, FANUC O-T, TAILSTOCK, '91, Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4671 CNC TURNING CENTERS: HARDINGE CONQUEST 42 SP CNC LATHE, 16C COLLET CHUCK, 20 in. SW, 14 in CENTERS, 5000 RPM, CHIP, FANUC O-T, TAILSTOCK, '91Request a quote on stock# 4671
SpecificationDescription
MFG DATE1990
MAX. SWING OVER UPPER WAY COVER19.5"
MAX. SWING OVER LOWER WAY COVER14.5"
MAX. DISTANCE BETWEEN CENTERS21.4"
MAX. TURNING DIA. / LENGTH10.8" / 14.5"
X AXIS TRAVEL5.45"
Z AXIS TRAVEL13.65"
RAPID TRAVERSE RATE X / Z AXES472 / 630 IPM
SPINDLE BORE / BAR CAPACITY1.875" / 1.625"
SPINDLE NOSEA2-5
SPINDLE SPEEDS50 - 5,000 RPM
SPINDLE MOTOR10 HP
TURRET CAPACITY10 STATION
TAILSTOCK TRAVEL / TAPER11.5" / MT #3
MACHINE DIMENSIONS (APPROXIMATE)122" x 54" x 68"
MACHINE WEIGHT (APPROXIMATE)9,000 LBS

Equipped With:
FANUC O-T CNC CONTROL WITH 9" SCREEN,
RS-232C PORT INTERFACE FOR DNC OPERATION,
16C COLLET CHUCK WITH 1.625" CAPACITY ON SPINDLE,
TAILSTOCK, CHIP CONVEYOR,
ALL AVAILABLE TOOL HOLDERS,
STANDARD COOLANT SYSTEM, ALL AVAILABLE MANAULS
