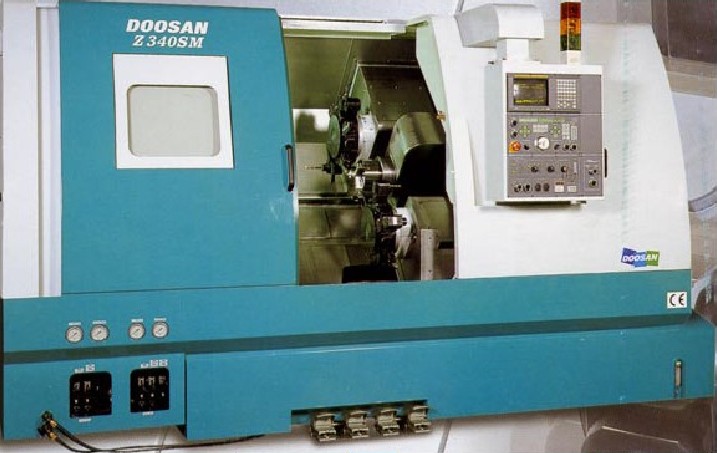

CNC TURNING CENTERS: DOOSAN Z340SM CNC LATHE, 6 AXIS, 27 in. SWING, 34 in. MAX LENGTH, SUB SPINDLE, LIVE TOOLING, 30 HP, FANUC 18iTB, 2002

DOOSAN Z340SM CNC LATHE, 6 AXIS, 27 in. SWING, 34 in. MAX LENGTH, SUB SPINDLE, LIVE TOOLING, 30 HP, FANUC 18iTB, 2002

Stock Number: 4635

CNC TURNING CENTERS: DOOSAN Z340SM CNC LATHE, 6 AXIS, 27 in. SWING, 34 in. MAX LENGTH, SUB SPINDLE, LIVE TOOLING, 30 HP, FANUC 18iTB, 2002, Click to view larger photo...       CNC TURNING CENTERS: DOOSAN Z340SM CNC LATHE, 6 AXIS, 27 in. SWING, 34 in. MAX LENGTH, SUB SPINDLE, LIVE TOOLING, 30 HP, FANUC 18iTB, 2002, Click to view larger photo...       CNC TURNING CENTERS: DOOSAN Z340SM CNC LATHE, 6 AXIS, 27 in. SWING, 34 in. MAX LENGTH, SUB SPINDLE, LIVE TOOLING, 30 HP, FANUC 18iTB, 2002, Click to view larger photo...       CNC TURNING CENTERS: DOOSAN Z340SM CNC LATHE, 6 AXIS, 27 in. SWING, 34 in. MAX LENGTH, SUB SPINDLE, LIVE TOOLING, 30 HP, FANUC 18iTB, 2002, Click to view larger photo...       CNC TURNING CENTERS: DOOSAN Z340SM CNC LATHE, 6 AXIS, 27 in. SWING, 34 in. MAX LENGTH, SUB SPINDLE, LIVE TOOLING, 30 HP, FANUC 18iTB, 2002, Click to view larger photo...       CNC TURNING CENTERS: DOOSAN Z340SM CNC LATHE, 6 AXIS, 27 in. SWING, 34 in. MAX LENGTH, SUB SPINDLE, LIVE TOOLING, 30 HP, FANUC 18iTB, 2002, Click to view larger photo...       CNC TURNING CENTERS: DOOSAN Z340SM CNC LATHE, 6 AXIS, 27 in. SWING, 34 in. MAX LENGTH, SUB SPINDLE, LIVE TOOLING, 30 HP, FANUC 18iTB, 2002, Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4635 CNC TURNING CENTERS: DOOSAN Z340SM CNC LATHE, 6 AXIS, 27 in. SWING, 34 in. MAX LENGTH, SUB SPINDLE, LIVE TOOLING, 30 HP, FANUC 18iTB, 2002Request a quote on stock# 4635
SpecificationDescription
DATE OF MANUFACTURE2002
MAX. DIST. BETWEEN SPINDLE NOSES33.9"
SWING OVER BED26.8"
MAX. TURNING DIAMETER MAIN/SUB13.4" / 10.2"
MAXIMUM BAR CAPACITY2.44"
X AXIS TRAVEL (UPPER / LOWER)7.3"
Z AXIS TRAVEL (UPPER / LOWER)25.6"
TURRET CAPACITY (BOTH TURRETS)12 STATIONS
RAPID TRAVERSE RATE X / Z945 / 1181 IPM
C AXIS INDEXING, SPINDLES360,000 DEG. C1 & C2
MAIN SPINDLE NOSEA2-6
MAIN SPINDLE SPEEDS50 - 5000 RPM
MAIN SPINDLE MOTOR30/25 HP
LIVE MILLING SPEEDS3000 RPM
LIVE MILLING MOTOR7.5 HP
SUB-SPINDLE, B AXIS TRAVEL24.41"
SUB-SPINDLE NOSEA2-5
SUB-SPINDLE SPEEDS60 - 6,000 RPM
SUB-SPINDLE MOTOR10 HP
DIMENSIONS, APPROX.123" x 67" x 72"
MACHINE WEIGHT, APPROX.13,800 LBS

Equipped With:

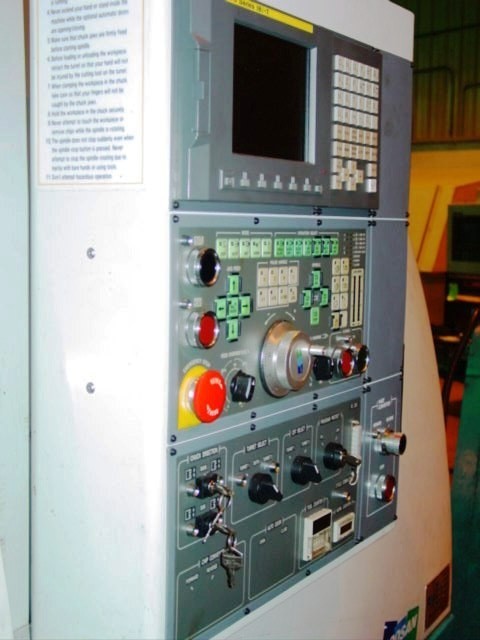

FANUC 18iTB CNC CONTROL WITH 10.4" LCD SCREEN,
RS-232C PORT INTERFACE FOR DNC OPERATION,

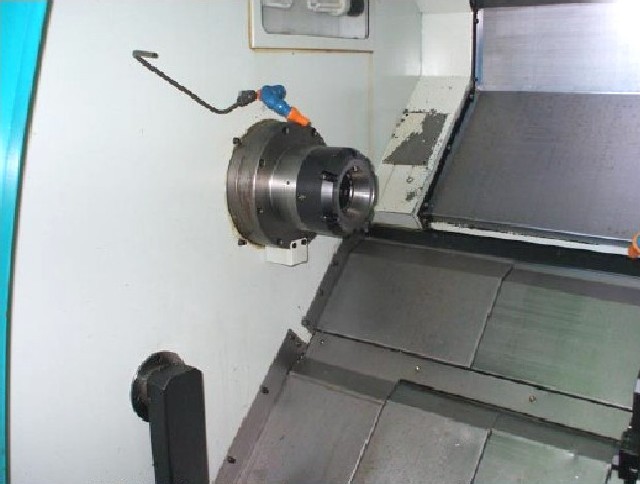

MICRO-CENTRIC CB65-ND COLLET CHUCK ON MAIN,
MICRO-CENTRIC CB42-ND COLLET CHUCK ON SUB,
LIVE TOOLING W/TOOL LIFE MANAGEMENT,

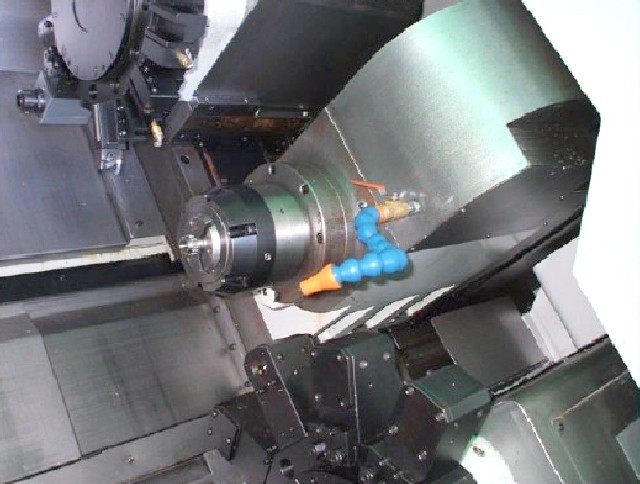

PROGRAMMABLE SUB SPINDLE WITH C-AXIS,

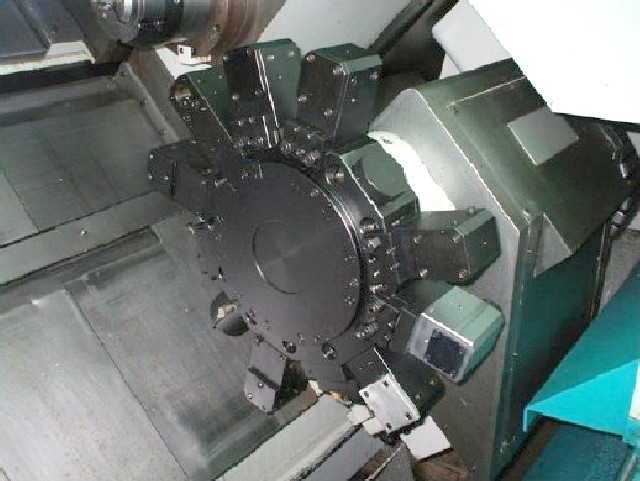

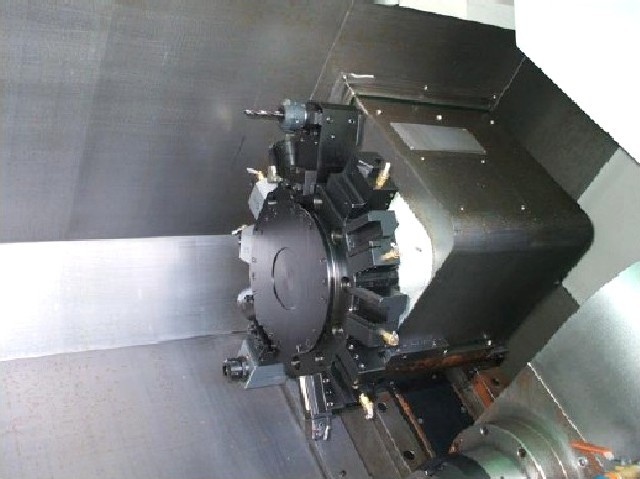

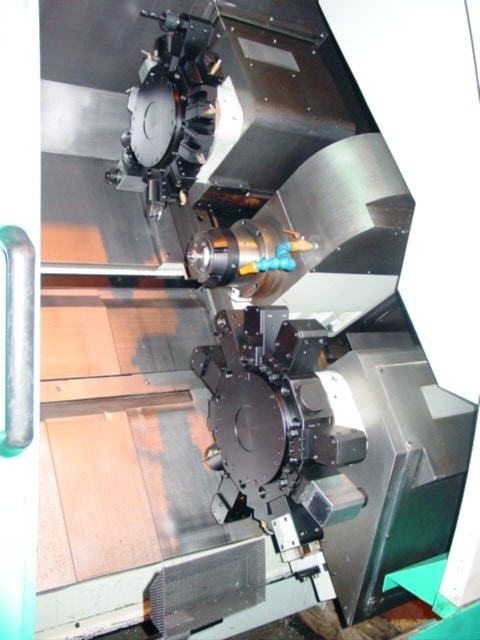

UPPER & LOWER TURRET (VDI 30),
AUTO PARTS CATCHER, PARTS OFF-LOAD CONVEYOR,
TURBO CHIP CONVEYOR, BAR FEED INTERFACE,
ASOLUTE ENCODERS, SPINDLE AIR-BLOW,
STANDARD COOLANT SYSTEM WITH TANK & PUMP
ALL AVAILABLE TOOL HOLDERS, ALL AVAILABLE MANUALS
***MACHINE IS IN EXCELLENT CONDITION w/LOW HOURS***
