CNC TURNING CENTERS: MAZAK QUICK TURN 10 UNIVERSAL CNC LATHE, 18 in. SW, 27 in. CENTERS, 8 in. CHUCK, TAILSTOCK, MAZATROL T-1 (4634)

MAZAK QUICK TURN 10 UNIVERSAL CNC LATHE, 18 in. SW, 27 in. CENTERS, 8 in. CHUCK, TAILSTOCK, MAZATROL T-1 (4634)

Stock Number: 4634

CNC TURNING CENTERS: MAZAK QUICK TURN 10 UNIVERSAL CNC LATHE, 18 in. SW, 27 in. CENTERS, 8 in. CHUCK, TAILSTOCK, MAZATROL T-1 (4634), Click to view larger photo...       CNC TURNING CENTERS: MAZAK QUICK TURN 10 UNIVERSAL CNC LATHE, 18 in. SW, 27 in. CENTERS, 8 in. CHUCK, TAILSTOCK, MAZATROL T-1 (4634), Click to view larger photo...       CNC TURNING CENTERS: MAZAK QUICK TURN 10 UNIVERSAL CNC LATHE, 18 in. SW, 27 in. CENTERS, 8 in. CHUCK, TAILSTOCK, MAZATROL T-1 (4634), Click to view larger photo...       CNC TURNING CENTERS: MAZAK QUICK TURN 10 UNIVERSAL CNC LATHE, 18 in. SW, 27 in. CENTERS, 8 in. CHUCK, TAILSTOCK, MAZATROL T-1 (4634), Click to view larger photo...       CNC TURNING CENTERS: MAZAK QUICK TURN 10 UNIVERSAL CNC LATHE, 18 in. SW, 27 in. CENTERS, 8 in. CHUCK, TAILSTOCK, MAZATROL T-1 (4634), Click to view larger photo...       CNC TURNING CENTERS: MAZAK QUICK TURN 10 UNIVERSAL CNC LATHE, 18 in. SW, 27 in. CENTERS, 8 in. CHUCK, TAILSTOCK, MAZATROL T-1 (4634), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4634 CNC TURNING CENTERS: MAZAK QUICK TURN 10 UNIVERSAL CNC LATHE, 18 in. SW, 27 in. CENTERS, 8 in. CHUCK, TAILSTOCK, MAZATROL T-1 (4634)Request a quote on stock# 4634
SpecificationDescription
MAXIMUM SWING17.6"
MAXIMUM CUTTING DIAMETER6.30"
MAXIMUM CUTTING LENGTH23"
DISTANCE BETWEEN CENTERS27"
X AXIS TRAVEL6.5"
Z AXIS TRAVEL21.4"
RAPID TRAVERSE X/Z472 / 787 IPM
SPINDLE NOSEA2-5
SPINDLE BORE2.2"
MAXIMUM BAR CAPACITY1.55"
SPINDLE SPEED60 - 3600 RPM
SPINDLE MOTOR15 HP
TURRET POSITIONS8
TAILSTOCK QUILL DIAMETER1.97"
TAILSTOCK QUILL STROKE2.95"
TAILSTOCK CENTERMT #3
WEIGHT, APPROX.7,900 LBS
DIMENSIONS, APPROX.114"L x 60"W x 72"H
MANUFACTURED NEW1984

Equipped With:

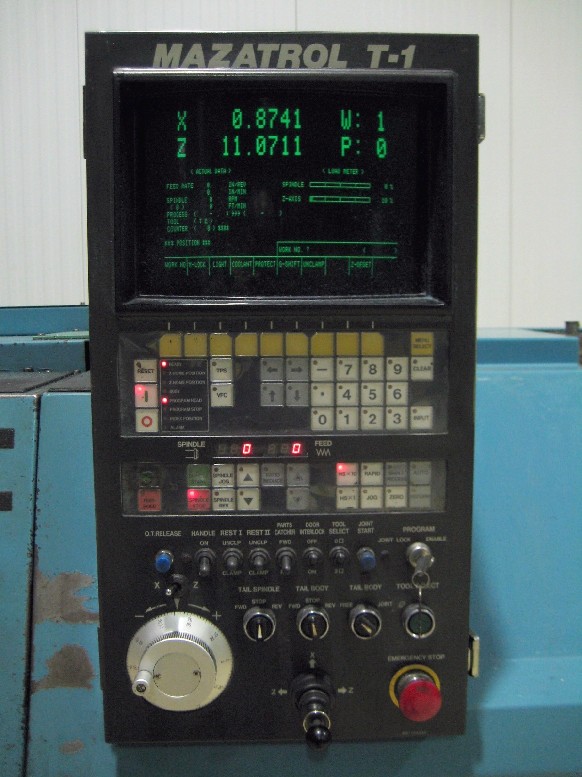

MAZATROL T-1 CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
8" 3-JAW AIR CHUCK,
PROGRAMMABLE TAILSTOCK AND QUILL,
LIFT-UP CHIP CONVEYOR,
FULLY ENCLOSED SPLASH & CHIP GUARDING,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
ALL AVAILABLE TOOL HOLDERS & MANUALS
