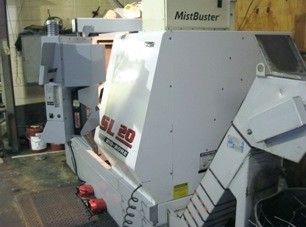

HAAS SL-20 T BIG BORE CNC LATHE, 20 SW, 24 LENGTH, LIVE TOOL, 30 HP, CHIP CONVEYOR, MANY OPTIONS, '02 (4632)
Stock Number: 4632
Click to view larger photo
Request a quote on stock# 4632
| Specification | Description |
|---|
| MANUFACTURED NEW | 2002 |
| MAXIMUM SWING OVER FRONT APRON | 20" |
| SWING OVER CROSS SLIDE | 9.5" |
| MAXIMUM TURNING DIAMETER | 10" |
| MAXIMUM TURNING LENGTH | 20" |
| X AXIS TRAVEL | 8.45" |
| Z AXIS TRAVEL | 20" |
| RAPID TRAVERSE RATE X & Z AXES | 1200 IPM |
| SPINDLE BORE | 3.0" |
| MAXIMUM BAR CAPACITY | 2.5" |
| SPINDLE SPEEDS | 3,400 RPM |
| SPINDLE MOTOR | 30 HP |

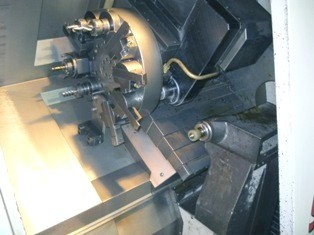

| TURRET CAPACITY | 10 STATION TURRET |
| LIVE TOOLING MOTOR | 5 HP |
| LIVE TOOLING SPEEDS | 3000 RPM |
| APPROXIMATE DIMENSIONS | 127" x 74" x 70" |
| MACHINE WEIGHT (APPROXIMATE) | 11,000 LBS |
Equipped With:

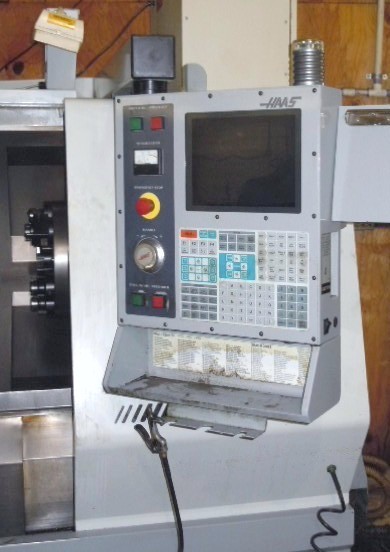

HAAS CNC CONTROL WITH 12" MONITOR,
RS-232C PORT INTERFACE FOR DNC OPERATION,

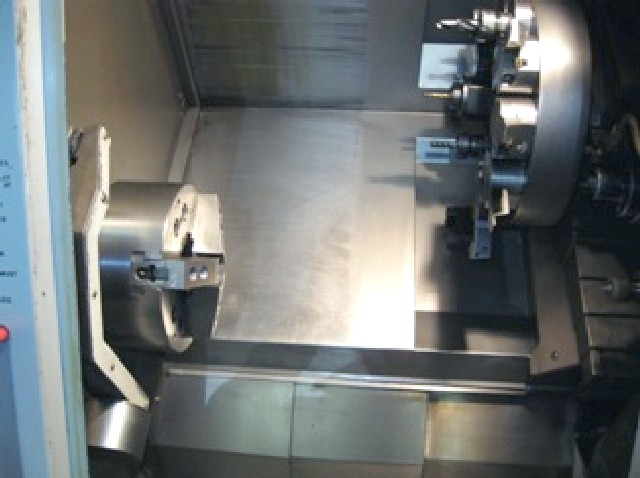

10" 3-JAW HYDRAULIC THROUGH HOLE CHUCK WITH JAWS,
HAAS LIVE TOOLING OPTION,
RIGID TAPPING (SYNCHRONOUS TAPPING), CUSTOM MACROS,

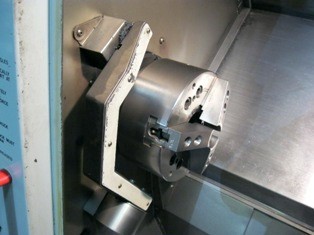

TOOL MEASUREMENT (AUTOMATIC TOOL PRE-SETTER ARM),

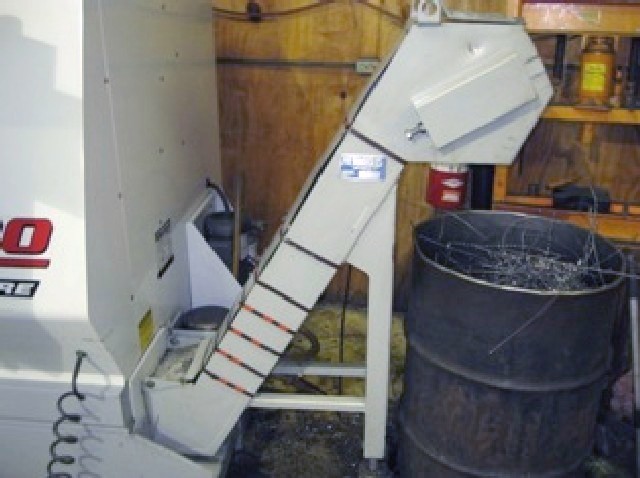

LIFT UP CHIP VONVEYOR, HIGH INTENSITY LIGHTING,
1.44MB 3.5" FLOPPY DRIVE, VISUAL QUIKCODE PROGRAMMING,
SPINDLE ORIENTATION, 1 MEG MEMORY,
(2) LIVE TOOL HOLDERS & MISC. TURNING TOOL BLOCK HOLDERS ,
STANDARD COOLANT SYSTEM, ALL AVAILABLE MANAULS
