CNC TURNING CENTERS: HITACHI SEIKI HITEC-TURN 23S II CNC LATHE, 10 in CHUCK, 10 TURRET, 20 HP, CHIP CONVEYOR & TAIL, SEICOS-L MULTI CTRL, '92

HITACHI SEIKI HITEC-TURN 23S II CNC LATHE, 10 in CHUCK, 10 TURRET, 20 HP, CHIP CONVEYOR & TAIL, SEICOS-L MULTI CTRL, '92

Stock Number: 4628

CNC TURNING CENTERS: HITACHI SEIKI HITEC-TURN 23S II CNC LATHE, 10 in CHUCK, 10 TURRET, 20 HP, CHIP CONVEYOR & TAIL, SEICOS-L MULTI CTRL, '92, Click to view larger photo...       CNC TURNING CENTERS: HITACHI SEIKI HITEC-TURN 23S II CNC LATHE, 10 in CHUCK, 10 TURRET, 20 HP, CHIP CONVEYOR & TAIL, SEICOS-L MULTI CTRL, '92, Click to view larger photo...       CNC TURNING CENTERS: HITACHI SEIKI HITEC-TURN 23S II CNC LATHE, 10 in CHUCK, 10 TURRET, 20 HP, CHIP CONVEYOR & TAIL, SEICOS-L MULTI CTRL, '92, Click to view larger photo...       CNC TURNING CENTERS: HITACHI SEIKI HITEC-TURN 23S II CNC LATHE, 10 in CHUCK, 10 TURRET, 20 HP, CHIP CONVEYOR & TAIL, SEICOS-L MULTI CTRL, '92, Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4628 CNC TURNING CENTERS: HITACHI SEIKI HITEC-TURN 23S II CNC LATHE, 10 in CHUCK, 10 TURRET, 20 HP, CHIP CONVEYOR & TAIL, SEICOS-L MULTI CTRL, '92Request a quote on stock# 4628
SpecificationDescription
MANUFACTURED NEW1992
SWING OVER BED15"
MAXIMUM TURNING DIAMETER10"
DISTANCE BETWEEN CENTERS24"
MAXIMUM TURNING LENGTH23.6"
X AXIS TRAVEL8.2"
Z AXIS TRAVEL23.6"
TURRET CAPACITY10 STATION
TURRET INDEX TIME (1 STATION)0.1 SECONDS
RAPID TRAVERSE RATE X AXIS787 IPM
RAPID TRAVERSE RATE Z AXIS945 IPM
SPINDLE NOSEA2-8
SPINDLE BORE3"
MAXIMUM BAR CAPACITY2.5"
SPINDLE SPEED20 - 3600 RPM
SPINDLE MOTOR20 HP
TAILSTOCK QUILL TAPERMT#5
TAILSTOCK BODY TRAVEL24.8
DIMENSIONS, APPROX.139" x 82" x 80"
WEIGHT, APPROX.9,600 LBS

Equipped With:
HITACHI SEIKI SEICOS-L MULTI CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
CONVERSATIONAL PROGRAMMING,

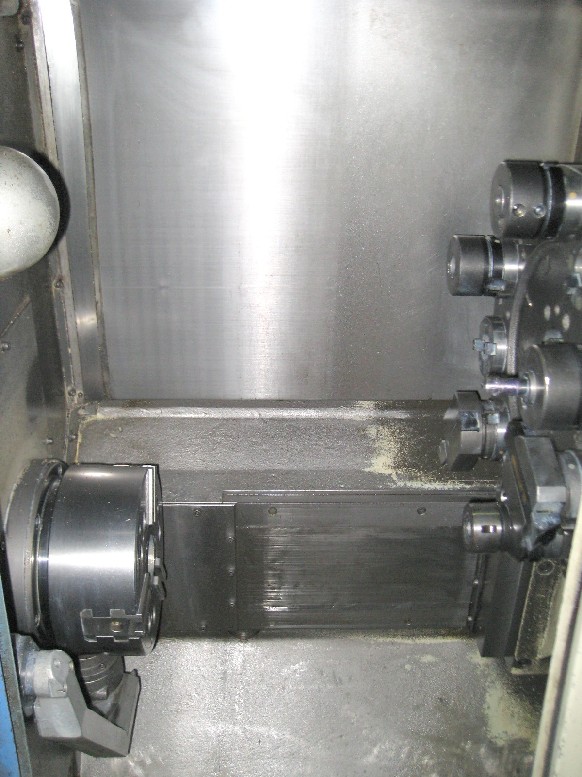

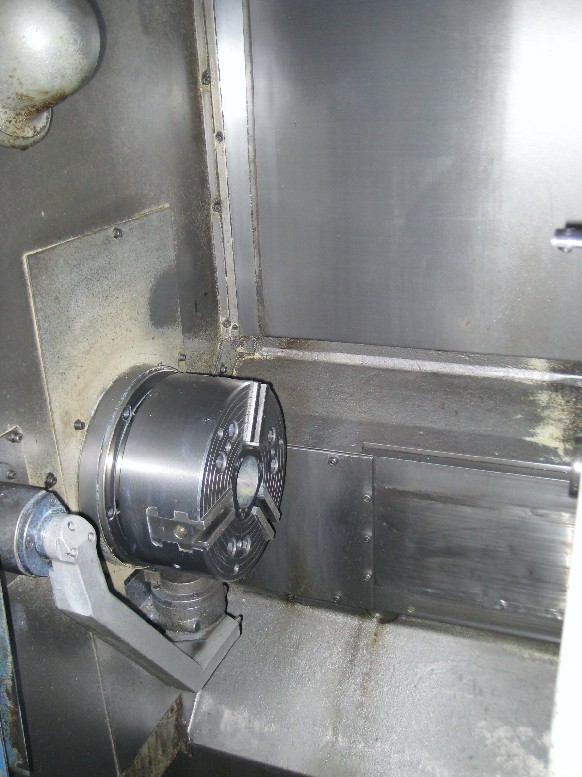

10" 3-JAW THROUGH HOLE CHUCK,
TOOL EYE (AUTOMATIC TOOL PRESETTING ARM),
FULLY PROGRAMMABLE TAILSTOCK BODY,
RIGHT DISCHARGE LIFT-UP TYPE CHIP CONVEYOR,

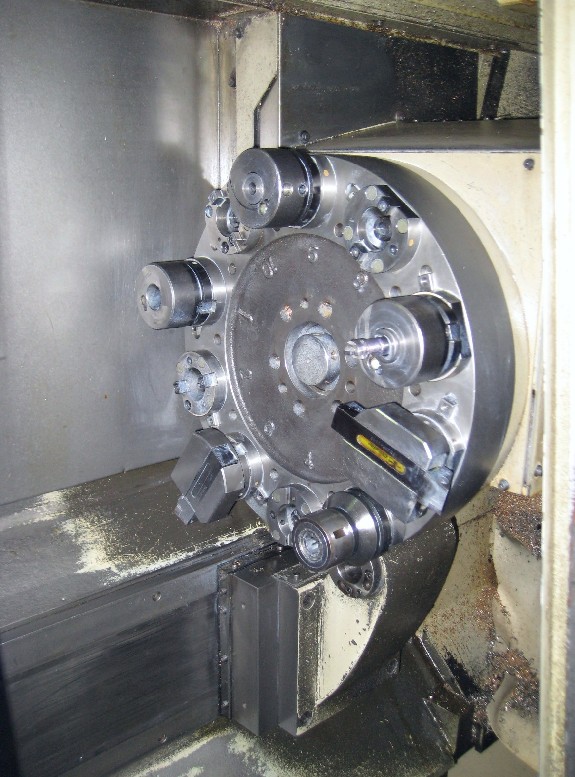

KV QUICK-CHANGE TOOL TURRET TYPE,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
ALL AVAILABLE MANUALS, ALL AVAILABLE TOOLING,
***Video Available Upon Request***
