CNC TURNING CENTERS: HAAS HL-4 CNC LATHE, 30 in. SW, 39 in. CENTERS, 3 in. SPINDLE BORE, 10 in. CHUCK, 30 HP, TAILSTOCK, FLOPPY DRIVE, '96

HAAS HL-4 CNC LATHE, 30 in. SW, 39 in. CENTERS, 3 in. SPINDLE BORE, 10 in. CHUCK, 30 HP, TAILSTOCK, FLOPPY DRIVE, '96

Stock Number: 4616

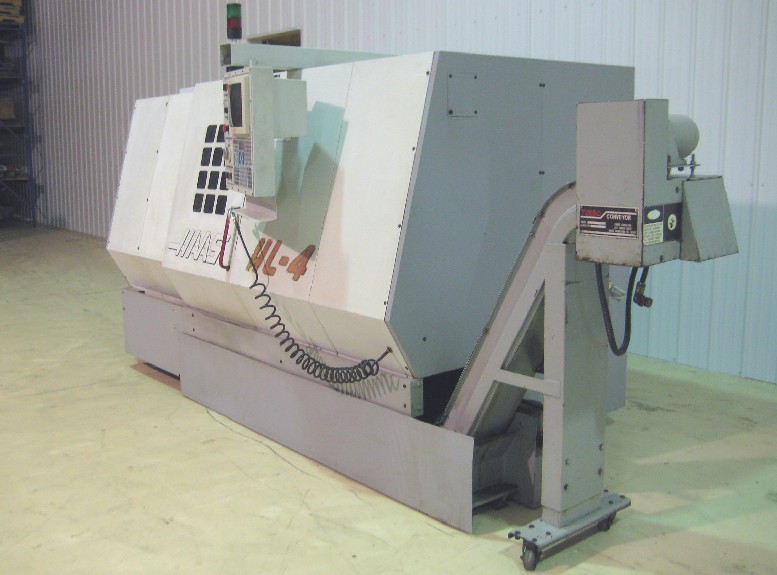

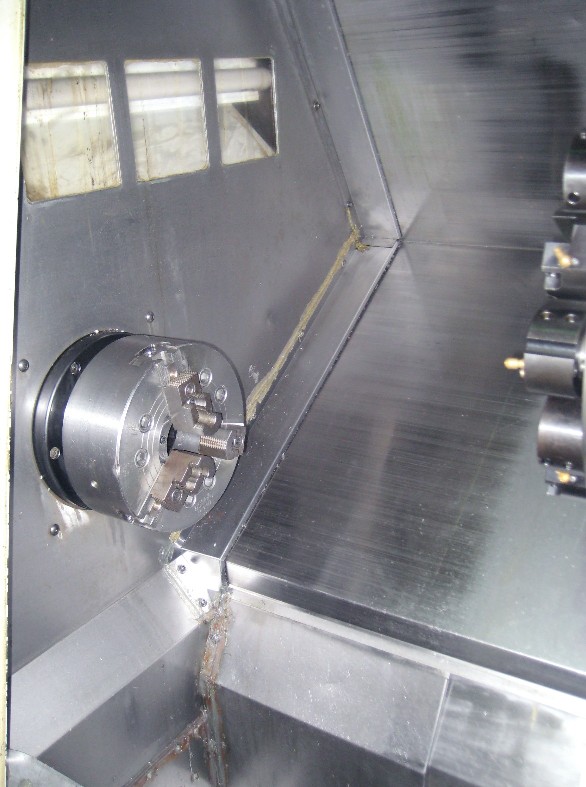

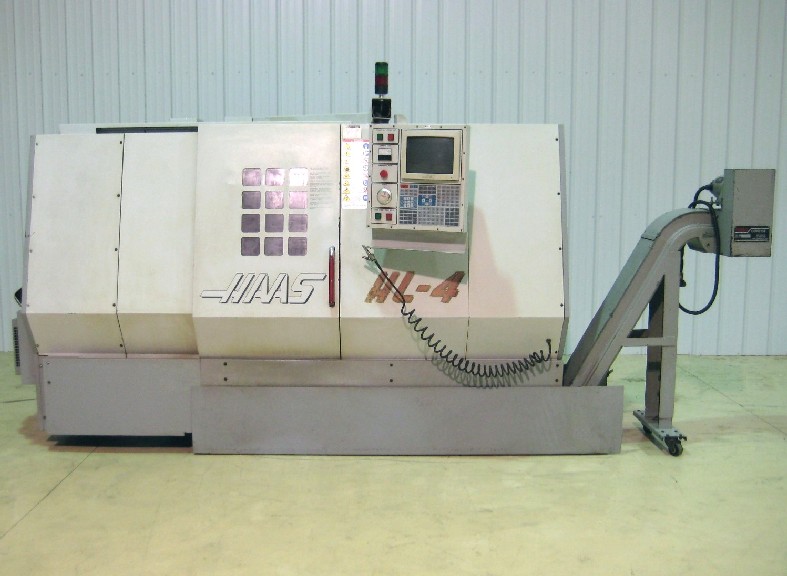

CNC TURNING CENTERS: HAAS HL-4 CNC LATHE, 30 in. SW, 39 in. CENTERS, 3 in. SPINDLE BORE, 10 in. CHUCK, 30 HP, TAILSTOCK, FLOPPY DRIVE, '96, Click to view larger photo...       CNC TURNING CENTERS: HAAS HL-4 CNC LATHE, 30 in. SW, 39 in. CENTERS, 3 in. SPINDLE BORE, 10 in. CHUCK, 30 HP, TAILSTOCK, FLOPPY DRIVE, '96, Click to view larger photo...       CNC TURNING CENTERS: HAAS HL-4 CNC LATHE, 30 in. SW, 39 in. CENTERS, 3 in. SPINDLE BORE, 10 in. CHUCK, 30 HP, TAILSTOCK, FLOPPY DRIVE, '96, Click to view larger photo...       CNC TURNING CENTERS: HAAS HL-4 CNC LATHE, 30 in. SW, 39 in. CENTERS, 3 in. SPINDLE BORE, 10 in. CHUCK, 30 HP, TAILSTOCK, FLOPPY DRIVE, '96, Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4616 CNC TURNING CENTERS: HAAS HL-4 CNC LATHE, 30 in. SW, 39 in. CENTERS, 3 in. SPINDLE BORE, 10 in. CHUCK, 30 HP, TAILSTOCK, FLOPPY DRIVE, '96Request a quote on stock# 4616
SpecificationDescription
DATE OF MANUFACTURE9/1996
MAX SWING OVER FRONT APRON24"
SWING OVER CROSS SLIDE9.5"
MAXIMUM TURNING DIAMETER14.5"
DISTANCE BETWEEN CENTERS39"
MAXIMUM CUTTING LENGTH34"
X AXIS TRAVEL11.3"
Z AXIS TRAVEL34"
RAPID TRAVERSE RATE X & Z AXES710 IPM
SPINDLE BORE3.0"
MAXIMUM BAR CAPACITY2.5"
SPINDLE SPEEDS3400 RPM
SPINDLE MOTOR30 HP
TURRET CAPACITY12 STATIONS
TAILSTOCK TAPERMT #4
TAILSTOCK BODY STROKE33.5"
DIMENSIONS, APPROX.155" x 75" x 76"
MACHINE WEIGHT, APPROX.15,000 LBS

Equipped With:
HAAS CNC CONTROL WITH 12" MONITOR,
RS-232C PORT INTERFACE FOR DNC OPERATION,
10" HYDRAULIC THROUGH-HOLE CHUCK,
TAILSTOCK BODY & QUILL (PROGRAMMABLE),
FLOPPY DISC DRIVE,
RIGID TAPPING, QUICK CODE,
RIGHT SIDE LIFT-UP CHIP CONVEYOR,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
ALL AVAILABLE TOOLING, ALL AVAILABLE MANUALS
