CNC TURNING CENTERS: OMNITURN GT-75 CNC LATHE, OMNITURN G3 SERIES CONTROL, 4 x 9 MAX PART SIZE, 3500 RPM, 5C COLLET, '97 (4608)

OMNITURN GT-75 CNC LATHE, OMNITURN G3 SERIES CONTROL, 4 x 9 MAX PART SIZE, 3500 RPM, 5C COLLET, '97 (4608)

Stock Number: 4608

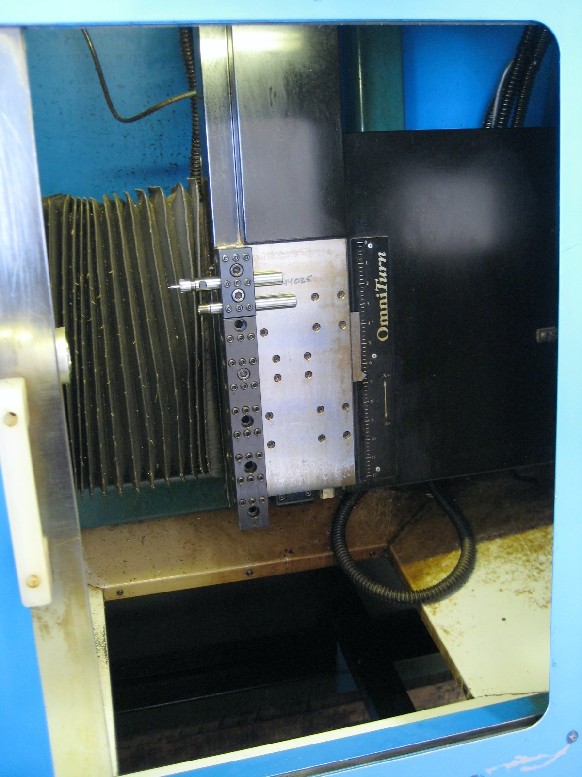

CNC TURNING CENTERS: OMNITURN GT-75 CNC LATHE, OMNITURN G3 SERIES CONTROL, 4 x 9 MAX PART SIZE, 3500 RPM, 5C COLLET, '97 (4608), Click to view larger photo...       CNC TURNING CENTERS: OMNITURN GT-75 CNC LATHE, OMNITURN G3 SERIES CONTROL, 4 x 9 MAX PART SIZE, 3500 RPM, 5C COLLET, '97 (4608), Click to view larger photo...       CNC TURNING CENTERS: OMNITURN GT-75 CNC LATHE, OMNITURN G3 SERIES CONTROL, 4 x 9 MAX PART SIZE, 3500 RPM, 5C COLLET, '97 (4608), Click to view larger photo...       CNC TURNING CENTERS: OMNITURN GT-75 CNC LATHE, OMNITURN G3 SERIES CONTROL, 4 x 9 MAX PART SIZE, 3500 RPM, 5C COLLET, '97 (4608), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4608 CNC TURNING CENTERS: OMNITURN GT-75 CNC LATHE, OMNITURN G3 SERIES CONTROL, 4 x 9 MAX PART SIZE, 3500 RPM, 5C COLLET, '97 (4608)Request a quote on stock# 4608
SpecificationDescription
MANUFACTURE DATE1997
MAXIMUM SWING4"
MAX. TURNING DIA. (RECOMMENDED)3.0" (1.062")
MAXIMUM TURNING LENGTH9"
X AXIS TRAVEL12"
Z AXIS TRAVEL9"
RAPID TRAVERSE RATE X AXIS300 IPM
RAPID TRAVERSE RATE Z AXIS300 IPM
SPINDLE NOSEA2-5
SPINDLE BORE1.4"
MAXIMUM BAR CAPACITY1.062"
SPINDLE SPEEDS100 - 3500 RPM
SPINDLE MOTOR5 HP
TOOL CAPACITY (GANG PLATE SIZE)6" x 14"
APPROXIMATE DIMENSIONS56" x 35" x 58"
MACHINE WEIGHT (APPROXIMATE)1,700 LBS

Equipped With:
OMNITURN 3-AXIS CNC CONTROL (G3 Series) W/9" CRT SCREEN
RS-232C PORT INTERFACE FOR DNC OPERATION
5C COLLET SYSTEM WITH COLLET SET AND PADS
GANG STYLE TOOL HOLDER PLATE,
9MB PROGRAM STORAGE MEMEORY, FLOPPY DISK DRIVE
STANDARD COOLANT SYSTEM WITH TANK & PUMP
ALL AVAILABLE TOOL BLOCK HOLDERS, ALL AVAILABLE MANAULS
