CNC TURNING CENTERS: HAAS SL-40 CNC LATHE, 40 in. SW, 15 in. CHUCK, 4.6 in. SPINDLE BORE HOLE, 40 HP GEARBOX, CHIP CONVEYOR, '02 (4607)

HAAS SL-40 CNC LATHE, 40 in. SW, 15 in. CHUCK, 4.6 in. SPINDLE BORE HOLE, 40 HP GEARBOX, CHIP CONVEYOR, '02 (4607)

Stock Number: 4607

CNC TURNING CENTERS: HAAS SL-40 CNC LATHE, 40 in. SW, 15 in. CHUCK, 4.6 in. SPINDLE BORE HOLE, 40 HP GEARBOX, CHIP CONVEYOR, '02 (4607), Click to view larger photo...       CNC TURNING CENTERS: HAAS SL-40 CNC LATHE, 40 in. SW, 15 in. CHUCK, 4.6 in. SPINDLE BORE HOLE, 40 HP GEARBOX, CHIP CONVEYOR, '02 (4607), Click to view larger photo...       CNC TURNING CENTERS: HAAS SL-40 CNC LATHE, 40 in. SW, 15 in. CHUCK, 4.6 in. SPINDLE BORE HOLE, 40 HP GEARBOX, CHIP CONVEYOR, '02 (4607), Click to view larger photo...       CNC TURNING CENTERS: HAAS SL-40 CNC LATHE, 40 in. SW, 15 in. CHUCK, 4.6 in. SPINDLE BORE HOLE, 40 HP GEARBOX, CHIP CONVEYOR, '02 (4607), Click to view larger photo...       CNC TURNING CENTERS: HAAS SL-40 CNC LATHE, 40 in. SW, 15 in. CHUCK, 4.6 in. SPINDLE BORE HOLE, 40 HP GEARBOX, CHIP CONVEYOR, '02 (4607), Click to view larger photo...       CNC TURNING CENTERS: HAAS SL-40 CNC LATHE, 40 in. SW, 15 in. CHUCK, 4.6 in. SPINDLE BORE HOLE, 40 HP GEARBOX, CHIP CONVEYOR, '02 (4607), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4607 CNC TURNING CENTERS: HAAS SL-40 CNC LATHE, 40 in. SW, 15 in. CHUCK, 4.6 in. SPINDLE BORE HOLE, 40 HP GEARBOX, CHIP CONVEYOR, '02 (4607)Request a quote on stock# 4607
SpecificationDescription
MANUFACTURED NEW2002
MAXIMUM SWING OVER FRONT APRON40"
SWING OVER CROSS SLIDE25.0"
MAXIMUM TURNING DIAMETER25.5"
MAXIMUM TURNING LENGTH44.0"
X AXIS TRAVEL17.0"
Z AXIS TRAVEL44.0"
RAPID TRAVERSE RATE X AXIS710 IPM
RAPID TRAVERSE RATE Z AXIS710 IPM
SPINDLE BORE4.62"
BAR CAPACITY, MAX.4.06"
SPINDLE NOSEA2-8
SPINDLE SPEEDS (GEARED)2,400 RPM
SPINDLE MOTOR40 HP

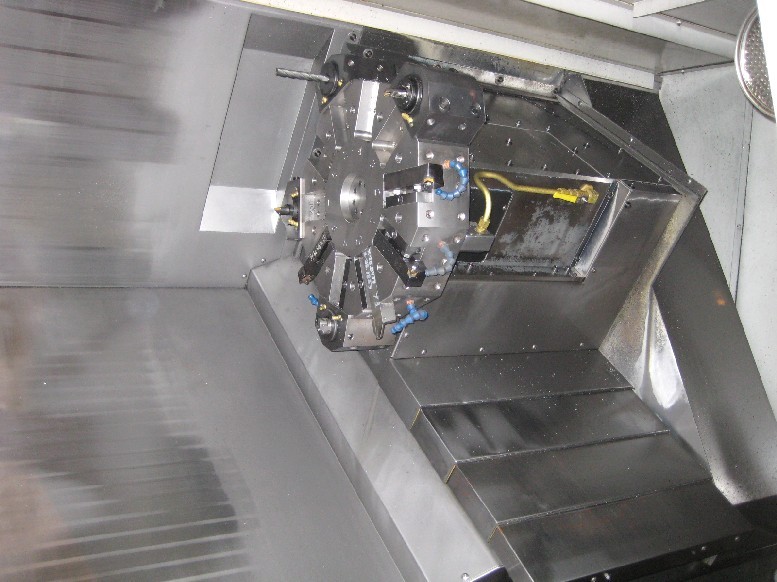

TURRET CAPACITY10 STATION
DIMENSIONS, APPROX.174" x 96" x 90"
WEIGHT, APPROX.25,000 LBS

Equipped With:

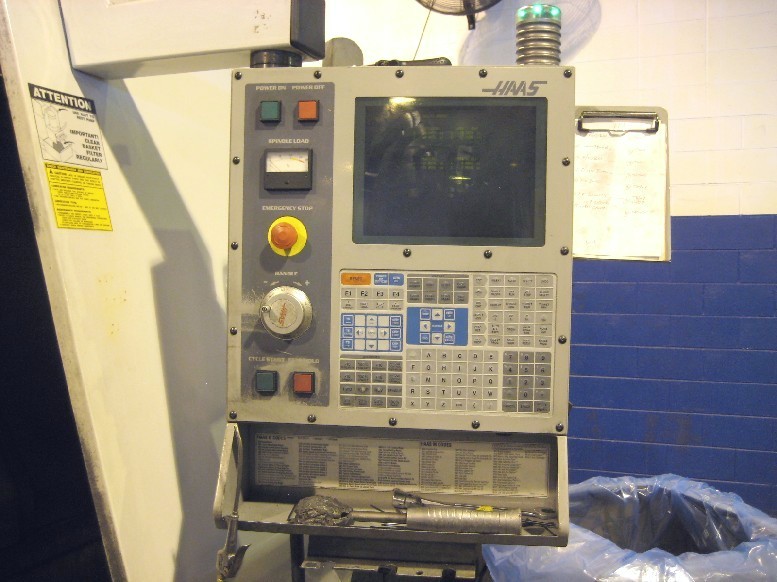

HAAS DUAL 32-BIT CNC CONTROL WITH LCD COLOR MONITOR,
RS-232C PORT INTERFACE FOR DNC OPERATION,

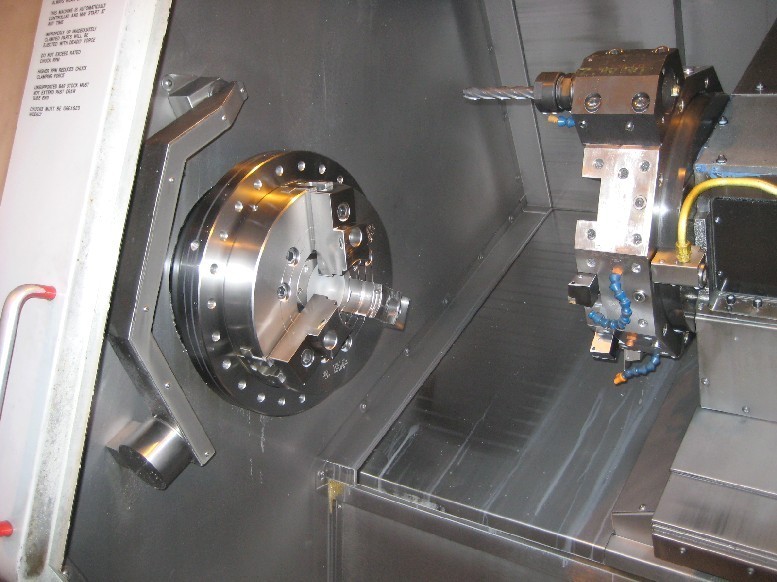

15" 3-JAW HYDRAULIC THROUGH HOLE CHUCK WITH JAWS,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
AUTOMATIC TOOL PRESETTER ARM, HIGH PRESSURE COOLANT (300 psi),
CHIP CONVEYOR, FLOPPY DISK DRIVE, 1 MEG MEMORY,
STANDARD COOLANT SYSTEM, ALL AVAILABLE MANAULS
