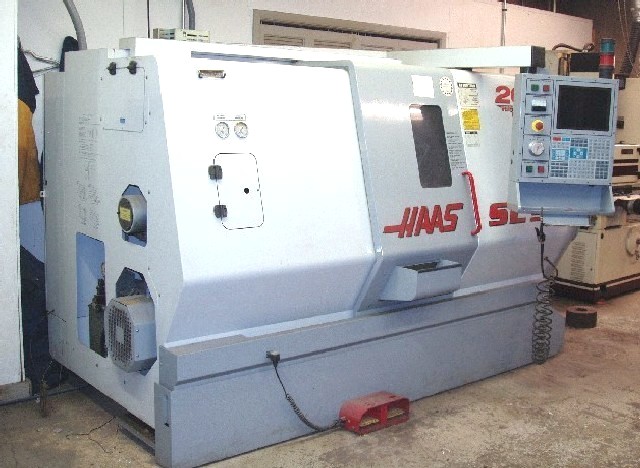

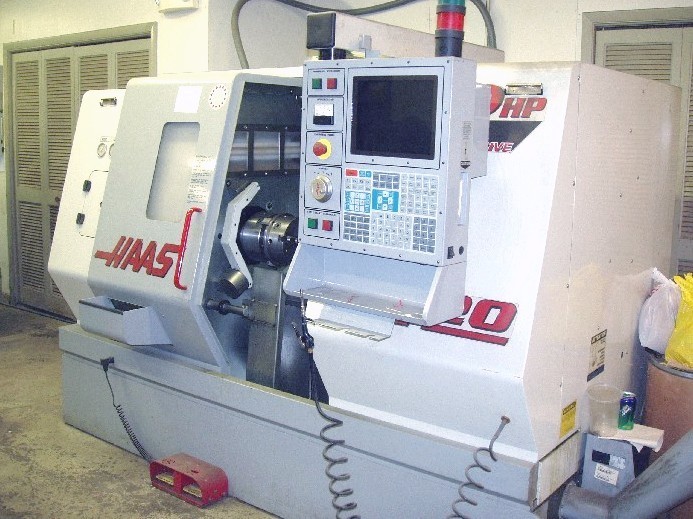

HAAS SL-20 T CNC LATHE, 20 SW, 24 CENTERS, TAILSTOCK, 3" SPINDLE BORE, 4000 RPM, LOW HOURS, TOOL PRESETTER, '00 (4595)
Stock Number: 4595
Click to view larger photo
Request a quote on stock# 4595
| Specification | Description |
|---|
| MANUFACTURED NEW | 4/2000 |
| MAXIMUM SWING OVER FRONT APRON | 21" |
| SWING OVER CROSS SLIDE | 9.5" |
| MAXIMUM TURNING DIAMETER | 10" |
| MAXIMUM TURNING LENGTH | 20" |
| DISTANCE BETWEEN CENTERS | 24" |
| X AXIS TRAVEL | 8.45" |
| Z AXIS TRAVEL | 20" |
| RAPID TRAVERSE RATE X AXIS | 710 IPM |
| RAPID TRAVERSE RATE Z AXIS | 710 IPM |
| SPINDLE BORE | 3.0" |
| DRAW TUBE ID | 2.06" |
| SPINDLE NOSE | A2-6 |
| SPINDLE SPEED | 40 - 4,000 RPM |
| SPINDLE MOTOR | 20 HP |
| TURRET CAPACITY | 10 STATIONS |
| TAILSTOCK QUILL TAPER | MT #4 |
| TAILSTOCK BODY TRAVEL | 20" |
| DIMENSIONS, APPROX. | 124" x 70" x 75" |
| WEIGHT, APPROX. | 10,000 LBS |
Equipped With:

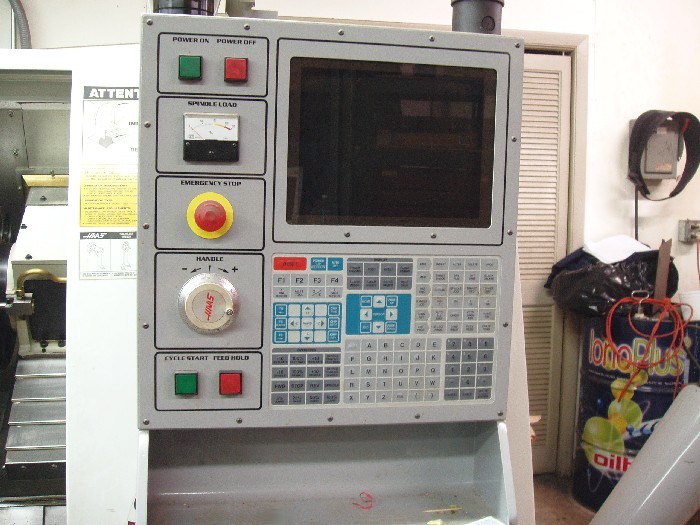

HAAS CNC CONTROL WITH 14" MONITOR,
RS-232C PORT INTERFACE FOR DNC OPERATION,

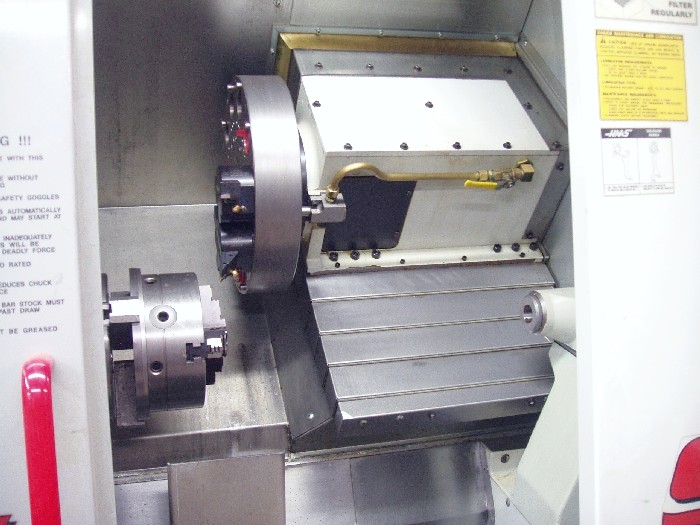

8" 3-JAW HYDRAULIC THROUGH HOLE CHUCK W/JAWS,
TOOL PRESETTER ARM, QUICK CODE PROGRAMMING,
AUTO PARTS CATCHER, PROGRAMMABLE TAILSTOCK,
CHIP REMOVAL AUGER, 1 MB MEMORY UPGRADE,
CUSTOM MACROS, SPINDLE ORIENTATION,
E I H BARFEED INTERFACE, FLOPPY DRIVE,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
STANDARD COOLANT SYSTEM WITH TANK AND PUMP,
ALL AVAILABLE MANUALS AND TOOL BLOCK HOLDERS
*** 563 POWER ON HOURS, 74 SPINDLE HOURS***
