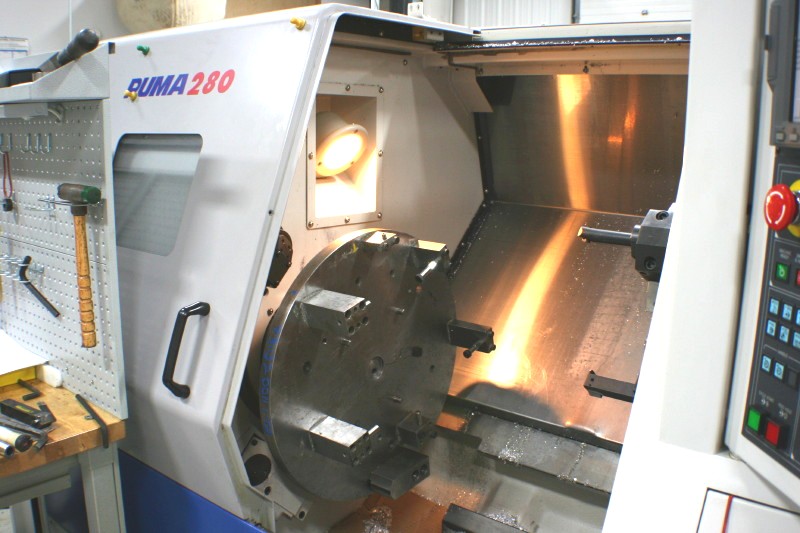

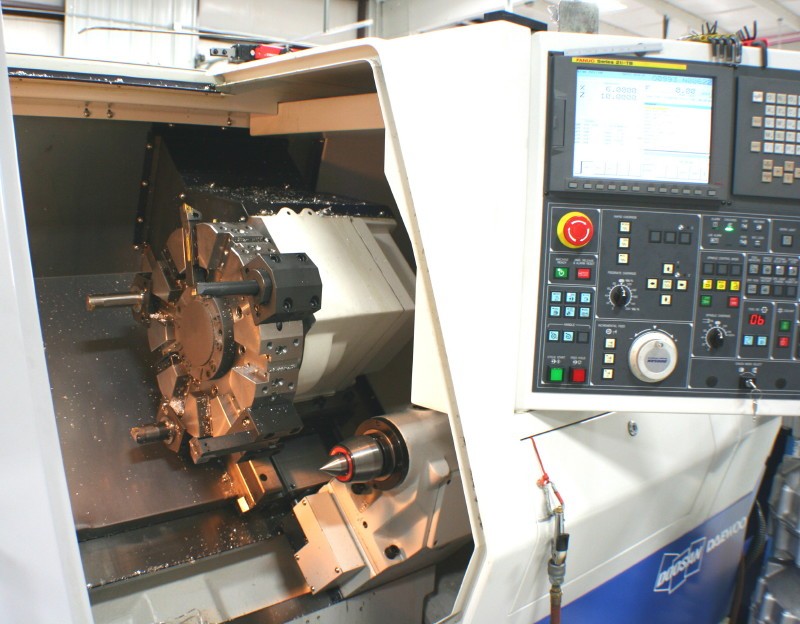

CNC TURNING CENTERS: DOOSAN / DAEWOO PUMA 280 CNC LATHE, FANUC 21i-TB, 12 IN. CHUCK, 23 IN. SWING, 25 IN. CENTERS, 3 IN. BAR CAP, 30 HP, '07

DOOSAN / DAEWOO PUMA 280 CNC LATHE, FANUC 21i-TB, 12 IN. CHUCK, 23 IN. SWING, 25 IN. CENTERS, 3 IN. BAR CAP, 30 HP, '07

Stock Number: 4590

CNC TURNING CENTERS: DOOSAN / DAEWOO PUMA 280 CNC LATHE, FANUC 21i-TB, 12 IN. CHUCK, 23 IN. SWING, 25 IN. CENTERS, 3 IN. BAR CAP, 30 HP, '07, Click to view larger photo...       CNC TURNING CENTERS: DOOSAN / DAEWOO PUMA 280 CNC LATHE, FANUC 21i-TB, 12 IN. CHUCK, 23 IN. SWING, 25 IN. CENTERS, 3 IN. BAR CAP, 30 HP, '07, Click to view larger photo...       CNC TURNING CENTERS: DOOSAN / DAEWOO PUMA 280 CNC LATHE, FANUC 21i-TB, 12 IN. CHUCK, 23 IN. SWING, 25 IN. CENTERS, 3 IN. BAR CAP, 30 HP, '07, Click to view larger photo...       CNC TURNING CENTERS: DOOSAN / DAEWOO PUMA 280 CNC LATHE, FANUC 21i-TB, 12 IN. CHUCK, 23 IN. SWING, 25 IN. CENTERS, 3 IN. BAR CAP, 30 HP, '07, Click to view larger photo...       CNC TURNING CENTERS: DOOSAN / DAEWOO PUMA 280 CNC LATHE, FANUC 21i-TB, 12 IN. CHUCK, 23 IN. SWING, 25 IN. CENTERS, 3 IN. BAR CAP, 30 HP, '07, Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4590 CNC TURNING CENTERS: DOOSAN / DAEWOO PUMA 280 CNC LATHE, FANUC 21i-TB, 12 IN. CHUCK, 23 IN. SWING, 25 IN. CENTERS, 3 IN. BAR CAP, 30 HP, '07Request a quote on stock# 4590
SpecificationDescription
DATE OF MANUFACTURE2007
MAXIMUM SWING OVER BED23"
SWING OVER SADDLE14.5"
MAXIMUM TURNING DIAMETER15.7"
MAXIMUM TURNING LENGTH25"
X AXIS TRAVEL11.1"
Z AXIS TRAVEL26.8"
RAPID TRAVERSE RATE X AXIS800 IPM
RAPID TRAVERSE RATE Z AXIS945 IPM
SPINDLE BORE3.38"
MAXIMUM BAR CAPACITY3"
SPINDLE SPEEDS28-2,800 RPM
SPINDLE MOTOR30 HP
TURRET CAPACITY10 STATION TURRET
TAILSTOCK QUILL TAPERMT #5
TAILSTOCK QUILL DIAMETER3.94"
TAILSTOCK QUILL STROKE3.94"
TAILSTOCK BODY TRAVEL20"
DIMENSIONS, APPROX.138" x 71" x 72"
WEIGHT, APPROX.14000 LBS

Equipped With:
FANUC 21i-TB CNC CONTROL WITH 9" CRT SCREEN,
RS-232C PORT INTERFACE FOR DNC OPERATION,
12" 3-JAW HYDRAULIC THROUGH HOLE CHUCK WITH JAWS,
TOOL EYE (AUTOMATIC TOOL LENGTH MEASUREMENT),

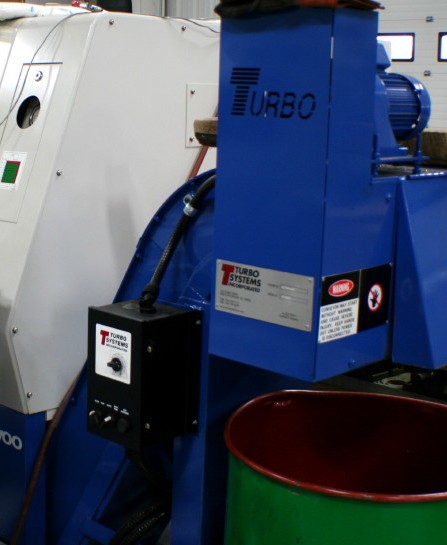

RIGHT SIDE TURBO LIFT UP CHIP CONVEYOR,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
ALL AVAILABLE TOOL BLOCK HOLDERS, ALL AVAILABLE MANAULS,
****OPERATING HRS: 1059, POWER ON HRS: 4368, ****
