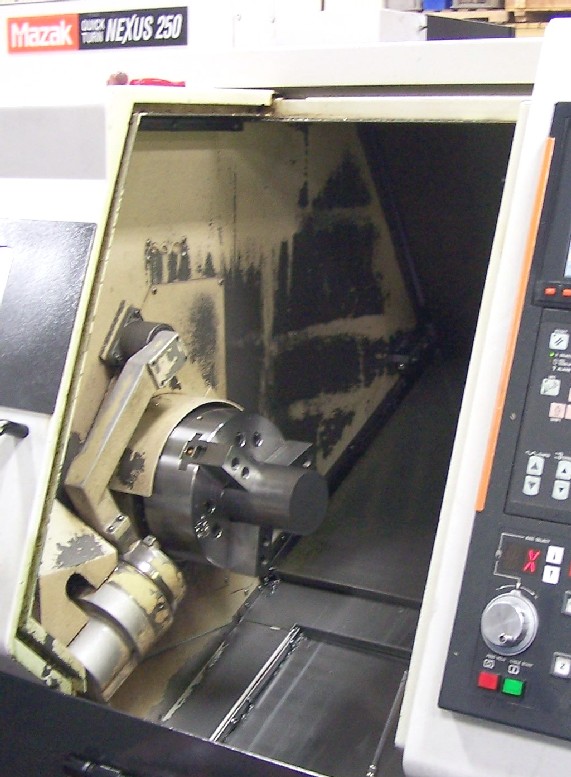

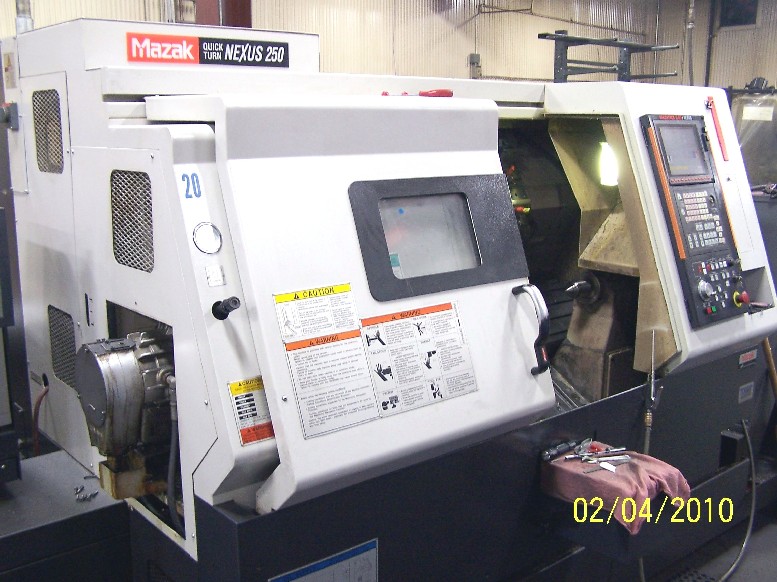

CNC TURNING CENTERS: MAZAK QUICK TURN NEXUS QTN-250 CNC LATHE, 10 IN CHUCK, 26.5 IN. SWING, 23 IN. Z-AXIS, 35 HP, 2004 (4558)

MAZAK QUICK TURN NEXUS QTN-250 CNC LATHE, 10 IN CHUCK, 26.5 IN. SWING, 23 IN. Z-AXIS, 35 HP, 2004 (4558)

Stock Number: 4558

CNC TURNING CENTERS: MAZAK QUICK TURN NEXUS QTN-250 CNC LATHE, 10 IN CHUCK, 26.5 IN. SWING, 23 IN. Z-AXIS, 35 HP, 2004 (4558), Click to view larger photo...       CNC TURNING CENTERS: MAZAK QUICK TURN NEXUS QTN-250 CNC LATHE, 10 IN CHUCK, 26.5 IN. SWING, 23 IN. Z-AXIS, 35 HP, 2004 (4558), Click to view larger photo...       CNC TURNING CENTERS: MAZAK QUICK TURN NEXUS QTN-250 CNC LATHE, 10 IN CHUCK, 26.5 IN. SWING, 23 IN. Z-AXIS, 35 HP, 2004 (4558), Click to view larger photo...       CNC TURNING CENTERS: MAZAK QUICK TURN NEXUS QTN-250 CNC LATHE, 10 IN CHUCK, 26.5 IN. SWING, 23 IN. Z-AXIS, 35 HP, 2004 (4558), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4558 CNC TURNING CENTERS: MAZAK QUICK TURN NEXUS QTN-250 CNC LATHE, 10 IN CHUCK, 26.5 IN. SWING, 23 IN. Z-AXIS, 35 HP, 2004 (4558)Request a quote on stock# 4558
SpecificationDescription
MANUFACTURED NEW2004
MAXIMUM SWING26.5"
MAXIMUM TURNING DIAMETER14.75"
MAXIMUM MACHINING LENGTH19.9"
X AXIS TRAVEL9.05"
Z AXIS TRAVEL22.63"
RAPID TRAVERSE RATE X & Z AXES1181 IPM
BAR CAPACITY3.03"
SPINDLE BORE3.46"
SPINDLE SPEED, MAX.4000 RPM
SPINDLE NOSEA2-8
SPINDLE MOTOR35 HP

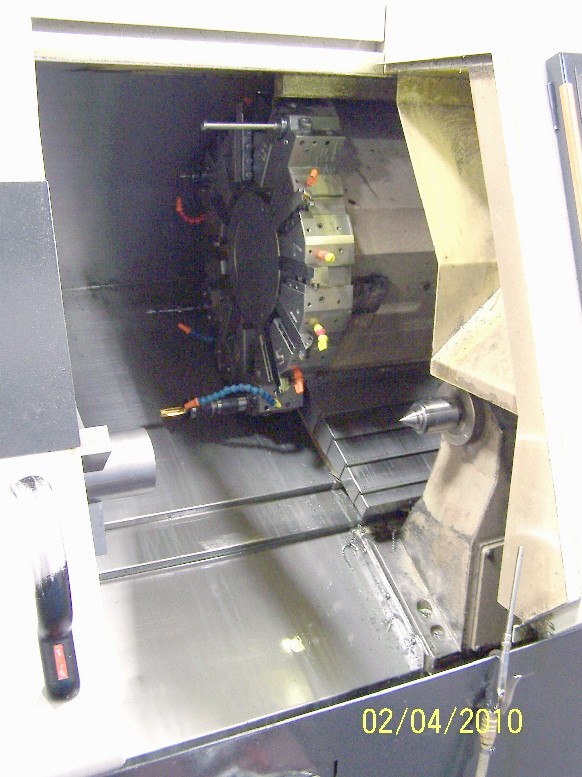

TURRET CAPACITY12 STATION TURRET
MACHINE WEIGHT (APPROX.)11,500 LBS
MACHINE DIMENSIONS (APPROX.)115" x 70" x 72"

Equipped With:

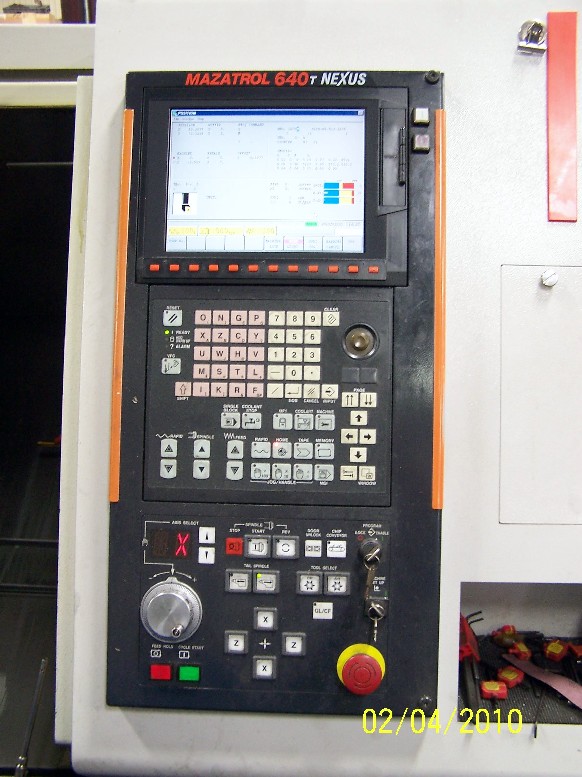

MAZATROL 640T NEXUS CONVERSATIONAL CNC CTRL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
10" 3-JAW HYD. BIG BORE CHUCK,
PROGRAMABLE TAILSTOCK,
PARTS CATCHER, SPINDLE CHILLER UNIT,
TOOL EYE (AUTOMATIC TOOL PRESETTER ARM),
CHIP CONVEYOR, TOOLING & MANUALS,
LNS BAR FEEDER INTERFACE
