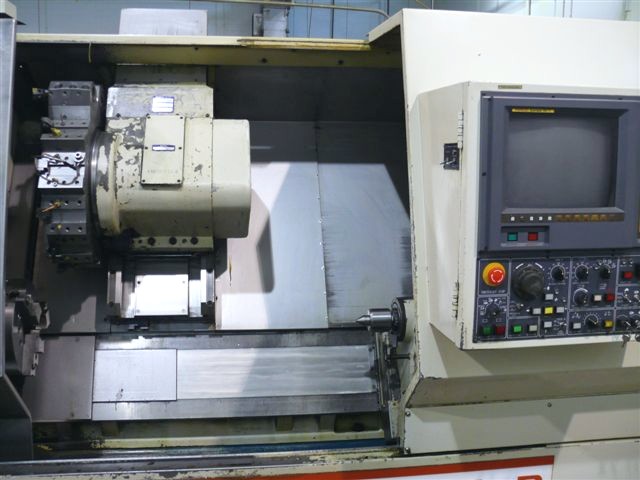

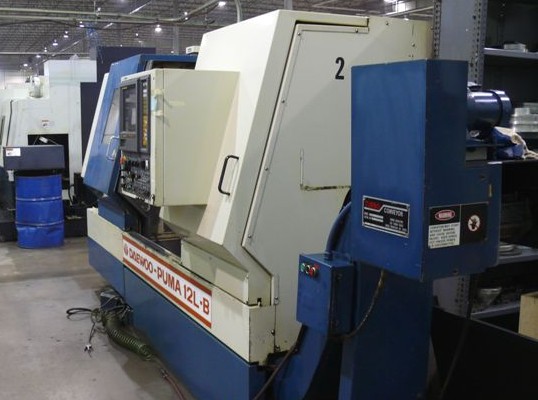

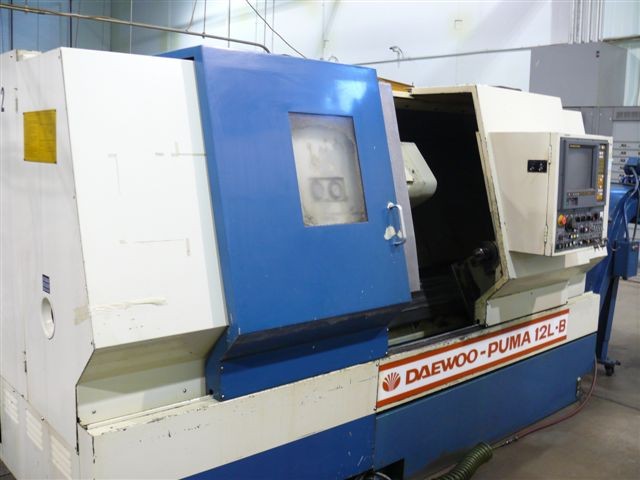

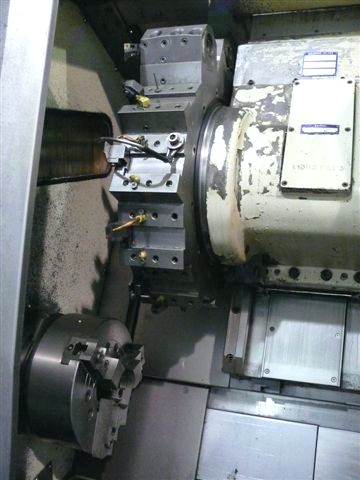

CNC TURNING CENTERS: DAEWOO PUMA 12 L-B CNC LATHE, 12 IN. CHUCK, 22.4 SWING, 41 CENTERS, 35 HP, 4 IN. SPINDLE BORE, CHIP, '92 (4557)

DAEWOO PUMA 12 L-B CNC LATHE, 12 IN. CHUCK, 22.4 SWING, 41 CENTERS, 35 HP, 4 IN. SPINDLE BORE, CHIP, '92 (4557)

Stock Number: 4557

CNC TURNING CENTERS: DAEWOO PUMA 12 L-B CNC LATHE, 12 IN. CHUCK, 22.4 SWING, 41 CENTERS, 35 HP, 4 IN. SPINDLE BORE, CHIP, '92 (4557), Click to view larger photo...       CNC TURNING CENTERS: DAEWOO PUMA 12 L-B CNC LATHE, 12 IN. CHUCK, 22.4 SWING, 41 CENTERS, 35 HP, 4 IN. SPINDLE BORE, CHIP, '92 (4557), Click to view larger photo...       CNC TURNING CENTERS: DAEWOO PUMA 12 L-B CNC LATHE, 12 IN. CHUCK, 22.4 SWING, 41 CENTERS, 35 HP, 4 IN. SPINDLE BORE, CHIP, '92 (4557), Click to view larger photo...       CNC TURNING CENTERS: DAEWOO PUMA 12 L-B CNC LATHE, 12 IN. CHUCK, 22.4 SWING, 41 CENTERS, 35 HP, 4 IN. SPINDLE BORE, CHIP, '92 (4557), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4557 CNC TURNING CENTERS: DAEWOO PUMA 12 L-B CNC LATHE, 12 IN. CHUCK, 22.4 SWING, 41 CENTERS, 35 HP, 4 IN. SPINDLE BORE, CHIP, '92 (4557)Request a quote on stock# 4557
SpecificationDescription
MANUFACTURED NEW1992
MAXIMUM SWING OVER BED22.4"
SWING OVER CARRIAGE14.6"
MAXIMUM TURNING DIAMETER19"
MAXIMUM TURNING LENGTH40.2"
X AXIS TRAVEL10.2"
Z AXIS TRAVEL41.3"
RAPID TRAVERSE RATE X AXIS480 IPM
RAPID TRAVERSE RATE Z AXIS630 IPM
SPINDLE BORE4.13"
MAXIMUM BAR CAPACITY3.58"
SPINDLE SPEEDS20 - 2,500 RPM
SPINDLE MOTOR (2 SPEED GEARED)35 HP
TURRET CAPACITY12 STATION TURRET
TAILSTOCK QUILL TAPERMT #5
TAILSTOCK QUILL STROKE4.0"
APPROX. DIMENSIONS191" x 72" x 89"
MACHINE WEIGHT (APPROXIMATE)20,750 LBS

Equipped With:
FANUC 15T CNC CONTROL WITH 9" COLOR CRT SCREEN
RS-232C PORT INTERFACE FOR DNC OPERATION
12" 3-JAW HYDRAULIC THROUGH HOLE CHUCK W/JAWS
RIGHT HAND DISCHARGE LIFT-UP TYPE CHIP CONVEYOR
STANDARD COOLANT SYSTEM WITH TANK & PUMP
PROGRAMMABLE TAILSTOCK (DRAG ALONG BODY)
RIGID GEARBOX SPINDLE,
ALL AVAILABLE TOOL HOLDERS, ALL AVAILABLE MANUALS
