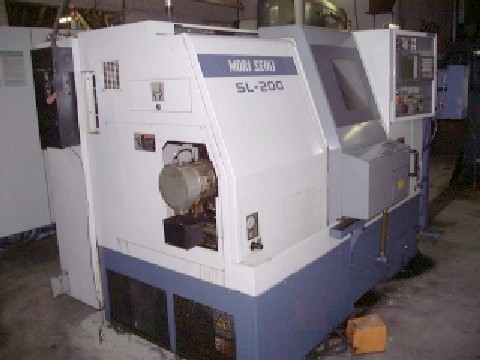

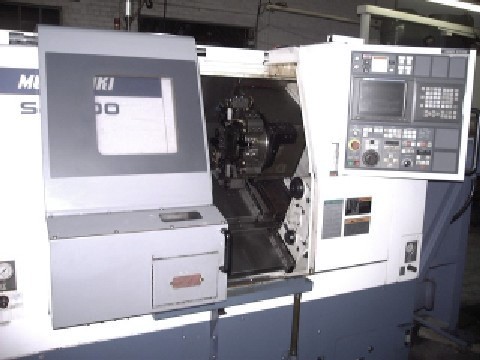

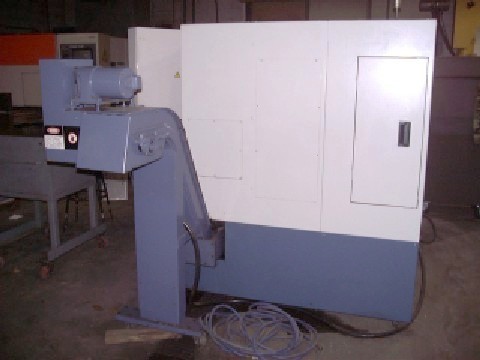

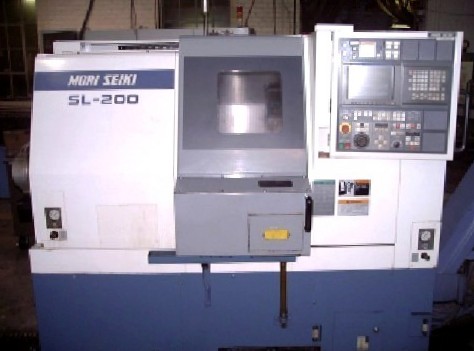

Request a quote on stock# 4554| Specification | Description |
|---|---|
| APPROXIMATE AGE | 1997 |
| SWING OVER BED | 26.8" |
| SWING OVER CROSS SLIDE | 20.1" |
| MAXIMUM TURNING DIAMETER | 15.3" |
| MAXIMUM TURNING LENGTH | 18.9" |
| DISTANCE BETWEEN CENTERS | 22" |
| X AXIS TRAVEL | 9.3" |
| Z AXIS TRAVEL | 20.5" |
| TAIL STOCK TRAVEL | 20.3" |
| SPINDLE NOSE / SPINDLE BORE | A2-6 / 2.9" |
| MAX. BAR CAPACITY | 2.56" |
| RAPID TRAVERSE RATE X AXIS | 708 IPM |
| RAPID TRAVERSE RATE Z AXIS | 945 IPM |
| SPINDLE SPEEDS | 40 - 4,000 RPM |
| SPINDLE MOTOR | 15 HP |

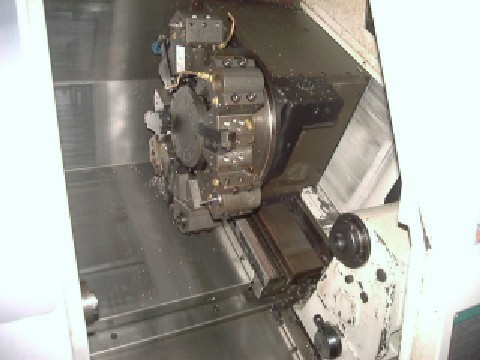

| TURRET CAPACITY | 12 STATION TURRET |
| APPROXIMATE DIMENSIONS | 92" x 69" x 72" |
| MACHINE WEIGHT (APPROXIMATE) | 10,500 LBS |
