CNC TURNING CENTERS: HITACHI SEIKI HITEC-TURN 23S III CNC LATHE, 10 in CHUCK, 30 in CENTERS, 10 TURRET, 20 HP, CHIP CONVEYOR, SEICOS, '96

HITACHI SEIKI HITEC-TURN 23S III CNC LATHE, 10 in CHUCK, 30 in CENTERS, 10 TURRET, 20 HP, CHIP CONVEYOR, SEICOS, '96

Stock Number: 4553

CNC TURNING CENTERS: HITACHI SEIKI HITEC-TURN 23S III CNC LATHE, 10 in CHUCK, 30 in CENTERS, 10 TURRET, 20 HP, CHIP CONVEYOR, SEICOS, '96, Click to view larger photo...       CNC TURNING CENTERS: HITACHI SEIKI HITEC-TURN 23S III CNC LATHE, 10 in CHUCK, 30 in CENTERS, 10 TURRET, 20 HP, CHIP CONVEYOR, SEICOS, '96, Click to view larger photo...       CNC TURNING CENTERS: HITACHI SEIKI HITEC-TURN 23S III CNC LATHE, 10 in CHUCK, 30 in CENTERS, 10 TURRET, 20 HP, CHIP CONVEYOR, SEICOS, '96, Click to view larger photo...       CNC TURNING CENTERS: HITACHI SEIKI HITEC-TURN 23S III CNC LATHE, 10 in CHUCK, 30 in CENTERS, 10 TURRET, 20 HP, CHIP CONVEYOR, SEICOS, '96, Click to view larger photo...       CNC TURNING CENTERS: HITACHI SEIKI HITEC-TURN 23S III CNC LATHE, 10 in CHUCK, 30 in CENTERS, 10 TURRET, 20 HP, CHIP CONVEYOR, SEICOS, '96, Click to view larger photo...       CNC TURNING CENTERS: HITACHI SEIKI HITEC-TURN 23S III CNC LATHE, 10 in CHUCK, 30 in CENTERS, 10 TURRET, 20 HP, CHIP CONVEYOR, SEICOS, '96, Click to view larger photo...       CNC TURNING CENTERS: HITACHI SEIKI HITEC-TURN 23S III CNC LATHE, 10 in CHUCK, 30 in CENTERS, 10 TURRET, 20 HP, CHIP CONVEYOR, SEICOS, '96, Click to view larger photo...       CNC TURNING CENTERS: HITACHI SEIKI HITEC-TURN 23S III CNC LATHE, 10 in CHUCK, 30 in CENTERS, 10 TURRET, 20 HP, CHIP CONVEYOR, SEICOS, '96, Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4553 CNC TURNING CENTERS: HITACHI SEIKI HITEC-TURN 23S III CNC LATHE, 10 in CHUCK, 30 in CENTERS, 10 TURRET, 20 HP, CHIP CONVEYOR, SEICOS, '96Request a quote on stock# 4553
SpecificationDescription
MANUFACTURED NEW1996
SWING OVER BED18.1"
MAXIMUM TURNING DIAMETER14"
DISTANCE BETWEEN CENTERS30.2"
MAXIMUM TURNING LENGTH23.6"
X AXIS TRAVEL8.2"
Z AXIS TRAVEL24.8"

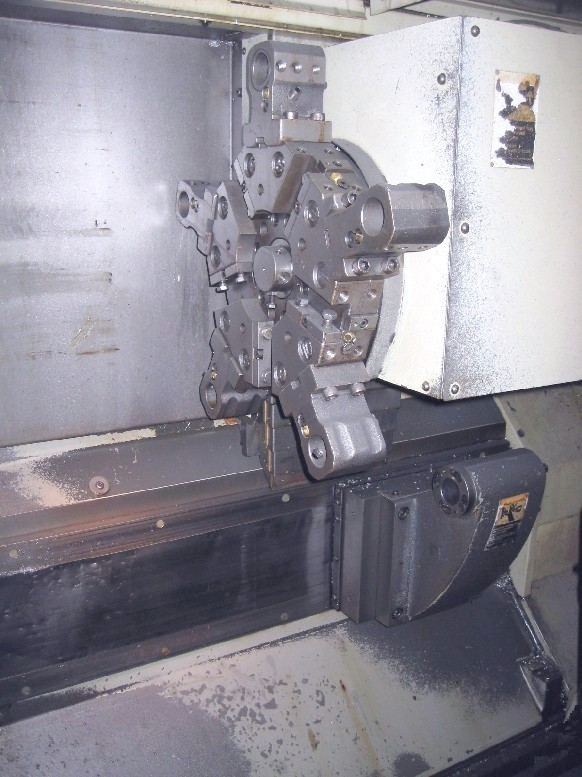

TURRET CAPACITY10 STATION
TURRET INDEX TIME (1 STATION)0.1 SECONDS
RAPID TRAVERSE RATE X AXIS984 IPM
RAPID TRAVERSE RATE Z AXIS1181 IPM
SPINDLE NOSEA2-8
SPINDLE BORE3"
MAXIMUM BAR CAPACITY2.6"
SPINDLE SPEED20 - 3200 RPM
SPINDLE MOTOR20 HP
TAILSTOCK QUILL TAPERMT#5
TAILSTOCK BODY TRAVEL24.8
MACHINE DIMENSIONS (APPOX)139" x 82" x 80"
MACHINE WEIGHT10,500 LBS

Equipped With:

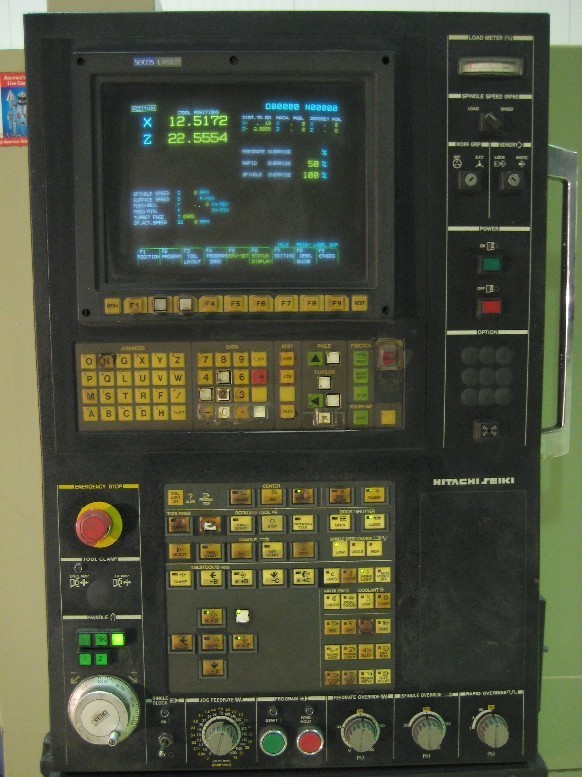

HITACHI SEIKI SEICOS-L MULTI CNC CONTROL WITH 10" LCD,
RS-232C PORT INTERFACE FOR DNC OPERATION,
CONVERSATIONAL PROGRAMMING,

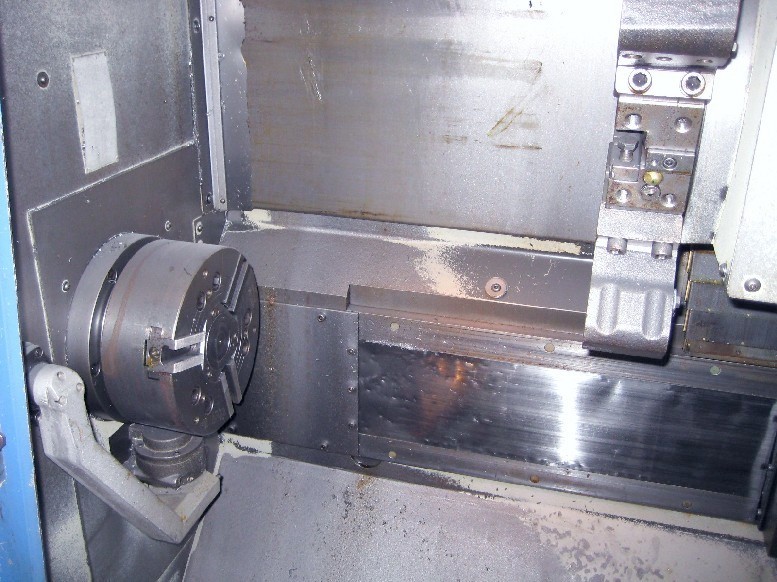

10" 3-JAW THROUGH HOLE CHUCK,
TOOL EYE (AUTOMATIC TOOL PRESETTING ARM),
FULLY PROGRAMMABLE TAILSTOCK BODY,
RIGHT DISCHARGE LIFT-UP TYPE CHIP CONVEYOR,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
ALL AVAILABLE MANUALS, ALL AVAILABLE TOOLING
***Video Available Upon Request***
