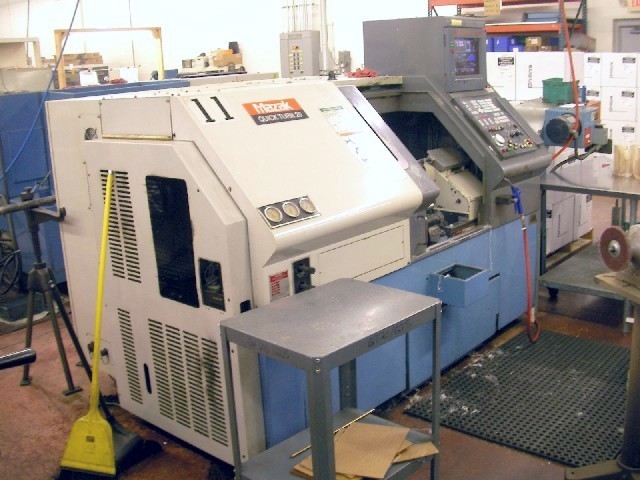

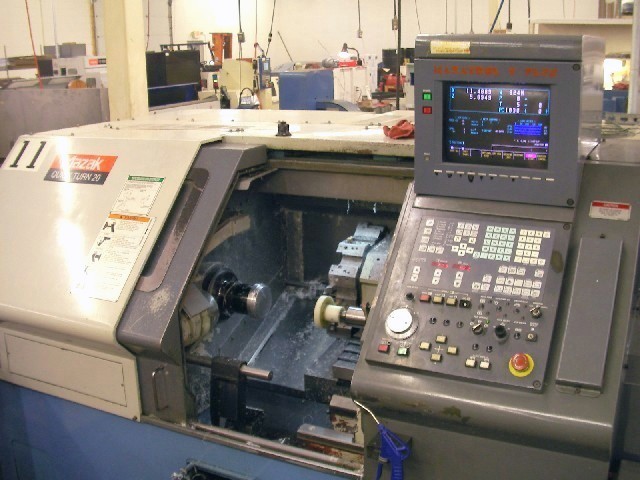

MAZAK QUICK TURN 20 CNC LATHE, T PLUS, 17 SW, 17 CC, 8 CHUCK & COLLET, TOOL EYE, '95 (4545)
Stock Number: 4545
Click to view larger photo
Request a quote on stock# 4545
| Specification | Description |
|---|
| MANUFACTURED NEW | 1995 |
| MAXIMUM SWING | 17.5" |
| MAXIMUM TURNING DIAMETER | 11.81" |
| MAXIMUM TURNING LENGTH | 17.50" |
| X AXIS TRAVEL | 7.12" |
| Z AXIS TRAVEL | 20.12" |
| RAPID TRAVERSE RATE X & Z AXES | 1200 IPM |
| SPINDLE BORE | 2.44" |
| SPINDLE SPEEDS | 50 - 5000 RPM |
| SPINDLE MOTOR | 20/15 HP |
| TURRET CAPACITY | 12 POSITION TURRET |
| TAILSTOCK BODY TRAVEL | 18.1" |
| MACHINE WEIGHT | 9400 LBS |
| APPROXIMATE DIMENSIONS | 105" x 69" x 74" |
Equipped With:

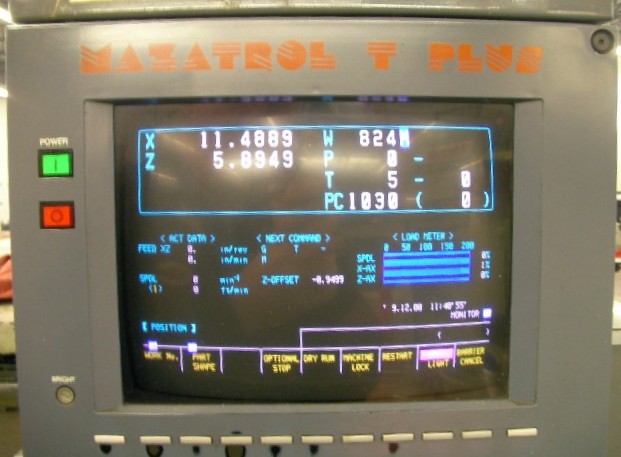

MAZATROL T-PLUS CONVERSATIONAL CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
8" 3-JAW HYDRAULIC THROUGH HOLE CHUCK WITH JAWS,
DEAD TRUE 5C COLLET CHUCK,
FULLY PROGRAMMABLE TAILSTOCK (BODY & QUILL),
TOOL EYE (AUTOMATIC TOOL PRESETTER ARM),
ALL AVAILABLE TURNING TOOL BLOCK HOLDERS,
STANDARD COOLANT SYSTEM, ALL AVAILABLE MANUALS
