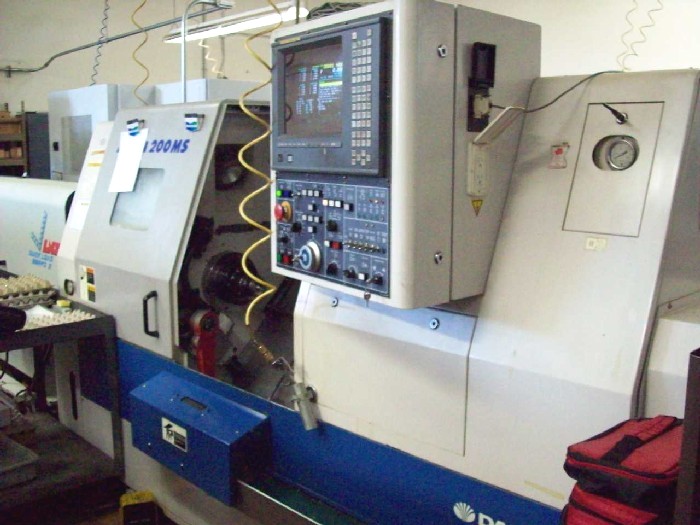

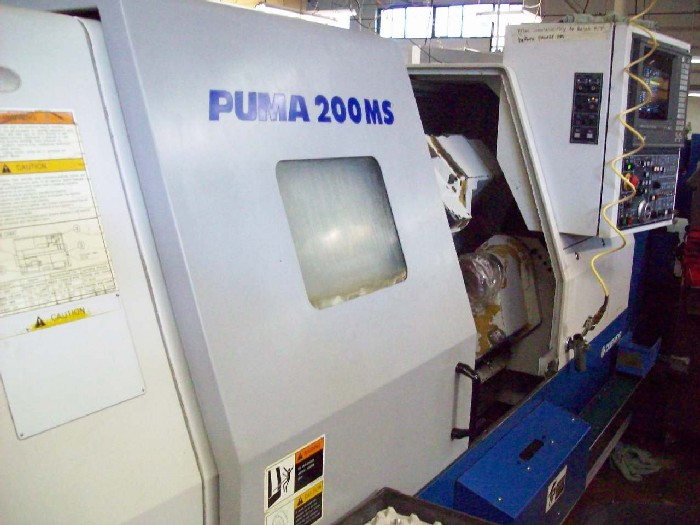

CNC TURNING CENTERS: DAEWOO PUMA 200 MSC CNC LATHE, FANUC 18T, 20 SW, LIVE TOOL, SUB-SPINDLE, APC, CHIP, '98 (4539)

DAEWOO PUMA 200 MSC CNC LATHE, FANUC 18T, 20 SW, LIVE TOOL, SUB-SPINDLE, APC, CHIP, '98 (4539)

Stock Number: 4539

CNC TURNING CENTERS: DAEWOO PUMA 200 MSC CNC LATHE, FANUC 18T, 20 SW, LIVE TOOL, SUB-SPINDLE, APC, CHIP, '98 (4539), Click to view larger photo...       CNC TURNING CENTERS: DAEWOO PUMA 200 MSC CNC LATHE, FANUC 18T, 20 SW, LIVE TOOL, SUB-SPINDLE, APC, CHIP, '98 (4539), Click to view larger photo...       CNC TURNING CENTERS: DAEWOO PUMA 200 MSC CNC LATHE, FANUC 18T, 20 SW, LIVE TOOL, SUB-SPINDLE, APC, CHIP, '98 (4539), Click to view larger photo...       CNC TURNING CENTERS: DAEWOO PUMA 200 MSC CNC LATHE, FANUC 18T, 20 SW, LIVE TOOL, SUB-SPINDLE, APC, CHIP, '98 (4539), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4539 CNC TURNING CENTERS: DAEWOO PUMA 200 MSC CNC LATHE, FANUC 18T, 20 SW, LIVE TOOL, SUB-SPINDLE, APC, CHIP, '98 (4539)Request a quote on stock# 4539
SpecificationDescription
MANUFACTURED NEW1998
SWING OVER BED20.1"
SWING OVER CARRIAGE13.0"
MAXIMUM TURNING DIAMETER13.4"
DISTANCE BETWEEN SPINDLE FACES18.9"
X AXIS TRAVEL8.7"
Z AXIS TRAVEL17.3"
C AXIS INDEXING0.001 DEG.
B AXIS TRAVEL (PICK-OFF)16.9"
RAPID TRAVERSE RATE X AXIS800 IPM
RAPID TRAVERSE RATE Z AXIS1000 IPM
SPINDLE NOSE / SPINDLE BOREA2-6 / 2.99"
MAXIMUM BAR CAPACITY2.5"
MAIN SPINDLE SPEEDS45 - 4,500 RPM
SPINDLE MOTOR20 HP
TURRET CAPACITY12 STATION TURRET
LIVE TOOLING MOTOR5 HP AC
LIVE TOOLING SPEEDS60 - 6,000 RPM
SUB SPINDLE NOSEFLAT
SUB SPINDLE SPEEDS60 - 6,000 RPM
SUB SPINDLE MOTOR7.5 HP
APPROXIMATE DIMENSIONS120" x 64" x 72"
MACHINE WEIGHT (APPROXIMATE)9,500 LBS

Equipped With:
FANUC 18T CNC CONTROL WITH 9" CRT SCREEN,
RS-232C PORT INTERFACE FOR DNC OPERATION,
2 COLLET CHUCKS INCLUDED, 5C (MAIN) 3J (SUB)
UNIVERSAL BARFEED INTERFACE, AUTO PARTS CATCHER,
TOOL PRESETTER,
SPINDLE SYNCHRONIZATION FOR SUB SPINDLE PICKOFF,
RIGHT DISCHARGE CHIP CONVEYOR, PARTS CONVEYOR,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FIVE LIVE AXIAL TOOL HOLDERS INCLUDED,
ALL AVAILABLE TOOL BLOCK HOLDERS, ALL AVAILABLE MANAULS
