CNC TURNING CENTERS: HYUNDAI HiT-15S CNC LATHE,HiTROL- EZ SEIMENS, 17 SWING, 25 CENTERS, 8 CHUCK, CHIP, '95 (4499)

HYUNDAI HiT-15S CNC LATHE,HiTROL- EZ SEIMENS, 17 SWING, 25 CENTERS, 8 CHUCK, CHIP, '95 (4499)

Stock Number: 4499

CNC TURNING CENTERS: HYUNDAI HiT-15S CNC LATHE,HiTROL- EZ SEIMENS, 17 SWING, 25 CENTERS, 8 CHUCK, CHIP, '95 (4499), Click to view larger photo...       CNC TURNING CENTERS: HYUNDAI HiT-15S CNC LATHE,HiTROL- EZ SEIMENS, 17 SWING, 25 CENTERS, 8 CHUCK, CHIP, '95 (4499), Click to view larger photo...       CNC TURNING CENTERS: HYUNDAI HiT-15S CNC LATHE,HiTROL- EZ SEIMENS, 17 SWING, 25 CENTERS, 8 CHUCK, CHIP, '95 (4499), Click to view larger photo...       CNC TURNING CENTERS: HYUNDAI HiT-15S CNC LATHE,HiTROL- EZ SEIMENS, 17 SWING, 25 CENTERS, 8 CHUCK, CHIP, '95 (4499), Click to view larger photo...       CNC TURNING CENTERS: HYUNDAI HiT-15S CNC LATHE,HiTROL- EZ SEIMENS, 17 SWING, 25 CENTERS, 8 CHUCK, CHIP, '95 (4499), Click to view larger photo...       CNC TURNING CENTERS: HYUNDAI HiT-15S CNC LATHE,HiTROL- EZ SEIMENS, 17 SWING, 25 CENTERS, 8 CHUCK, CHIP, '95 (4499), Click to view larger photo...       CNC TURNING CENTERS: HYUNDAI HiT-15S CNC LATHE,HiTROL- EZ SEIMENS, 17 SWING, 25 CENTERS, 8 CHUCK, CHIP, '95 (4499), Click to view larger photo...

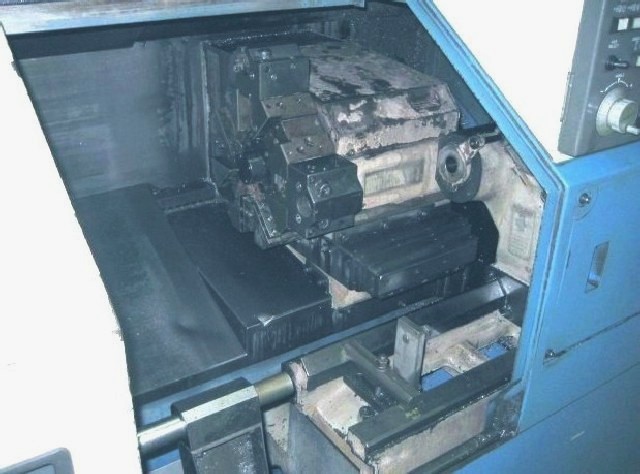

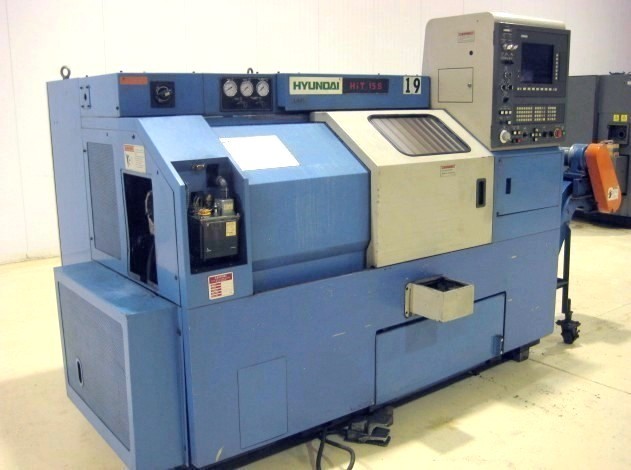

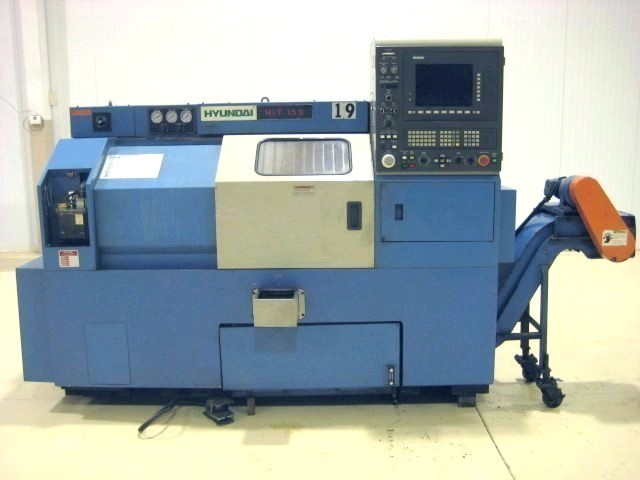

Click to view larger photo

Request A Quote On Our Stock Number: 4499 CNC TURNING CENTERS: HYUNDAI HiT-15S CNC LATHE,HiTROL- EZ SEIMENS, 17 SWING, 25 CENTERS, 8 CHUCK, CHIP, '95 (4499)Request a quote on stock# 4499
SpecificationDescription
MANUFACTURED NEW1995
SWING OVER BED17.32"
MAXIMUM TURNING DIAMETER10.0"
MAXIMUM TURNING LENGTH19"
X AXIS TRAVEL7.1"
Z AXIS TRAVEL20"
DISTANCE BETWEEN CENTERS25"
RAPID TRAVERSE RATE X & Z AXIS1181 IPM
SPINDLE BORE2.44"
MAXIMUM BAR CAPACITY2"
SPINDLE SPEEDS45 - 4,500 RPM
SPINDLE NOSEA2-6
SPINDLE MOTOR20 HP
TURRET CAPACITY8 STATION TURRET
TAILSTOCK QUILL DIAMETER/TAPER3.15" / MT #4
TAILSTOCK QUILL STROKE5.12"
TAILSTOCK BODY TRAVEL19"
DIMENSIONS, APPROX.100" x 65" x 70"
MACHINE WEIGHT, APPROX.10,000 LBS

Equipped With:

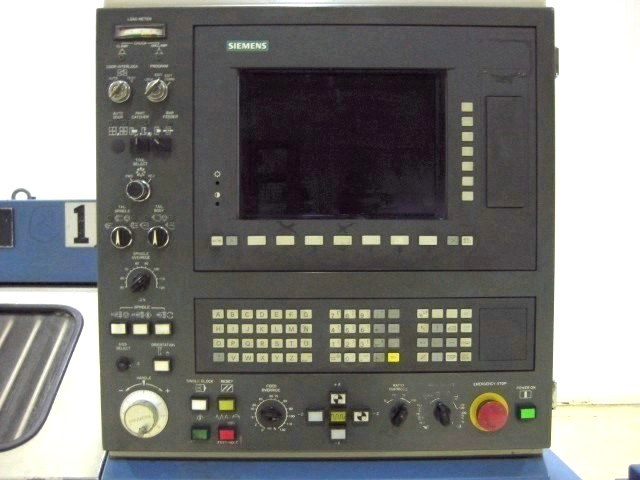

HiTROL - EZ (SIEMENS) 840C CNC CONTROL W/13" COLOR LCD MONITOR,
RS-232C PORT INTERFACE FOR DNC OPERATION,

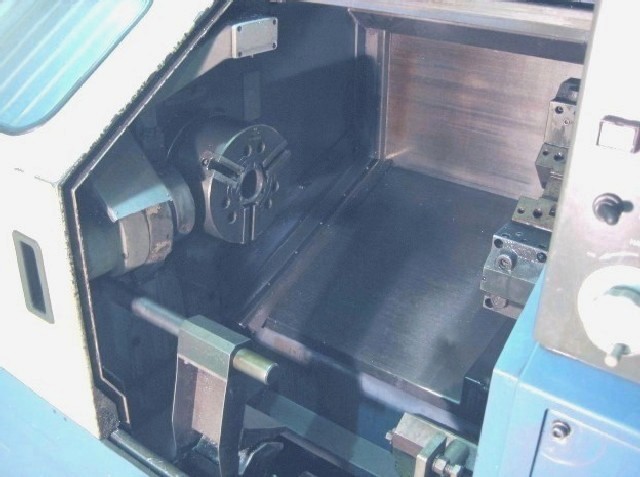

8" 3-JAW HYDRAULIC CHUCK, PARTS CATCHER,
HYDRAULIC TAILSTOCK QUILL & BODY TRAVEL,
TOOL EYE (AUTOMATIC TOOL PRESETTER ARM),

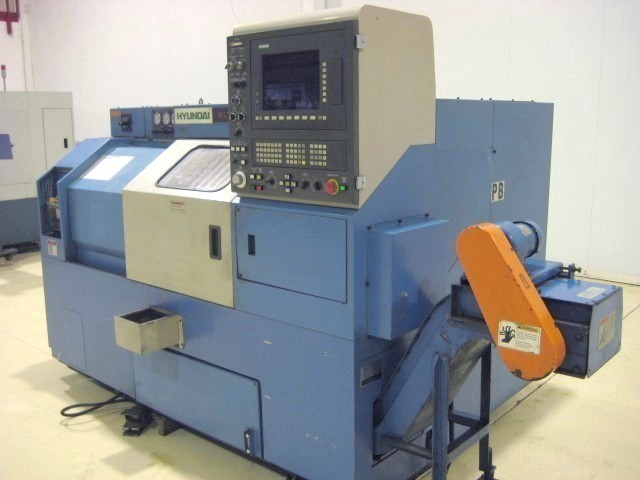

CHIP CONVEYOR (SIDE DISCHARGE),
COTOUR PROGRAMMING WITH GRAPHIS SUPPORT,
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED SPLASH GUARDING & ENCLOSURES,
***VIDEO AVAILABLE UPON REQUEST***

SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
