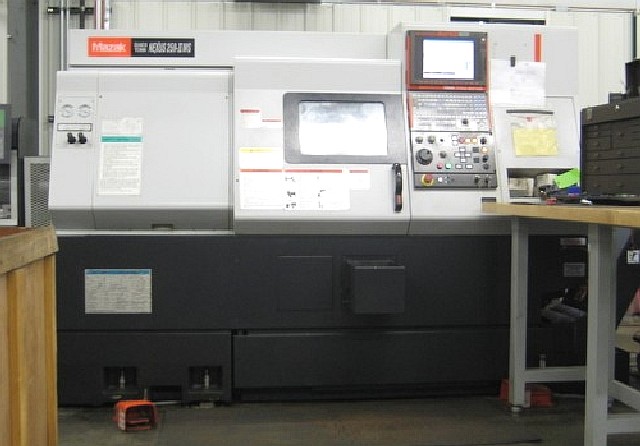

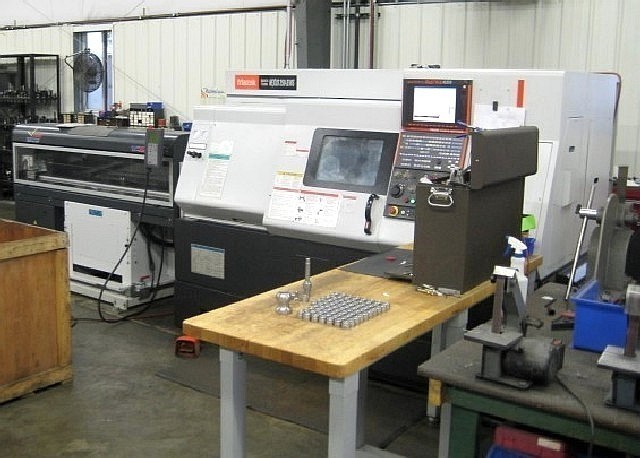

CNC TURNING CENTERS: MAZAK QUICK TURN NEXUS QTN-250 MS CNC LATHE, SUB & LIVE, 10 IN CHUCK, BAR FEEDER, 2007 (4498)

MAZAK QUICK TURN NEXUS QTN-250 MS CNC LATHE, SUB & LIVE, 10 IN CHUCK, BAR FEEDER, 2007 (4498)

Stock Number: 4498

CNC TURNING CENTERS: MAZAK QUICK TURN NEXUS QTN-250 MS CNC LATHE, SUB & LIVE, 10 IN CHUCK, BAR FEEDER, 2007 (4498), Click to view larger photo...       CNC TURNING CENTERS: MAZAK QUICK TURN NEXUS QTN-250 MS CNC LATHE, SUB & LIVE, 10 IN CHUCK, BAR FEEDER, 2007 (4498), Click to view larger photo...       CNC TURNING CENTERS: MAZAK QUICK TURN NEXUS QTN-250 MS CNC LATHE, SUB & LIVE, 10 IN CHUCK, BAR FEEDER, 2007 (4498), Click to view larger photo...       CNC TURNING CENTERS: MAZAK QUICK TURN NEXUS QTN-250 MS CNC LATHE, SUB & LIVE, 10 IN CHUCK, BAR FEEDER, 2007 (4498), Click to view larger photo...       CNC TURNING CENTERS: MAZAK QUICK TURN NEXUS QTN-250 MS CNC LATHE, SUB & LIVE, 10 IN CHUCK, BAR FEEDER, 2007 (4498), Click to view larger photo...       CNC TURNING CENTERS: MAZAK QUICK TURN NEXUS QTN-250 MS CNC LATHE, SUB & LIVE, 10 IN CHUCK, BAR FEEDER, 2007 (4498), Click to view larger photo...       CNC TURNING CENTERS: MAZAK QUICK TURN NEXUS QTN-250 MS CNC LATHE, SUB & LIVE, 10 IN CHUCK, BAR FEEDER, 2007 (4498), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4498 CNC TURNING CENTERS: MAZAK QUICK TURN NEXUS QTN-250 MS CNC LATHE, SUB & LIVE, 10 IN CHUCK, BAR FEEDER, 2007 (4498)Request a quote on stock# 4498
SpecificationDescription
MANUFACTURED NEW2007
MAXIMUM SWING26.5"
MAXIMUM TURNING DIAMETER14.75"
MAXIMUM MACHINING LENGTH21.25"
X AXIS TRAVEL9.05"
Z AXIS TRAVEL22.63"
C AXIS INDEXING0.001 DEG.
RAPID TRAVERSE RATE X & Z AXES1181 IPM
BAR CAPACITY3.03"
SPINDLE BORE3.46"
SPINDLE SPEED, MAX.4000 RPM
SPINDLE NOSEA2-8
SPINDLE MOTOR35 HP

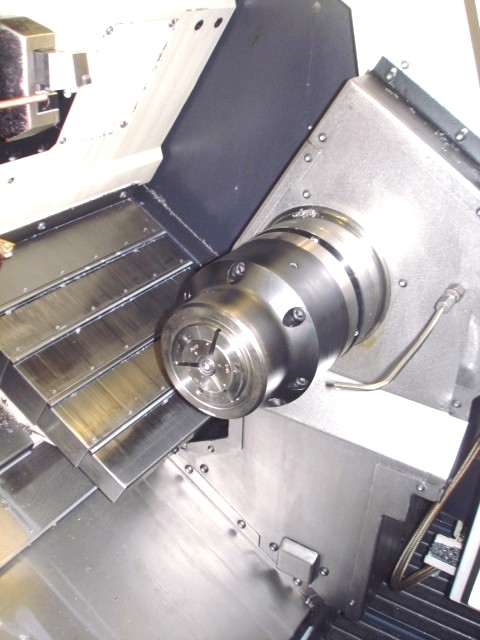

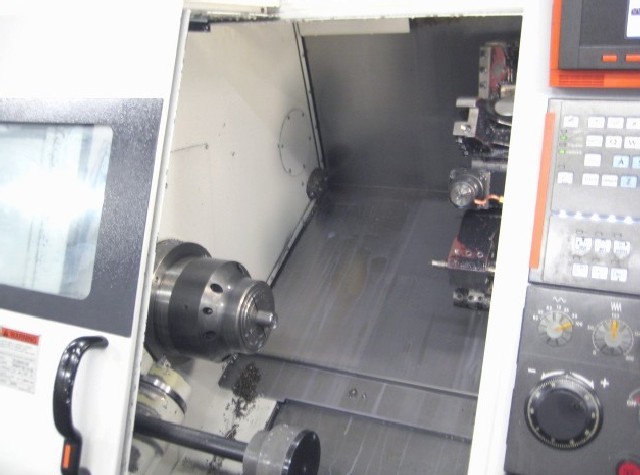

SUB-SPINDLE6" 3-JAW & COLLET CHUCK

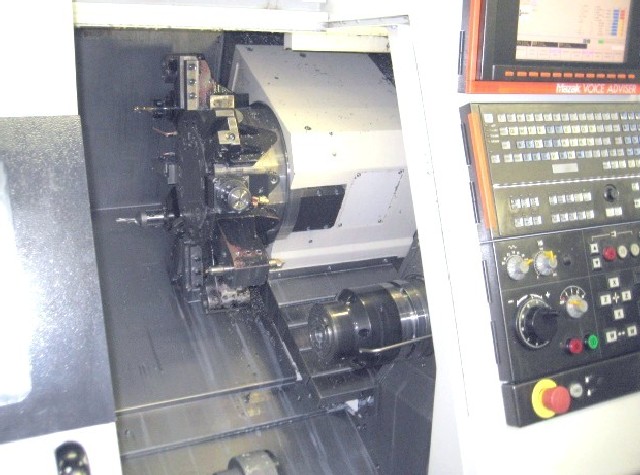

TURRET CAPACITY12 STATION TURRET
LIVE TOOLING MOTOR7.5 HP
LIVE TOOLING SPEEDS35 - 6,000 RPM
MACHINE WEIGHT (APPROX.)11,500 LBS
MACHINE DIMENSIONS (APPROX.)115" x 70" x 72"

Equipped With:
MAZATROL MATRIX CONVERSATIONAL CNC CONTROL,
RS-232C PORT INTERFACE FOR DNC OPERATION,
10" 3-JAW HYD. CHUCK (MAIN), 6" 3-JAW (SUB),
S-30 COLLET CHUCK (MAIN), S-20 COLLET CHUCK (SUB),
LIVE/REVOLVING TOOLING OPTION WITH (5) LIVE HOLDERS,
TOOL EYE (AUTOMATIC TOOL PRESETTER ARM),
CHIP CONVEYOR, TOOLING & MANUALS,

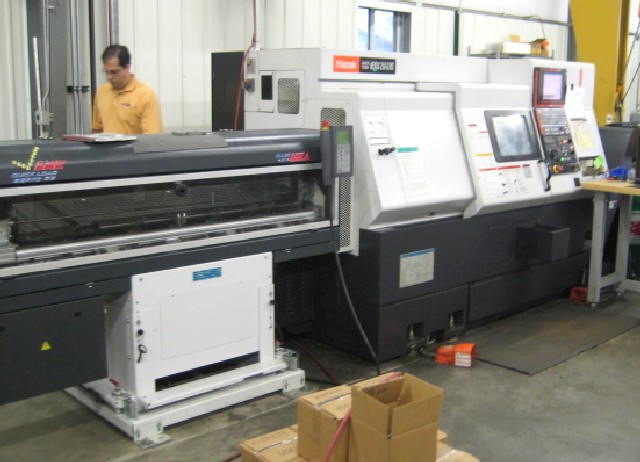

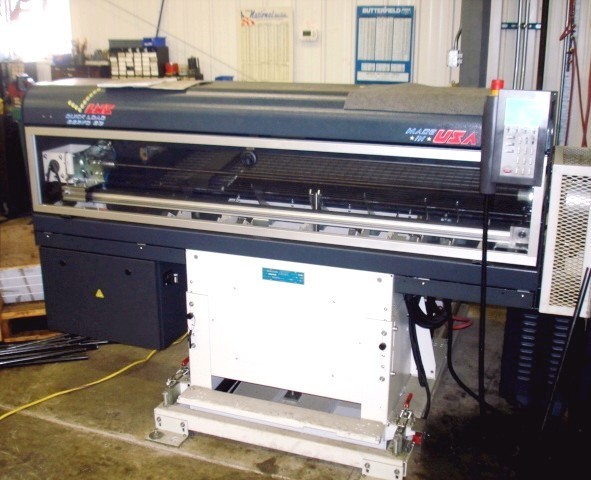

LNS QL-65 SERVO S3 MAGAZINE BAR FEEDER/LOADER,
**SECOND (SUB)SPINDLE FOR BACKSIDE FINISHING & PICK-OFF**
