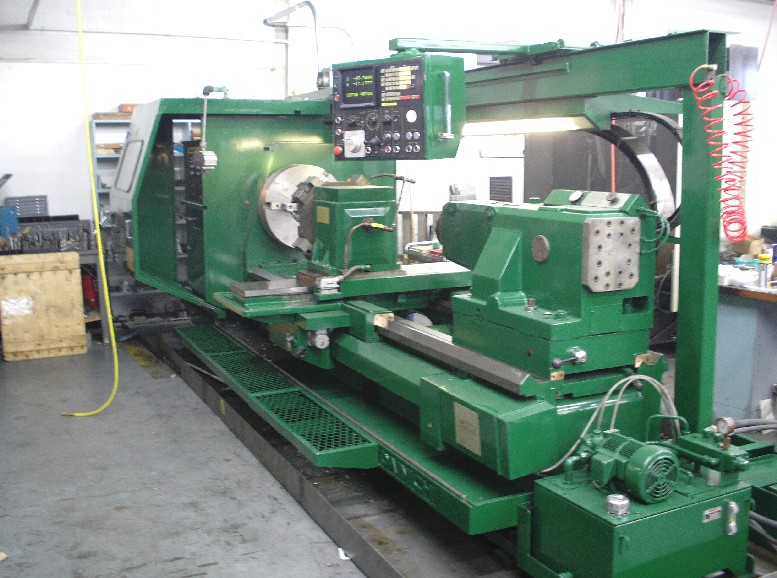

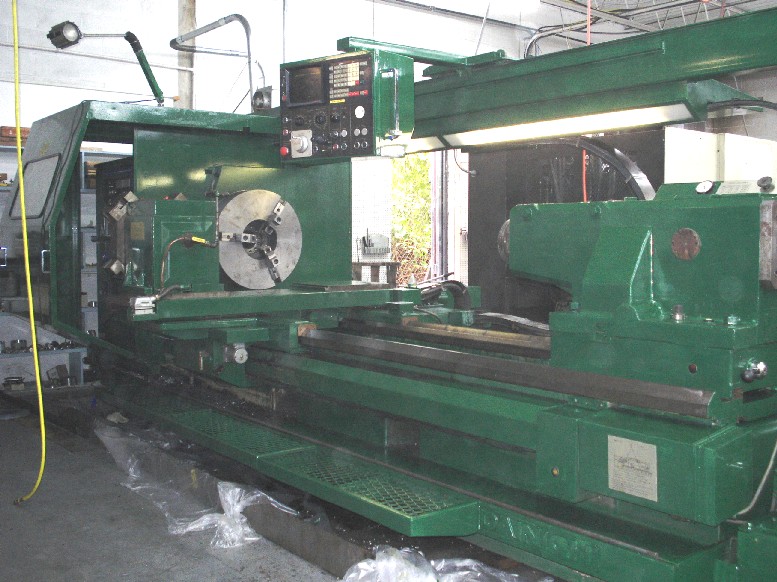

CNC TURNING CENTERS: DAINICHI M95 FLAT BED CNC LATHE, FANUC 6T, 37 SWING, 79 CENTERS, 50 HP, 4.25 IN. THRU-HOLE, 24 IN. CHK (4468)

DAINICHI M95 FLAT BED CNC LATHE, FANUC 6T, 37 SWING, 79 CENTERS, 50 HP, 4.25 IN. THRU-HOLE, 24 IN. CHK (4468)

Stock Number: 4468

CNC TURNING CENTERS: DAINICHI M95 FLAT BED CNC LATHE, FANUC 6T, 37 SWING, 79 CENTERS, 50 HP, 4.25 IN. THRU-HOLE, 24 IN. CHK (4468), Click to view larger photo...       CNC TURNING CENTERS: DAINICHI M95 FLAT BED CNC LATHE, FANUC 6T, 37 SWING, 79 CENTERS, 50 HP, 4.25 IN. THRU-HOLE, 24 IN. CHK (4468), Click to view larger photo...       CNC TURNING CENTERS: DAINICHI M95 FLAT BED CNC LATHE, FANUC 6T, 37 SWING, 79 CENTERS, 50 HP, 4.25 IN. THRU-HOLE, 24 IN. CHK (4468), Click to view larger photo...       CNC TURNING CENTERS: DAINICHI M95 FLAT BED CNC LATHE, FANUC 6T, 37 SWING, 79 CENTERS, 50 HP, 4.25 IN. THRU-HOLE, 24 IN. CHK (4468), Click to view larger photo...       CNC TURNING CENTERS: DAINICHI M95 FLAT BED CNC LATHE, FANUC 6T, 37 SWING, 79 CENTERS, 50 HP, 4.25 IN. THRU-HOLE, 24 IN. CHK (4468), Click to view larger photo...       CNC TURNING CENTERS: DAINICHI M95 FLAT BED CNC LATHE, FANUC 6T, 37 SWING, 79 CENTERS, 50 HP, 4.25 IN. THRU-HOLE, 24 IN. CHK (4468), Click to view larger photo...       CNC TURNING CENTERS: DAINICHI M95 FLAT BED CNC LATHE, FANUC 6T, 37 SWING, 79 CENTERS, 50 HP, 4.25 IN. THRU-HOLE, 24 IN. CHK (4468), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4468 CNC TURNING CENTERS: DAINICHI M95 FLAT BED CNC LATHE, FANUC 6T, 37 SWING, 79 CENTERS, 50 HP, 4.25 IN. THRU-HOLE, 24 IN. CHK (4468)Request a quote on stock# 4468
SpecificationDescription
MANUFACTURED NEW1982
SWING OVER BED37"
MAX. SWING OVER CARRIAGE22.8"
MAX. DISTANCE BETWEEN CENTERS78.8"
LOAD CAPACITY BETWEEN CENTERS13,230 LBS
MAX. BAR CAPACITY4.25"
SPINDLE SPEED RANGE6 - 1150 RPM (GEARED)
SPINDLE MOTOR50 HP

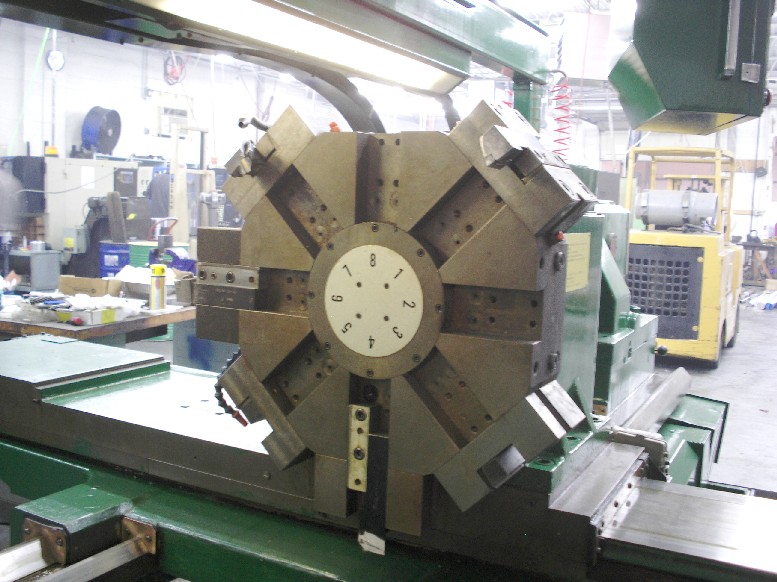

TURRET CAPACITY8, AUTO, VERTICAL
DIMENSIONS, APPROX.221"L x 96"W x 73"H
MACHINE WEIGHT, APPROX.32,500 LBS

Equipped With:

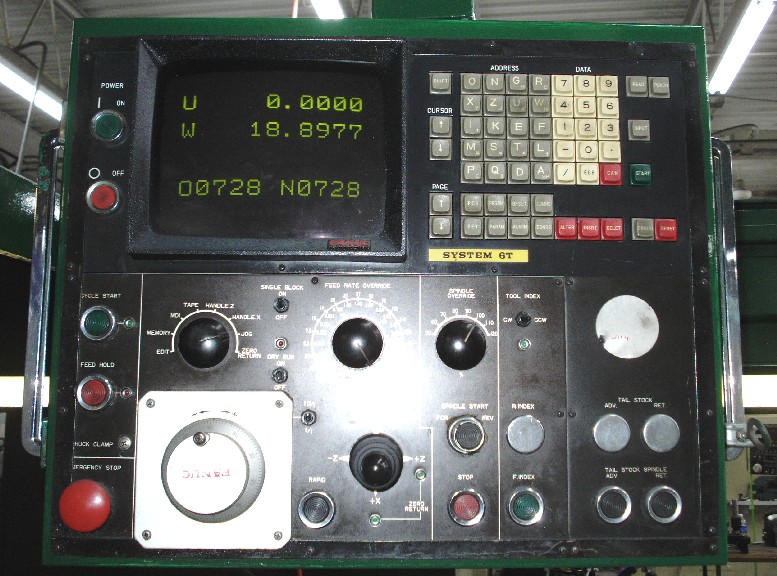

FANUC 6T CNC CONTROL W/9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION,

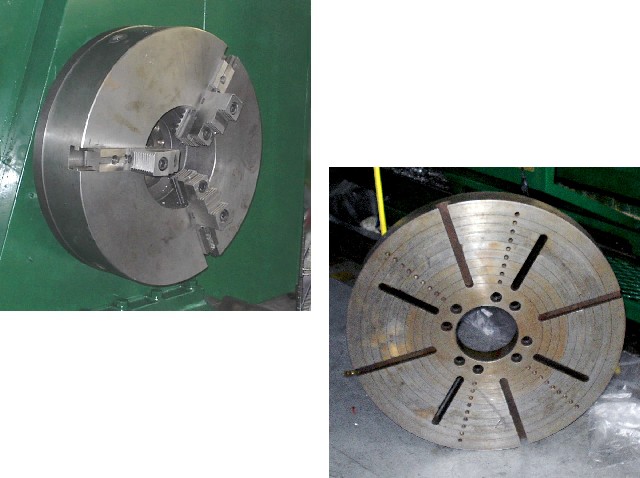

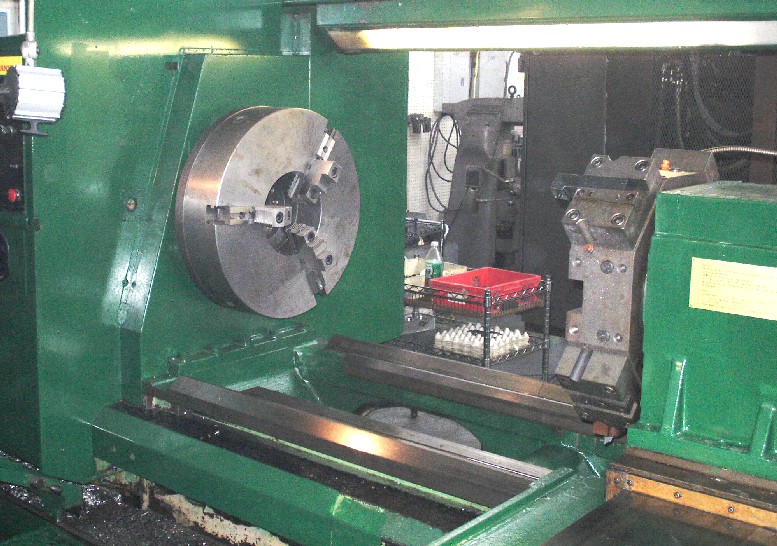

24" DIA. 3-JAW CHUCK,
32" DIA. FACE PLATE,
TAILSTOCK/QUILL ,
COOLANT SYSTEM & CHIP PAN,
***RIGID HIGH CAPACITY FLAT-BED TYPE***
