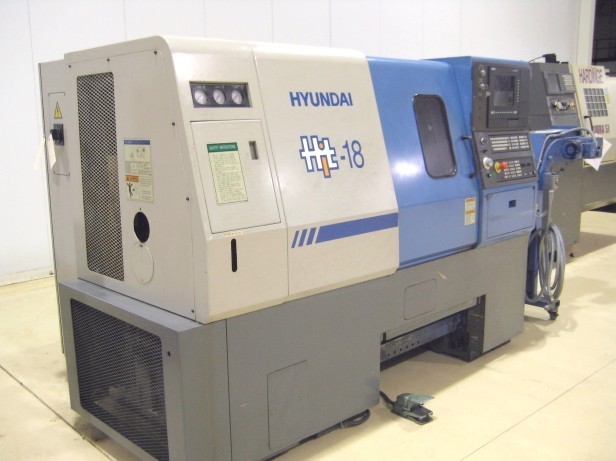

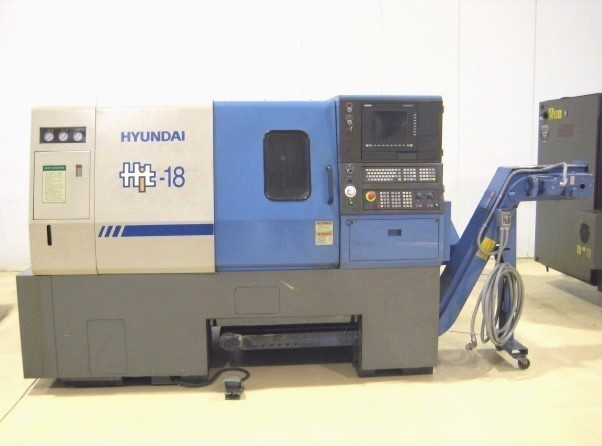

CNC TURNING CENTERS: HYUNDAI HiT-18, SIEMENS 840D, 17 SWING, 20 CENTERS, 10 CHUCK, CHIP, '02 (4417)

HYUNDAI HiT-18, SIEMENS 840D, 17 SWING, 20 CENTERS, 10 CHUCK, CHIP, '02 (4417)

Stock Number: 4417

Age: 2002

CNC TURNING CENTERS: HYUNDAI HiT-18, SIEMENS 840D, 17 SWING, 20 CENTERS, 10 CHUCK, CHIP, '02 (4417), Click to view larger photo...       CNC TURNING CENTERS: HYUNDAI HiT-18, SIEMENS 840D, 17 SWING, 20 CENTERS, 10 CHUCK, CHIP, '02 (4417), Click to view larger photo...       CNC TURNING CENTERS: HYUNDAI HiT-18, SIEMENS 840D, 17 SWING, 20 CENTERS, 10 CHUCK, CHIP, '02 (4417), Click to view larger photo...       CNC TURNING CENTERS: HYUNDAI HiT-18, SIEMENS 840D, 17 SWING, 20 CENTERS, 10 CHUCK, CHIP, '02 (4417), Click to view larger photo...       CNC TURNING CENTERS: HYUNDAI HiT-18, SIEMENS 840D, 17 SWING, 20 CENTERS, 10 CHUCK, CHIP, '02 (4417), Click to view larger photo...       CNC TURNING CENTERS: HYUNDAI HiT-18, SIEMENS 840D, 17 SWING, 20 CENTERS, 10 CHUCK, CHIP, '02 (4417), Click to view larger photo...       CNC TURNING CENTERS: HYUNDAI HiT-18, SIEMENS 840D, 17 SWING, 20 CENTERS, 10 CHUCK, CHIP, '02 (4417), Click to view larger photo...       CNC TURNING CENTERS: HYUNDAI HiT-18, SIEMENS 840D, 17 SWING, 20 CENTERS, 10 CHUCK, CHIP, '02 (4417), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4417 CNC TURNING CENTERS: HYUNDAI HiT-18, SIEMENS 840D, 17 SWING, 20 CENTERS, 10 CHUCK, CHIP, '02 (4417)Request a quote on stock# 4417
SpecificationDescription
MANUFACTURED NEW / INSTALLED2002 / 2003
SWING OVER BED17.32"
MAXIMUM CUTTING/TURNING DIA.11.0"
DISTANCE BETWEEN CENTERS30"
X AXIS TRAVEL7.09"
Z AXIS TRAVEL20.08"
RAPID TRAVERSE RATE X AXIS1181 IPM
RAPID TRAVERSE RATE Z AXIS1181 IPM
SPINDLE NOSEA2-8
SPINDLE BORE3.1"
MAXIMUM BAR CAPACITY2.76"
SPINDLE SPEEDS36 - 3,600 RPM
SPINDLE MOTOR20 HP

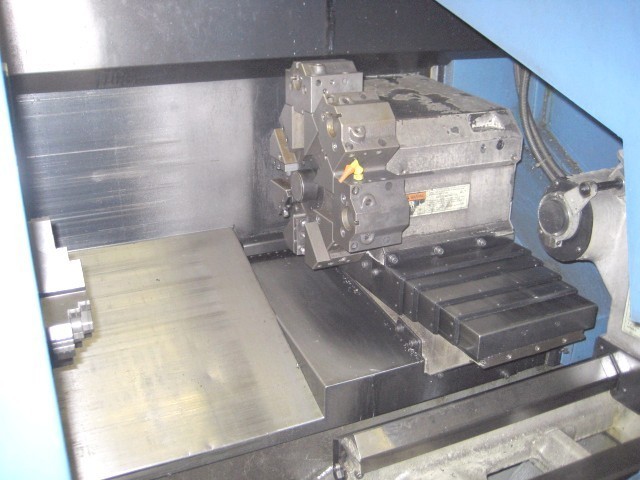

TURRET CAPACITY8 STATION TURRET
TAILSTOCK QUILL TAPERMT #4
TAILSTOCK QUILL DIAMETER3.1"
TAILSTOCK QUILL STROKE5.1"
TAILSTOCK BODY TRAVEL18.11"
DIMENSIONS, APPROX.101" x 64" x 72"
MACHINE WEIGHT, APPROX.10,500 LBS

Equipped With:

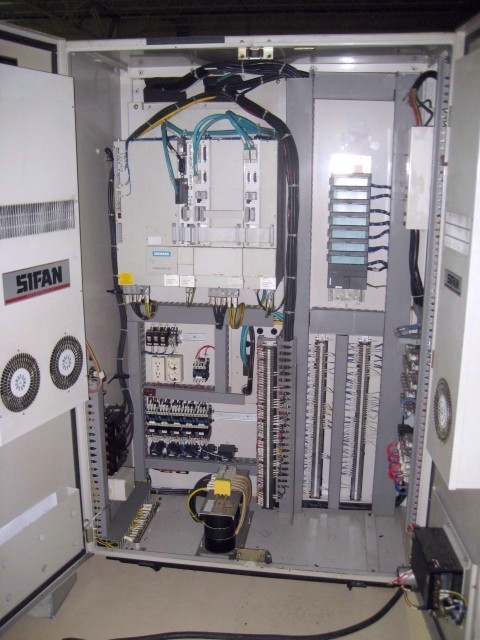

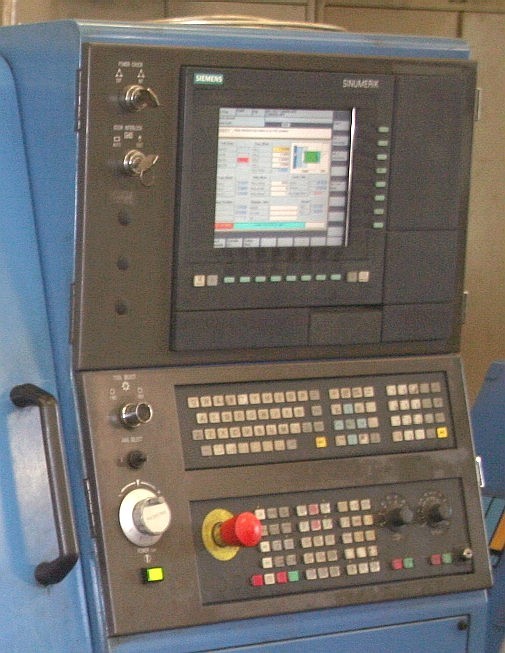

SIEMENS 840D CNC CONTROL W/COLOR CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

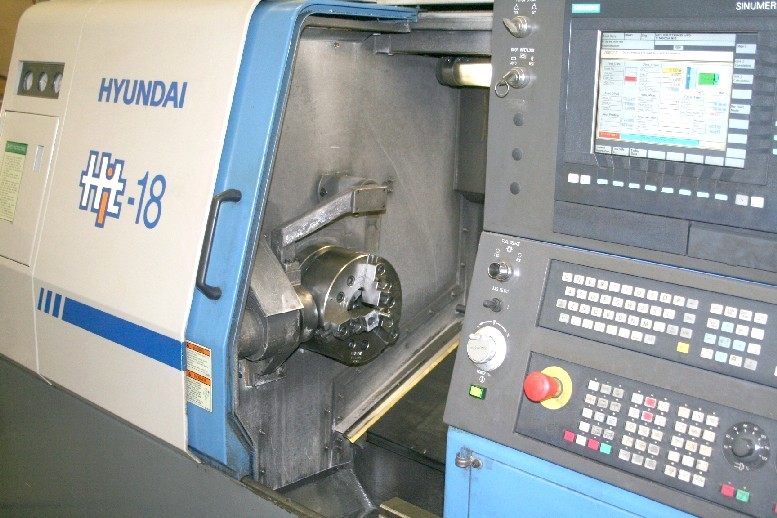

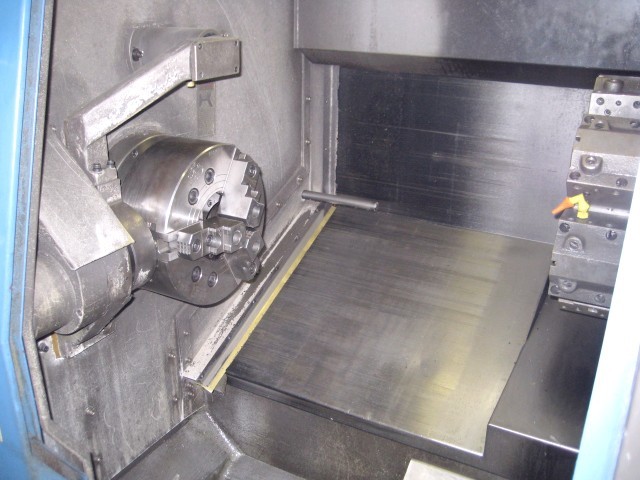

10" KITAGAWA 3-JAW HYDRAULIC CHUCK
PROGRAMMABLE HYDRAULIC TAILSTOCK QUILL & BODY TRAVEL

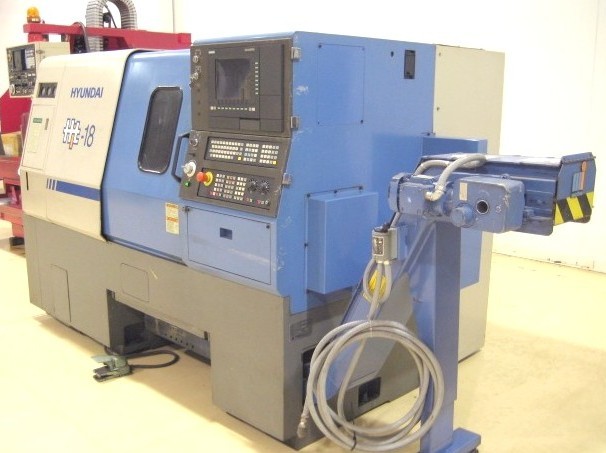

TOOL EYE (AUTOMATIC TOOL PRESETTER ARM)
CHIP CONVEYOR (RIGHT SIDE DISCHARGE)
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED SPLASH GUARDING & ENCLOSURES
**KEEP IN MIND THAT THIS MACHINE WILL ALSO SWING UP
TO A 28" PART OVER THE WAY COVERS AT 14" LONG.
***VIDEO AVAILABLE UPON REQUEST***

SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
