CNC TURNING CENTERS: HARDINGE COBRA 51 CNC LATHE, FANUC 21iT, TAILSTOCK, NICE, '01 (4314)

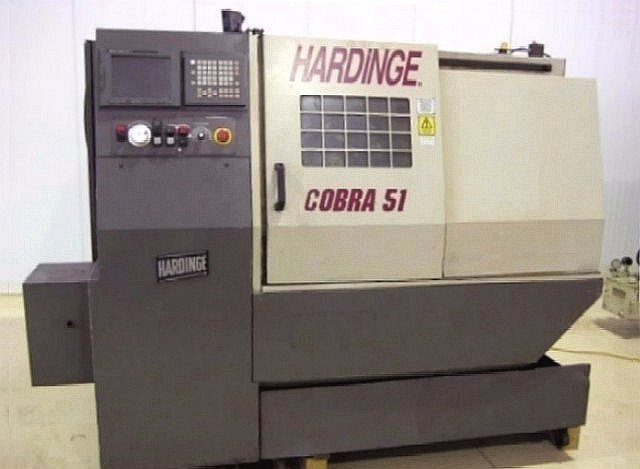

HARDINGE COBRA 51 CNC LATHE, FANUC 21iT, TAILSTOCK, NICE, '01 (4314)

Stock Number: 4314

CNC TURNING CENTERS: HARDINGE COBRA 51 CNC LATHE, FANUC 21iT, TAILSTOCK, NICE, '01 (4314), Click to view larger photo...       CNC TURNING CENTERS: HARDINGE COBRA 51 CNC LATHE, FANUC 21iT, TAILSTOCK, NICE, '01 (4314), Click to view larger photo...       CNC TURNING CENTERS: HARDINGE COBRA 51 CNC LATHE, FANUC 21iT, TAILSTOCK, NICE, '01 (4314), Click to view larger photo...       CNC TURNING CENTERS: HARDINGE COBRA 51 CNC LATHE, FANUC 21iT, TAILSTOCK, NICE, '01 (4314), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4314 CNC TURNING CENTERS: HARDINGE COBRA 51 CNC LATHE, FANUC 21iT, TAILSTOCK, NICE, '01 (4314)Request a quote on stock# 4314
SpecificationDescription
INSTALLED NEW2000
MAXIMUM SWING21"
MAXIMUM TURNING DIAMETER8.25"
MAXIMUM TURNING LENGTH14"
X AXIS TRAVEL7.75"
Z AXIS TRAVEL14"
RAPID TRAVERSE RATE X AXIS472 IPM
RAPID TRAVERSE RATE Z AXIS787 IPM
MAXIMUM BAR CAPACITY2.00"
SPINDLE NOSEA2-6
SPINDLE SPEEDS100 - 4,500 RPM
SPINDLE MOTOR20 HP

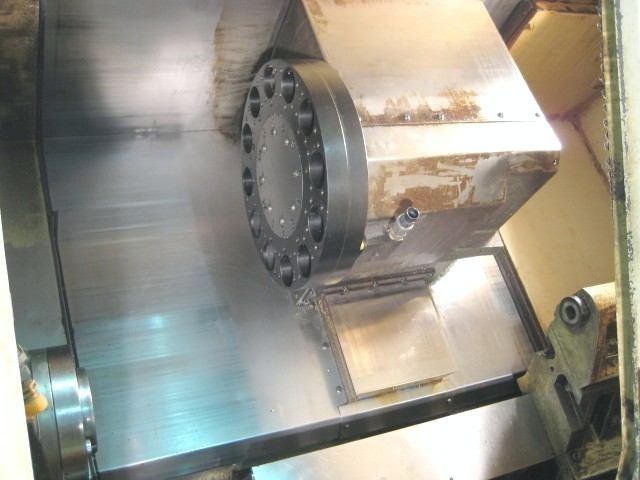

TURRET CAPACITY12 STATIONS
TAILSTOCK QUILL TAPERMT #3
TAILSTOCK BODY TRAVEL (MANUAL)22.0"
TAILSTOCK QUILL TRAVEL4.0"
DIMENSIONS, APPROX.129" x 66" x 68"
WEIGHT, APPROX.8,000 LBS

Equipped With:

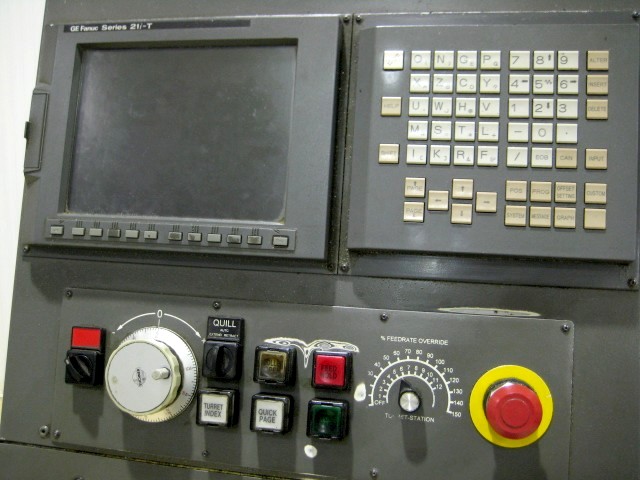

GE FANUC 21iT CNC CONTROL WITH 9" CRT SCREEN,
RS-232C PORT INTERFACE FOR DNC OPERATION,
20C COLLET NOSE, PROGRAMMABLE TAILSTOCK QUILL,
STANDARD COOLANT SYSTEM
***VIDEO AVAILABLE UPON REQUEST***

SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
