CNC TURNING CENTERS: HITACHI SEIKI HITEC 20SII CNC LATHE, SEICOS MULTI, 5C COLLET, TAIL, '90 (4300)

HITACHI SEIKI HITEC 20SII CNC LATHE, SEICOS MULTI, 5C COLLET, TAIL, '90 (4300)

Stock Number: 4300

Age: 1990

CNC TURNING CENTERS: HITACHI SEIKI HITEC 20SII CNC LATHE, SEICOS MULTI, 5C COLLET, TAIL, '90 (4300), Click to view larger photo...       CNC TURNING CENTERS: HITACHI SEIKI HITEC 20SII CNC LATHE, SEICOS MULTI, 5C COLLET, TAIL, '90 (4300), Click to view larger photo...       CNC TURNING CENTERS: HITACHI SEIKI HITEC 20SII CNC LATHE, SEICOS MULTI, 5C COLLET, TAIL, '90 (4300), Click to view larger photo...       CNC TURNING CENTERS: HITACHI SEIKI HITEC 20SII CNC LATHE, SEICOS MULTI, 5C COLLET, TAIL, '90 (4300), Click to view larger photo...       CNC TURNING CENTERS: HITACHI SEIKI HITEC 20SII CNC LATHE, SEICOS MULTI, 5C COLLET, TAIL, '90 (4300), Click to view larger photo...       CNC TURNING CENTERS: HITACHI SEIKI HITEC 20SII CNC LATHE, SEICOS MULTI, 5C COLLET, TAIL, '90 (4300), Click to view larger photo...       CNC TURNING CENTERS: HITACHI SEIKI HITEC 20SII CNC LATHE, SEICOS MULTI, 5C COLLET, TAIL, '90 (4300), Click to view larger photo...       CNC TURNING CENTERS: HITACHI SEIKI HITEC 20SII CNC LATHE, SEICOS MULTI, 5C COLLET, TAIL, '90 (4300), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4300 CNC TURNING CENTERS: HITACHI SEIKI HITEC 20SII CNC LATHE, SEICOS MULTI, 5C COLLET, TAIL, '90 (4300)Request a quote on stock# 4300
SpecificationDescription
APPROXIMATE AGE1990
MAXIMUM SWING OVER BED15"
MAXIMUM TURNING DIAMETER8"
MAXIMUM TURNING LENGTH15"
X AXIS TRAVEL7.9"
Z AXIS TRAVEL15.7"
RAPID TRAVERSE RATE X AXIS787 IPM
RAPID TRAVERSE RATE Z AXIS945 IPM
SPINDLE BORE2.3"
SPINDLE NOSEA2-6
SPINDLE SPEEDS30 - 5,000 RPM
SPINDLE MOTOR15 HP

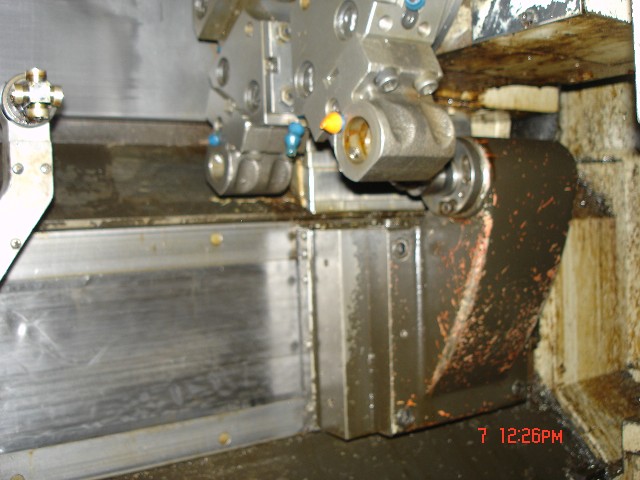

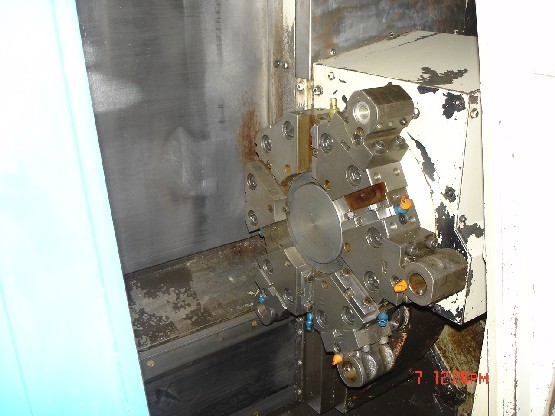

TURRET CAPACITY10 STATION TURRET
TURRET INDEX TIME (PER STATION)0.1 SECONDS
TAILSTOCK QUILL TAPERMT #5
TAILSTOCK TRAVEL15.7"
APPROXIMATE DIMENSIONS125" x 70" x 65"
MACHINE WEIGHT (APPROXIMATE)9,500 LBS

Equipped With:

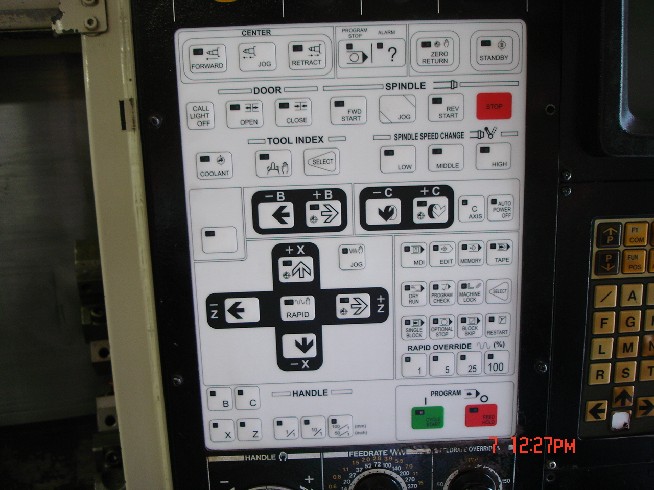

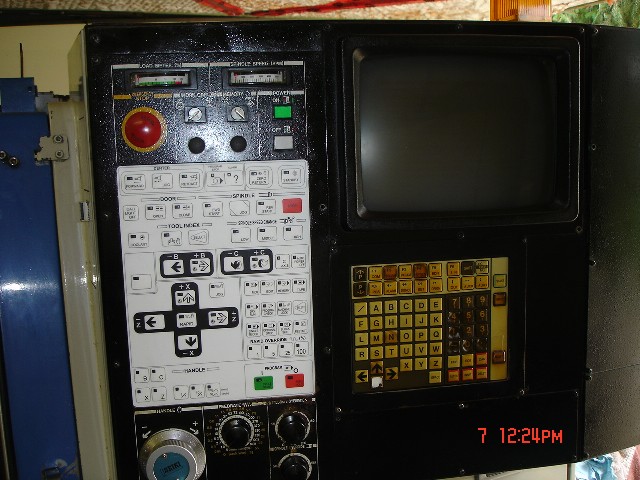

SEICOS MULTI COVERSATIONAL CONTROL WITH 14" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

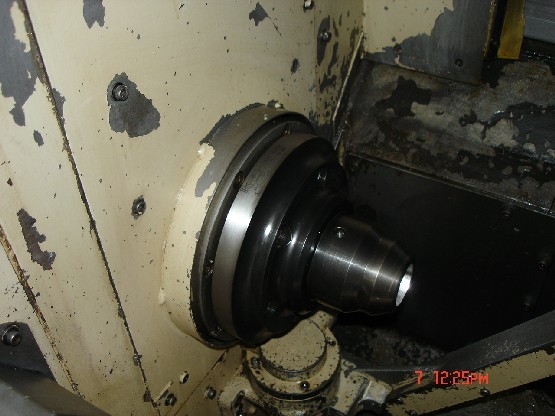

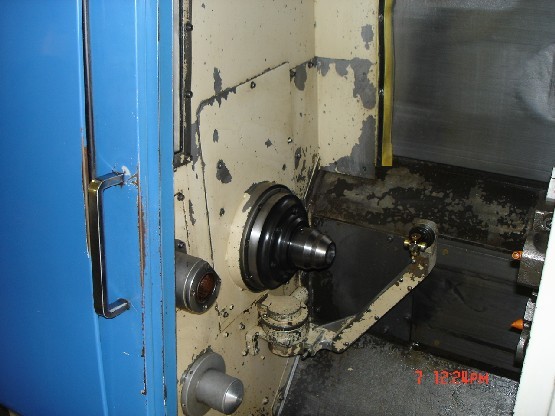

5C ROYAL COLLET CHUCK, Q-SETTER (TOOL PRESETTER),
PROGRAMMABLE TAILSTOCK
STANDARD COOLANT SYSTEM WITH TANK & PUMP
ALL AVAILABLE TOOL HOLDERS, ALL AVAILABLE MANAULS

SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
