CNC TURNING CENTERS: DAEWOO PUMA 8S CNC LATHE, FANUC OTC, 19.7 SWING, 20.9 CENTERS, CHIP, '96 (4242)

DAEWOO PUMA 8S CNC LATHE, FANUC OTC, 19.7 SWING, 20.9 CENTERS, CHIP, '96 (4242)

Stock Number: 4242

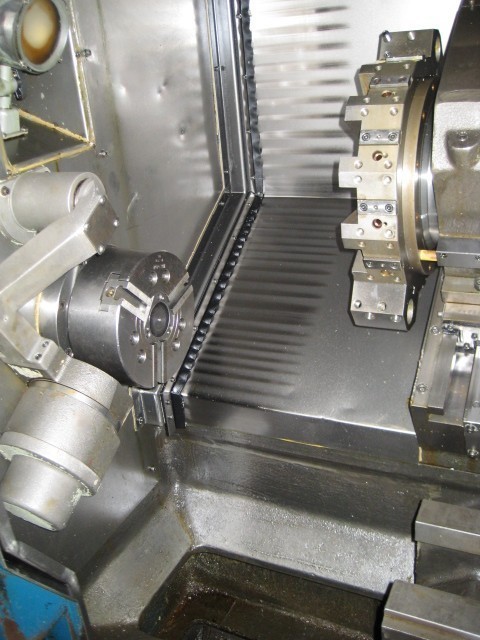

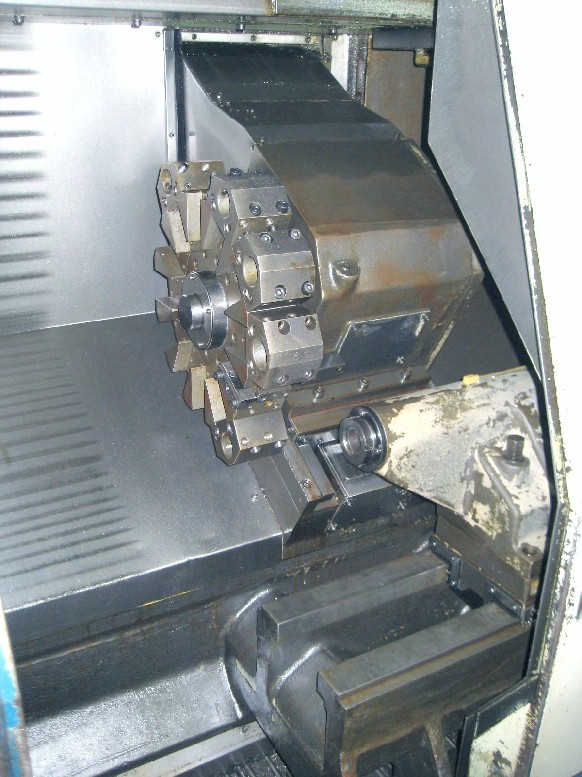

CNC TURNING CENTERS: DAEWOO PUMA 8S CNC LATHE, FANUC OTC, 19.7 SWING, 20.9 CENTERS, CHIP, '96 (4242), Click to view larger photo...       CNC TURNING CENTERS: DAEWOO PUMA 8S CNC LATHE, FANUC OTC, 19.7 SWING, 20.9 CENTERS, CHIP, '96 (4242), Click to view larger photo...       CNC TURNING CENTERS: DAEWOO PUMA 8S CNC LATHE, FANUC OTC, 19.7 SWING, 20.9 CENTERS, CHIP, '96 (4242), Click to view larger photo...       CNC TURNING CENTERS: DAEWOO PUMA 8S CNC LATHE, FANUC OTC, 19.7 SWING, 20.9 CENTERS, CHIP, '96 (4242), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4242 CNC TURNING CENTERS: DAEWOO PUMA 8S CNC LATHE, FANUC OTC, 19.7 SWING, 20.9 CENTERS, CHIP, '96 (4242)Request a quote on stock# 4242
SpecificationDescription
DATE OF MANUFACTURE2/1996
MAXIMUM SWING OVER BED19.7"
SWING OVER CARRIAGE12.2"
MAXIMUM TURNING DIAMETER14.1"
MAXIMUM TURNING LENGTH14.6"
X AXIS TRAVEL7.9"
Z AXIS TRAVEL15.0"
RAPID TRAVERSE RATE X AXIS787 IPM
RAPID TRAVERSE RATE Z AXIS945 IPM
SPINDLE BORE2.4"
MAXIMUM BAR CAPACITY2"
SPINDLE SPEEDS50 - 5,000 RPM
SPINDLE MOTOR20 HP
TURRET CAPACITY10 STATIONS
TAILSTOCK QUILL TAPERMT #4
TAILSTOCK QUILL DIAMETER2.6"
TAILSTOCK QUILL STROKE3.9"
APPROXIMATE DIMENSIONS132" x 60" x 68"
MACHINE WEIGHT (APPROXIMATE)9,500 LBS

Equipped With:
FANUC 0TC CNC CONTROL WITH 9" CRT SCREEN
RS-232C PORT INTERFACE FOR DNC OPERATION
8" 3-JAW HYDRAULIC THRU HOLE CHUCK W/JAWS
TAILSTOCK, TOOL EYE / TOOL PRESETTER ARMATURE
TURBO RIGHT HAND DISCHARGE CHIP CONVEYOR
STANDARD COOLANT SYSTEM WITH TANK & PUMP
ALL AVAILABLE TOOL BLOCK HOLDERS & MANUALS
***VIDEO AVAILABLE UPON REQUEST***

SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
