CNC TURNING CENTERS: FEMCO WNCL-30/60 CNC LATHE, FANUC OT, 21 SWING, 4000 RPM, 28 CENTERS, AUTOBAR 400 BARFEED '98 (4226)

FEMCO WNCL-30/60 CNC LATHE, FANUC OT, 21 SWING, 4000 RPM, 28 CENTERS, AUTOBAR 400 BARFEED '98 (4226)

Stock Number: 4226

CNC TURNING CENTERS: FEMCO WNCL-30/60 CNC LATHE, FANUC OT, 21 SWING, 4000 RPM, 28 CENTERS, AUTOBAR 400 BARFEED '98 (4226), Click to view larger photo...       CNC TURNING CENTERS: FEMCO WNCL-30/60 CNC LATHE, FANUC OT, 21 SWING, 4000 RPM, 28 CENTERS, AUTOBAR 400 BARFEED '98 (4226), Click to view larger photo...       CNC TURNING CENTERS: FEMCO WNCL-30/60 CNC LATHE, FANUC OT, 21 SWING, 4000 RPM, 28 CENTERS, AUTOBAR 400 BARFEED '98 (4226), Click to view larger photo...       CNC TURNING CENTERS: FEMCO WNCL-30/60 CNC LATHE, FANUC OT, 21 SWING, 4000 RPM, 28 CENTERS, AUTOBAR 400 BARFEED '98 (4226), Click to view larger photo...       CNC TURNING CENTERS: FEMCO WNCL-30/60 CNC LATHE, FANUC OT, 21 SWING, 4000 RPM, 28 CENTERS, AUTOBAR 400 BARFEED '98 (4226), Click to view larger photo...       CNC TURNING CENTERS: FEMCO WNCL-30/60 CNC LATHE, FANUC OT, 21 SWING, 4000 RPM, 28 CENTERS, AUTOBAR 400 BARFEED '98 (4226), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4226 CNC TURNING CENTERS: FEMCO WNCL-30/60 CNC LATHE, FANUC OT, 21 SWING, 4000 RPM, 28 CENTERS, AUTOBAR 400 BARFEED '98 (4226)Request a quote on stock# 4226
SpecificationDescription
LATHE NEW1998
MAX SWING OVER BED21.26"
MAX TURNING LENGTH24.41"
MAX TURNING DIAMETER12.50"
SPINDLE NOSEA2-8
SPINDLE BORE/BAR CAPACITY3.43"/2.95"
SPINDLE SPEED4,000 RPM
SPINDLE MOTOR25 HP
X AXIS TRAVEL5.91"
Z AXIS TRAVEL24.8"
TAILSTOCK QUILL DIAMETER2.95"
TAILSTOCK TRAVEL3.94"
TAILSTOCK TAPERMT#5
MACHINE DIMENSIONS114" x 77" x 75"H
MACHINE WEIGHT12,600 LBS

Equipped With:

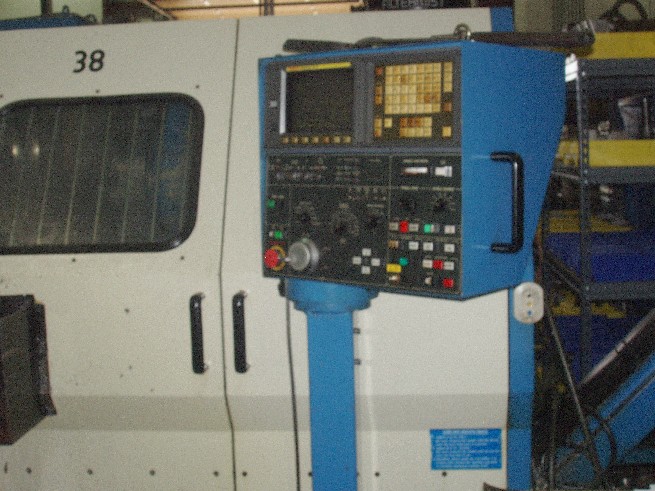

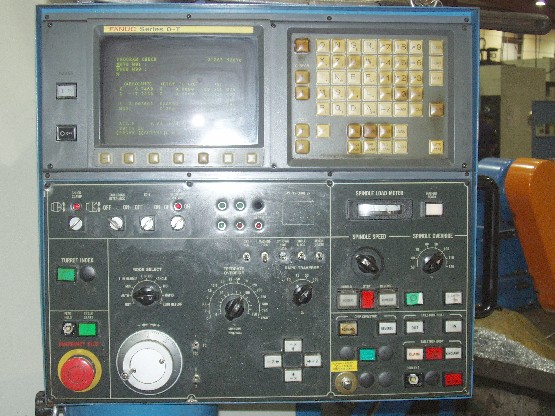

FANUC OT CNC CONTROL WITH CRT
RS-232 PORT FOR DNC OPERATION
AUTOBAR 400 BARFEEDER

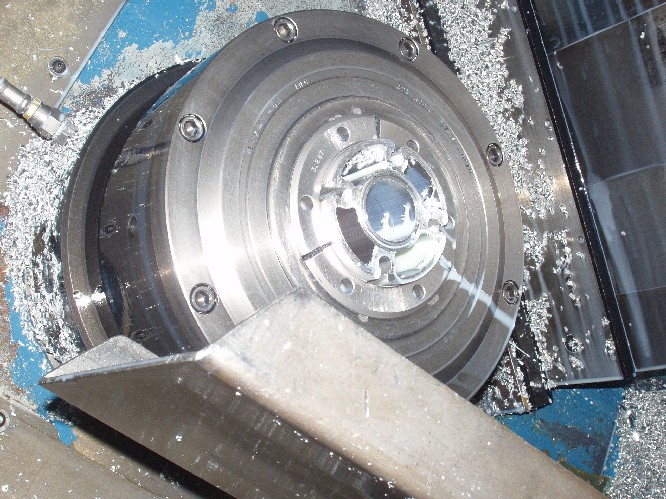

FLEX-E-ON COLLET CHUCK, PARTS CATCHER
SIDE DISCHARGE CHIP CONVEYOR
ALL AVAILABLE MANUALS

SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
