CNC TURNING CENTERS: MAZAK SQT-15M MARK II, T-PLUS, LIVE TOOLS,20 SW, 20 CC, 8.00, '96 (3997)

MAZAK SQT-15M MARK II, T-PLUS, LIVE TOOLS,20 SW, 20 CC, 8.00", '96 (3997)

Stock Number: 3997

Age: 1995

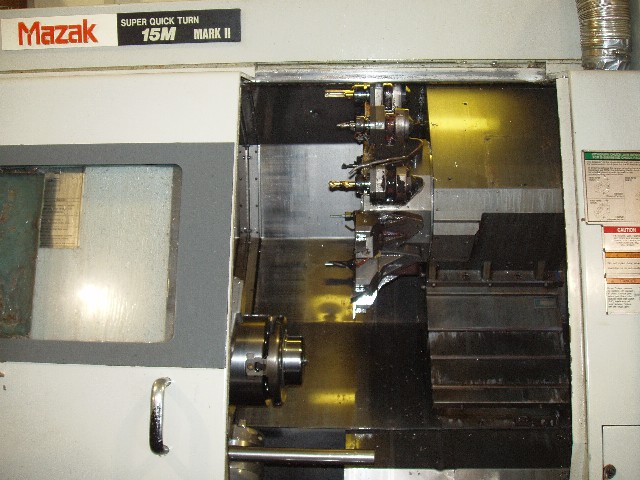

CNC TURNING CENTERS: MAZAK SQT-15M MARK II, T-PLUS, LIVE TOOLS,20 SW, 20 CC, 8.00, '96 (3997), Click to view larger photo...       CNC TURNING CENTERS: MAZAK SQT-15M MARK II, T-PLUS, LIVE TOOLS,20 SW, 20 CC, 8.00, '96 (3997), Click to view larger photo...       CNC TURNING CENTERS: MAZAK SQT-15M MARK II, T-PLUS, LIVE TOOLS,20 SW, 20 CC, 8.00, '96 (3997), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 3997 CNC TURNING CENTERS: MAZAK SQT-15M MARK II, T-PLUS, LIVE TOOLS,20 SW, 20 CC, 8.00, '96 (3997)Request a quote on stock# 3997
SpecificationDescription
MANUFACTURED6/1995
MAXIMUM SWING20.9"
MAXIMUM TURNING DIAMETER11.75"
DISTANCE BETWEEN SPINDLES22.7"
X AXIS TRAVEL7.12"
Z AXIS TRAVEL24.5"
C AXIS INDEXING0.001�
RAPID TRAVERSE RATE X & Z AXES1181 IPM
BAR CAPACITY2.0"
SPINDLE BORE2.40"
SPINDLE NOSEA2-8
SPINDLE SPEEDS5,000 RPM
SPINDLE MOTOR25 HP
TAILSTOCK BODY STROKE15.75"
TURRET CAPACITY12 STATION TURRET
LIVE TOOLING MOTOR4.1 HP
LIVE TOOLING SPEEDS120- 3,000 RPM
MACHINE WEIGHT (APPROX.)15,000 LBS

Equipped With:
MAZATROL T-PLUS CONVERSATIONAL CNC CONTROL
RS-232C PORT INTERFACE FOR DNC OPERATION
GRIFFO BROTHERS CAMLINE CAM SOFTWARE
COMPUTER, CABLES AND PRINTER
FILTER MIST UNIT
8.00" 3 JAW CHUCK, PARTS CATCHER
TOOL EYE (AUTOMATIC TOOL PRESETTER ARM)
RIGHT HAND DISCHARGE LIFT-UP TYPE CHIP CONVEYOR
ALL AVAILABLE MANUALS AND TOOLING
